Xerox 8850 Service Manual

03/2003
4-127
8850/ 510DP
REP 10.6
Repairs and Adjustments
3. (Figure 2): Access the Thermal Fuse (F1) wires.

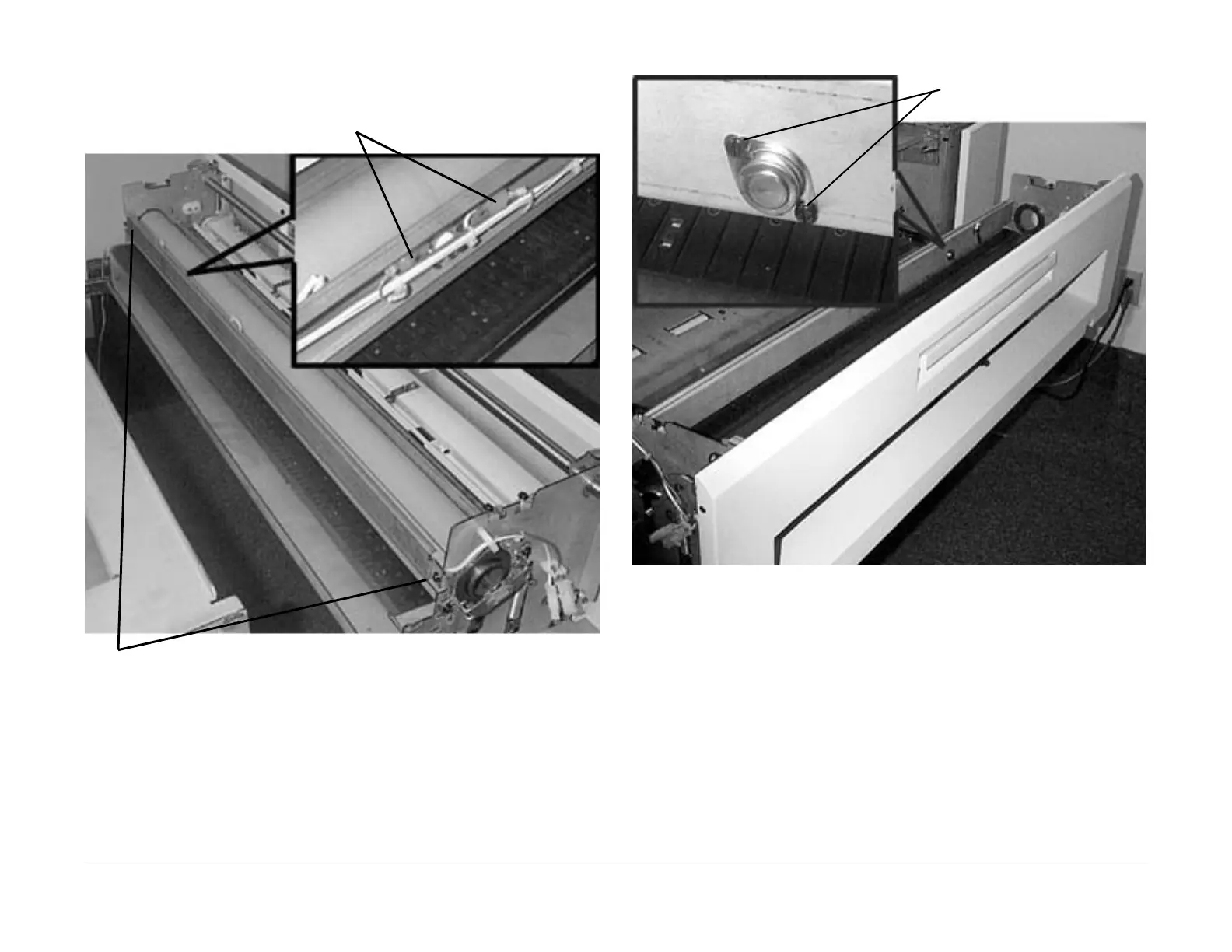

Figure 2 Accessing the Thermal Fuse (F1)
4. (Figure 3): Remove the Thermal Fuse (F1).
Figure 3 Removing the Thermal Fuse (F1)
1
Remove the two screws, one
at each end
2
Remove the Cover
3
Disconnect the wires from the Ther-
mal Fuse (F1)
1
Remove the two screws and
remove the SEnsor
