Xerox 8850 - 10.5 Fuser (Web Oiler) Components (Part 4 of 4)

03/2003
5-37
8850/ 510DP
PL 10.5
Parts Lists

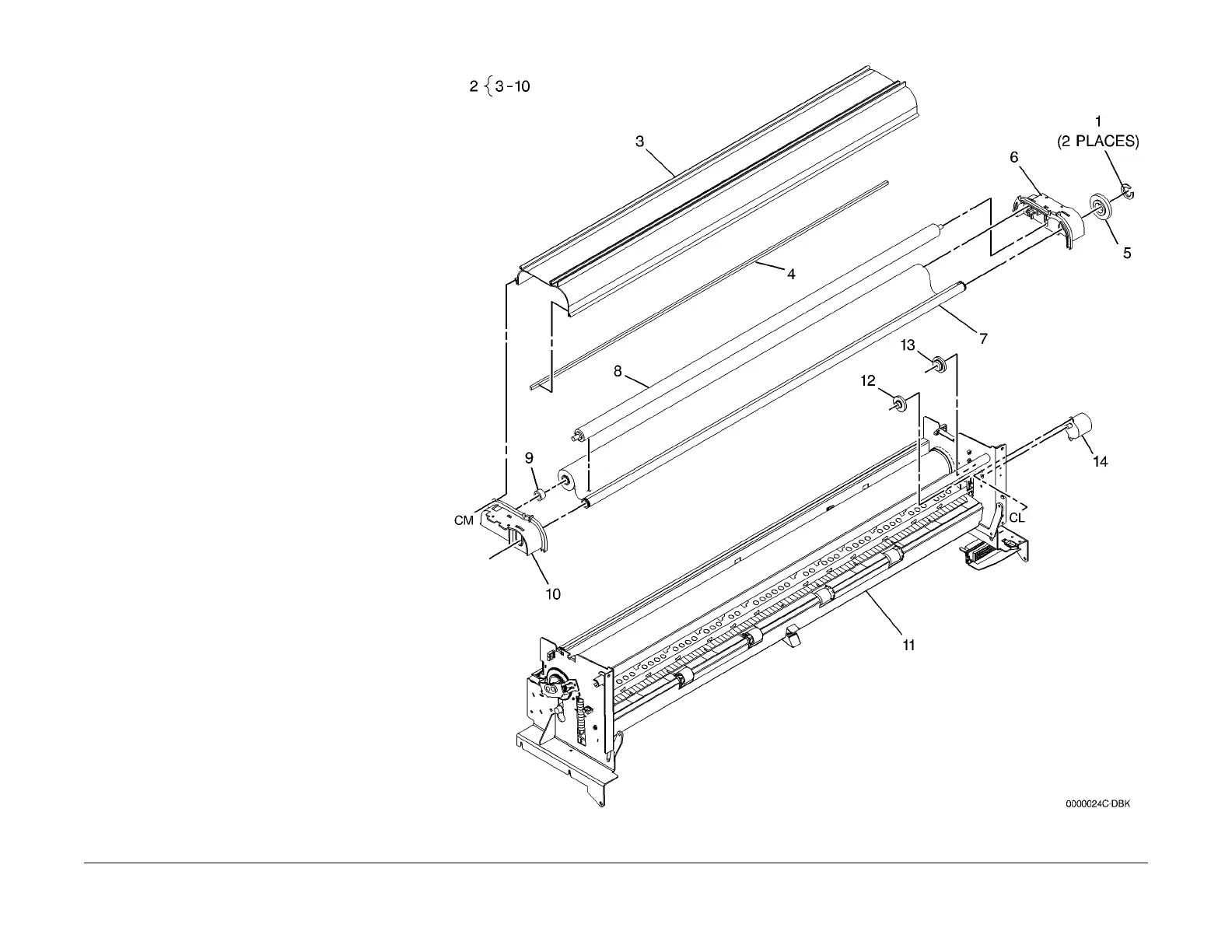

PL 10.5 Fuser (Web Oiler)
Components (Part 4 of 4)
Item Part Description
1 028E14580 Web Retainer Clip
2 094K04324 Web Oiler Assembly (TAG 13) (REP
10.3)
3 – Web Oiler Cover (P/O PL 10.1 Item
7)
4 055E48470 Fuser Long Seal
5 007E69360 Gear (48T)
6 – Support (Drive Side) (P/O PL 10.1
Item 7)
7 022K79002 Web Oiler (REP 10.5)
8 022K79010 Oiler Pressure Roll
9 – Roll Take-Up Spring (P/O PL 10.1
Item 7)
10 – Support (P/O PL 10.1 Item 7)
11 – Fuser Housing (P/O PL 10.1 Item
7)
12 007E69390 Gear (16T)
13 007E69380 Gear (12T)
14 127E13610 Web Oiler Drive Motor
