Xerox 8850 Service Manual

03/2003
5-15
8850/ 510DP
PL 7.4
Parts Lists

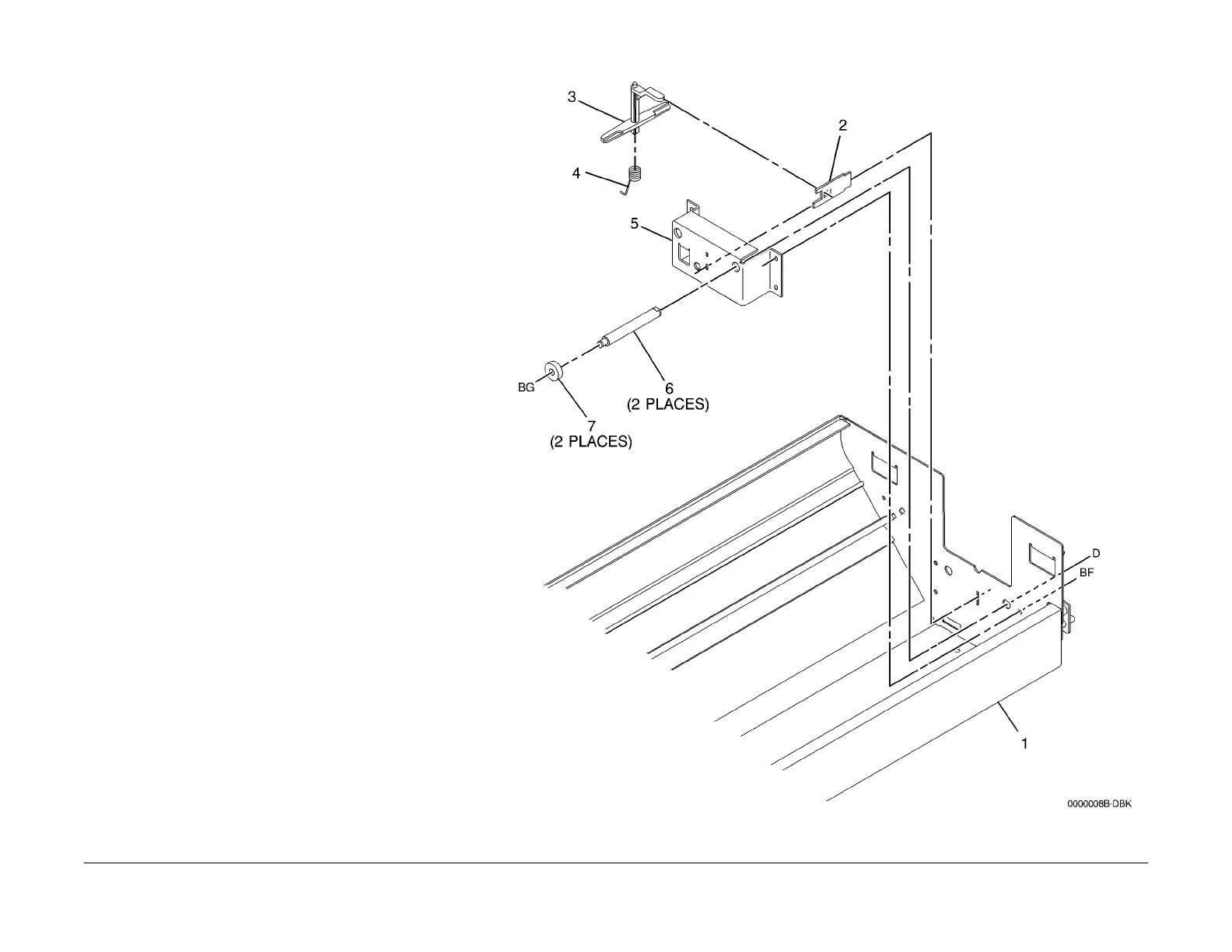

PL 7.4 Roll Supply Drawer
Components (Part 2 of 4)
Item Part Description
1 – Drawer Frame (P/O PL 7.1 Item 11)
2 – RH Roll Lock (P/O PL 7.1 Item 11)
3 003E17610 Roll Lock
4 009E27340 Roll Lock Spring
5 – RH Cradle Bracket (P/O PL 7.1
Item 11)
6 029E14750 RH Support Pin
7 022E11540 Support Roller
