03/2003
4-19
8850/ 510DP
REP 7.11
Repairs and Adjustments
REP 7.11 Upper Media Roll Heater
Parts List on PL 7.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove Roll Media Supply Drawer 1 (REP 7.1).
CAUTION
Be sure to support the Media Roll Heater/Guard with your hand while removing the mounting
screws in the next step.
2. (Figure 1): Remove the Upper Media Roll Heater.

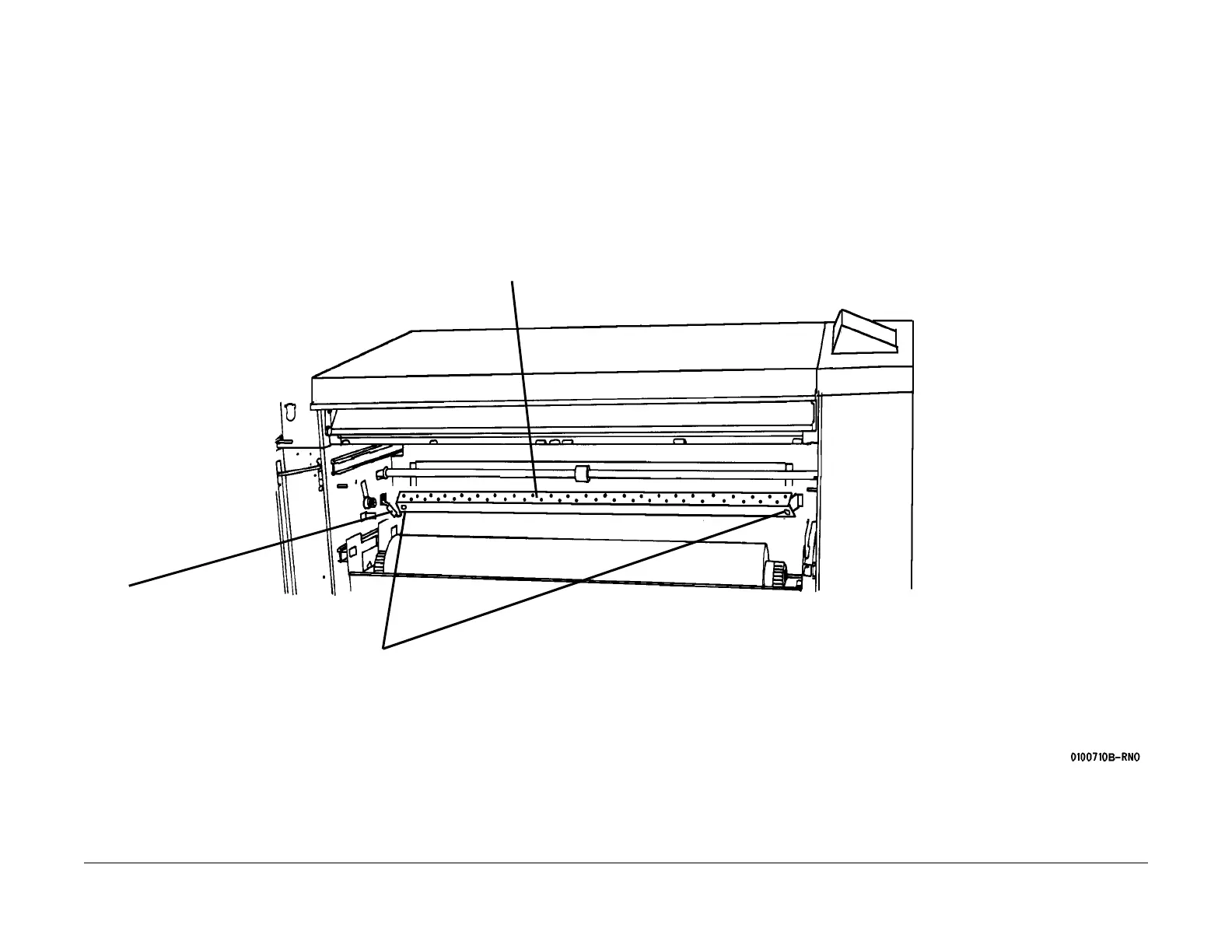

Figure 1 Removing the Upper Media Roll Heater
1
Disconnect the connector
2
Remove the screws (2)
and lift out the Upper
Media Roll Heater and
Guard
3
Slide the Media Roll
Heater out from Heater
Guard
Upper Media Roll Heater
and Guard
To Next Page
