Xerox 8850 - REP 8.5 Sheet Feed Drive Motor (MOT 1)

03/2003
4-35
8850/ 510DP
REP 8.5
Repairs and Adjustments
REP 8.5 Sheet Feed Drive Motor (MOT 1)
Parts List on PL 10.7
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Lower Sheet Feed Assembly. Perform REP 8.1 Lower Sheet Feed Assem-
bly.
2. Turn the Lower Sheet Feed Assembly over.

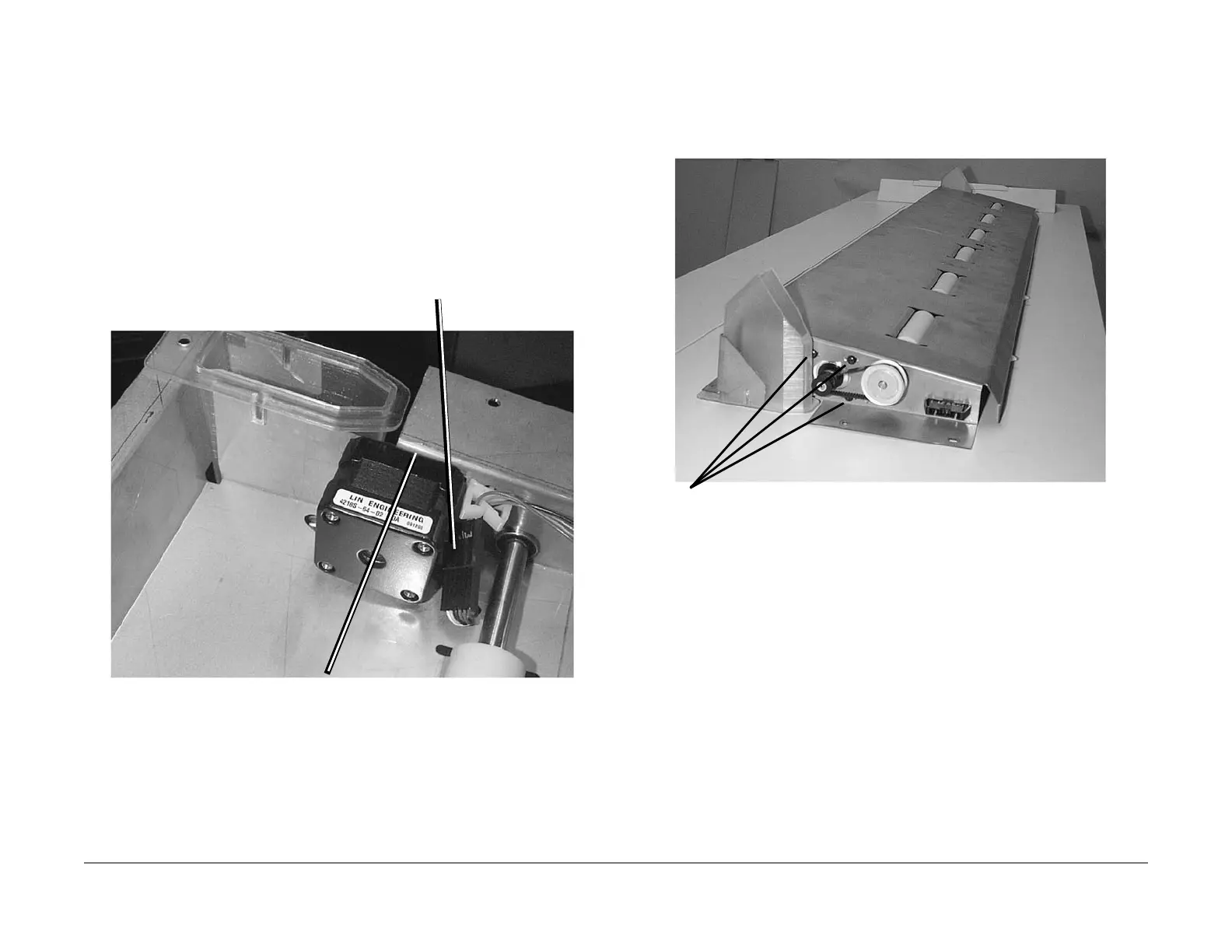

3. (Figure 1): Prepare the Sheet Feed Drive Motor for removal.
F i g u r e 1 P r e p a r i n g t h e S h e e t F e e d D r i v e M o t o r f o r R e m o v a l
4. (Figure 2): Turn the Lower Sheet Feed Assembly over and remove the Sheet Feed Drive
Motor.
Figure 2 Removing the Sheet Feed Drive Motor
2
Outline the current motor’s position
on the Lower Transport Frame with
a pencil
1
Disconnect P/J M1P1
1
Remove the four screws and
lock washers
3
Remove the Sheet Feed Drive
Motor from the Lower Sheet Feed
Assembly
2
Disengage the belt from the
motor
