03/2003

5-41

8850/ 510DP

PL 14.2

Parts Lists

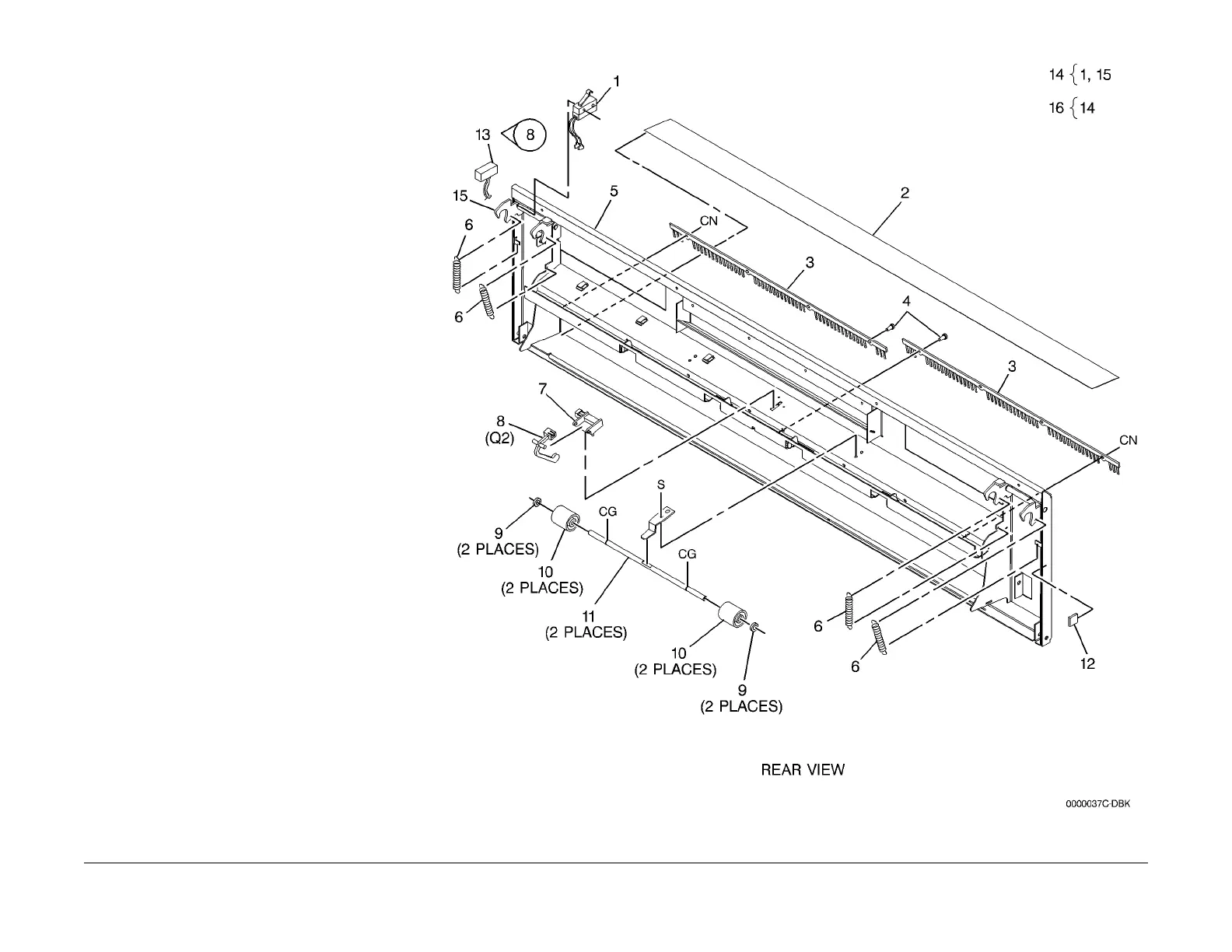

PL 14.2 Transport Latching Cover

Components

Item Part Description

1 110K14080 Fuser Door Switch (TAG 8)

2 892E95830 Label (Bypass Feed Widths)

(510dp)

– 892E50830 Label (Bypass Feed Widths) (8850)

3 115E01410 Static Eliminator

4 – Fastener (P/O PL 14.1 Item 10)

5 802K40210 Cover

6 003E67220 Latch Spring

7 – Stack Height Switch (Q2) (P/O PL

14.1 Item 10) (REP 8.4)

8 – Actuator (P/O PL 14.1 Item 10)

9 – Washer (P/O PL 14.1 Item 10)

10 – Media Exit Pinch Roll (P/O PL 14.1

Item 10) (REP 8.15)

11 – Idler Shaft (P/O PL 14.1 Item 10)

12 – Magnet (P/O PL 14.1 Item 10)

13 962K03180 Paper Stack Sensor Harness

14 – Switch Assembly (Not Spared) (W/

TAG 8 )

15 – Latch (P/O PL 14.2 Item 14)

16 604K17530 Fuser Interlock Switch Kit (8850)

(TAG 8)
