03/2003
5-30
8850/ 510DP
PL 9.8
Parts Lists

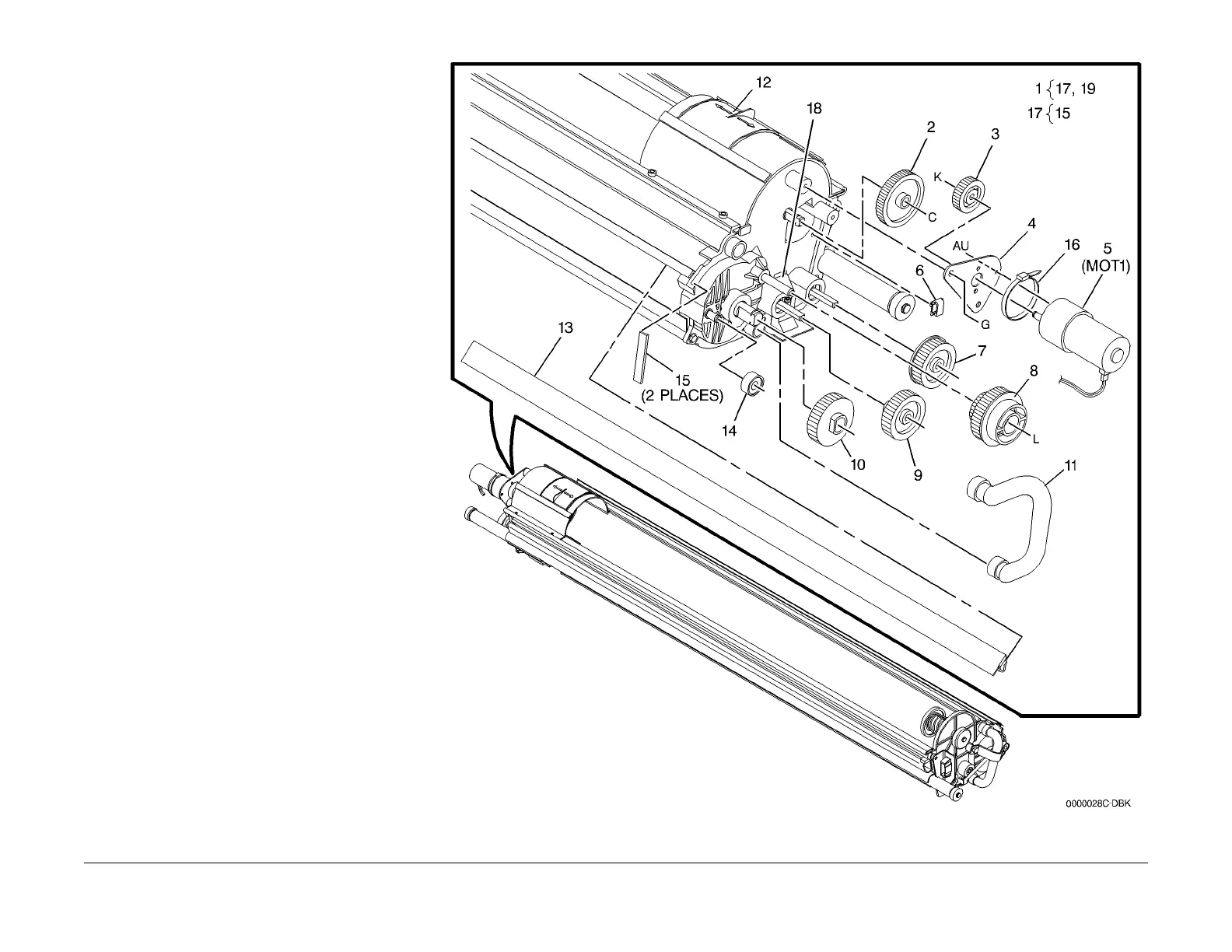

PL 9.8 Developer Module
Components (Part 2 of 2)
Item Part Description
1 604K13350 LL-24 Code and Seal Kit
2 007E16330 Cartridge Gear (44T)
3 007E16341 Cartridge Drive Gear (26T)
4 – Motor Mounting Plate (P/O PL 9.6
Item 12)
5 127K22600 Cartridge Drive Motor (MOT1)
(REP 9.6)
6 019E15041 Cable Clip
7 007E14690 Auger Drive Gear (37T)
8 007K05260 Developer Drive Gear (43T/25T)
9 007E14700 Auger Drive Gear (37T)
10 007E14710 Magnetic Roll Drive Gear (40T)
11 054E03491 Pressure Equalizer Tube (REP
9.18)
12 – Developer Frame (P/O PL 9.6 Item
12)
13 035K04581 Seal
14 – Roller (P/O PL 9.6 Item 12)
15 035E64851 Seal
16 – Cable Wrap (Not Spared)
17 604K12900 Seal Kit (6/Kit)
18 010E04190 Trickle Slide
19 – 8850 Service Tools CD (Not
Shown) (P/O PL 9.8 Item 1)
