03/2003
4-44
8850/ 510DP
REP 8.13
Repairs and Adjustments
REP 8.13 Media Transport Drive Motor and Belt
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: This procedure is primarily concerned with removal of the Media Transport Drive Belt.
Since the Media Transport Drive Motor is also removed in the process, it is also included in the
procedure title.
Removal
1. Remove the Media Transport Module. Perform REP 8.2 Media Transport Module.
2. (Figure 1): Remove the Media Transport Drive Motor and Belt.

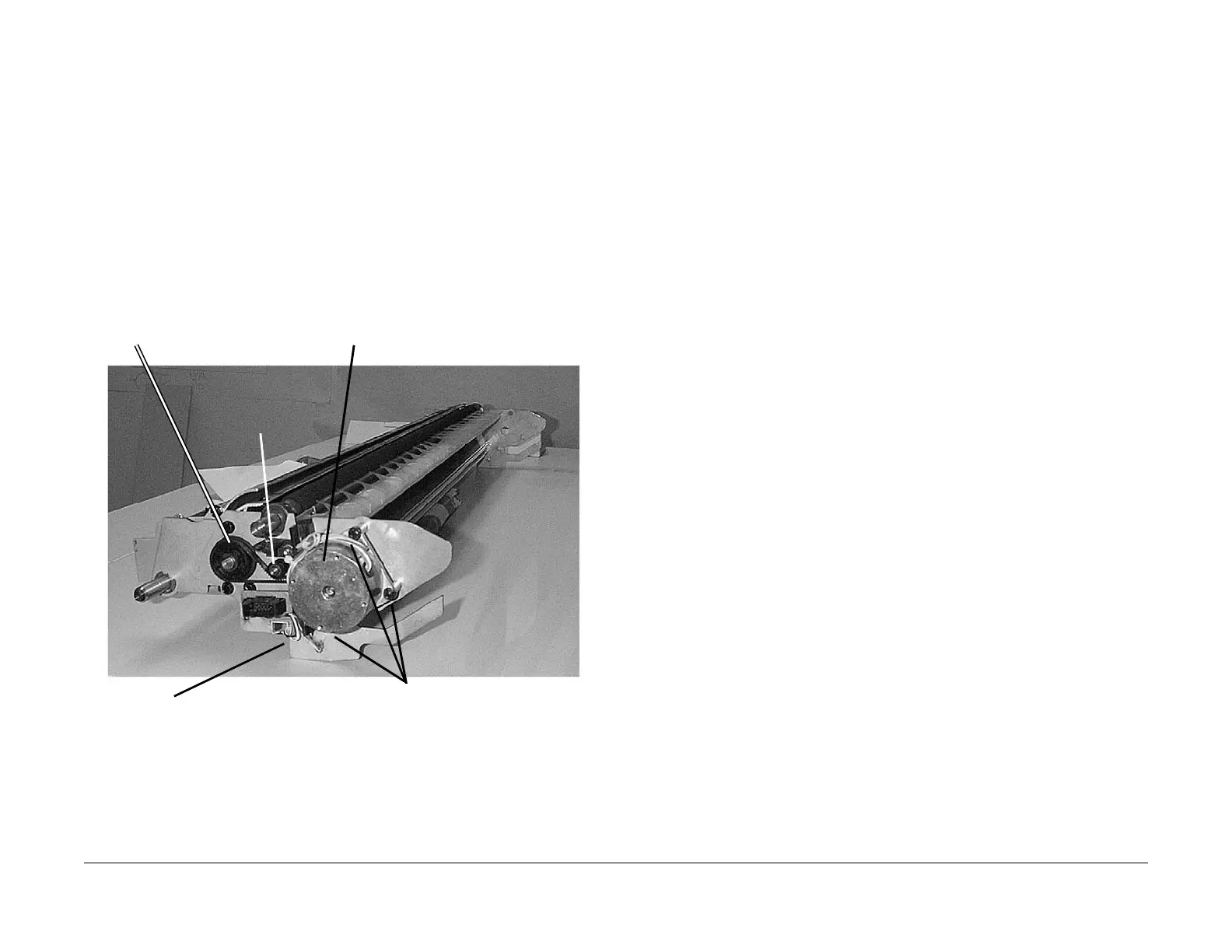

Figure 1 Removing the Media Transport Drive Motor and Belt
Replacement
NOTE: On reinstallation, ensure that the Media Transport Drive Belt is routed UNDER the Idler
Pulley
1. Reinstallation is the reverse of the Removal procedure.
3
Remove the Media Transport
Drive Motor
4
Remove the Media Transport
Drive Belt
2
Remove the three motor
mount screws
1
Disconnect M1P 1 from the Media
Transport Drive Motor
Idler Pulley
To Next Page
