03/2003
5-17
8850/ 510DP
PL 7.6
Parts Lists

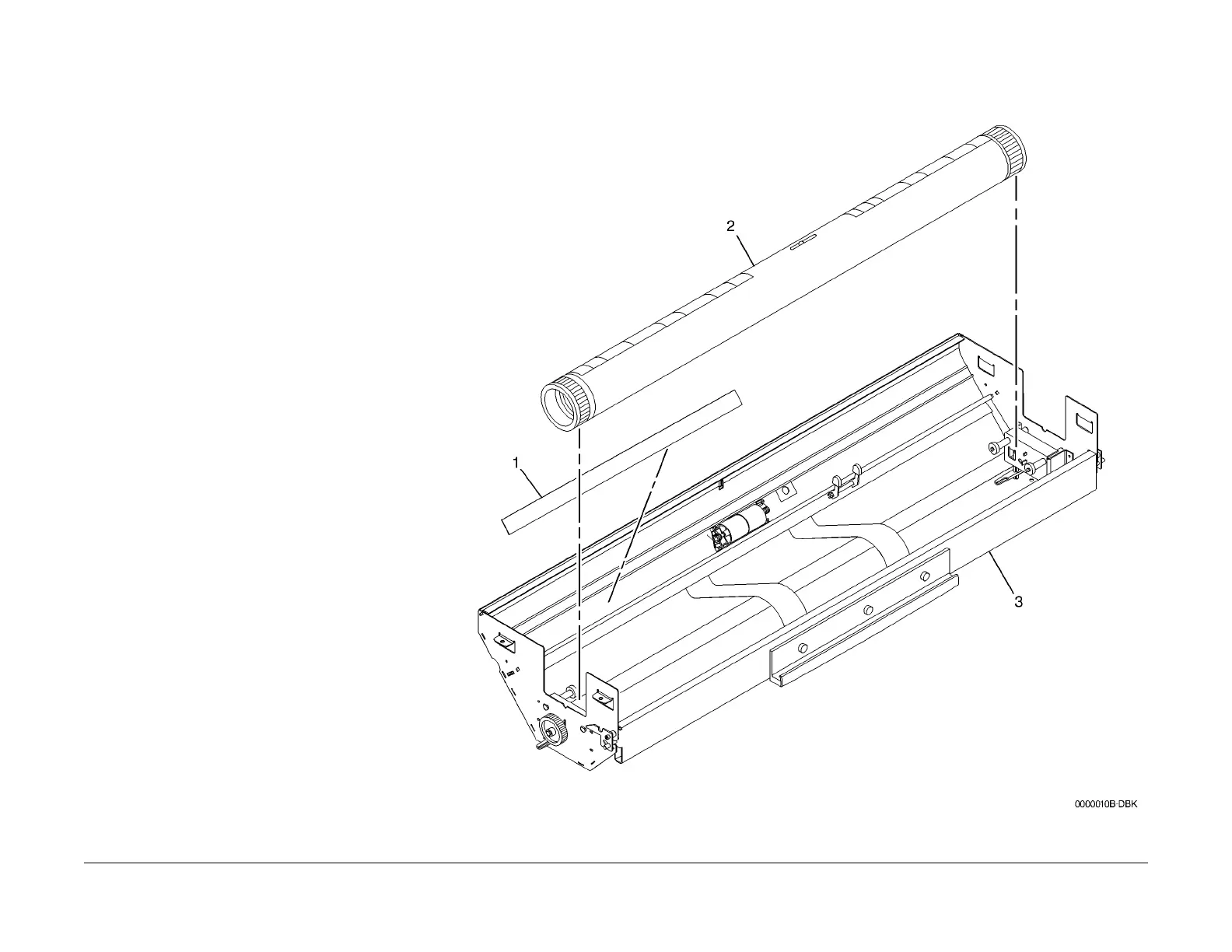

PL 7.6 Roll Supply Drawer
Components (Part 4 of 4)
Item Part Description
1 – Label (Media Load) (P/O PL 7.1
Item 11)
2 052K03580 Roll Support Tube Assembly
3 – Drawer Frame (P/O PL 7.1 Item 11)
