03/2003
4-33
8850/ 510DP
REP 8.3, REP 8.4
Repairs and Adjustments

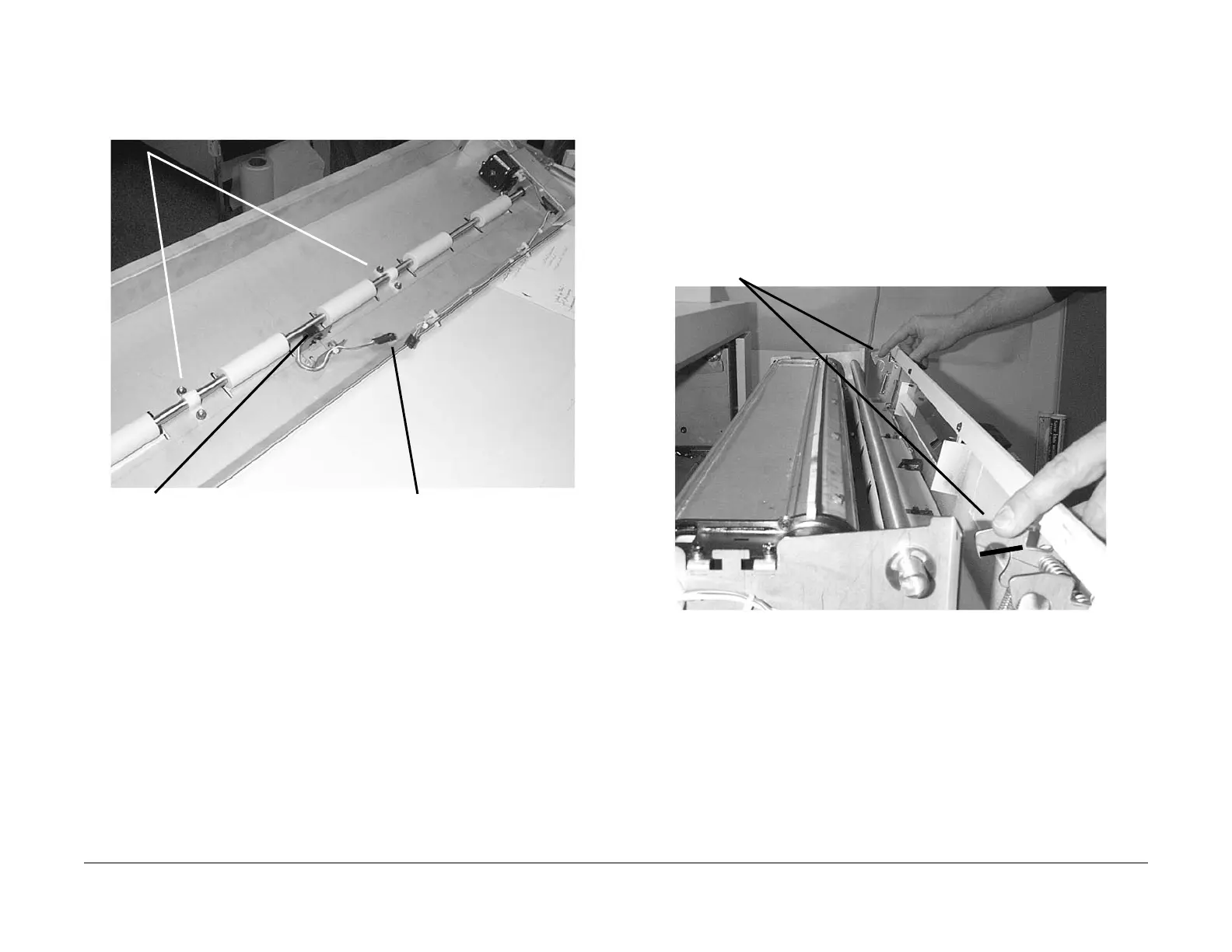

4. (Figure 2): Remove the Sheet Feed Sensor.
Figure 2 Removing the Sheet Feed Sensor
REP 8.4 Stack Height Sensor
Parts List on PL 14.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Pull out the Fuser Module drawer.
2. (Figure 1): Release the latches at the top of the Fuser Module.
Figure 1 Releasing the Fuser Drawer Latches
1
Disconnect P/J xxx
3
Disengage the Sheet Feed Sensor from
the Lower Transport frame and remove
2
Remove the two plastic retainers
by removing the four hex nuts
1
Compress spring tabs
2
Allow Fuser Module Cover to
drop downward
To Next Page
