03/2003
4-29
8850/ 510DP
REP 8.2
Repairs and Adjustments
REP 8.2 Media Transport Module
Parts List on PL 8.1
WARNING
Switch off the Printer Power Switch. Disconnect the Printer Power Cord.
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed when facing the Printer from the Roll Media Supply Drawer side.
1. Ensure that the Fuser Drawer is opened.
2. Remove the Lower Sheet Feed Assembly. Perform REP 8.1 Lower Sheet Feed Assem-
bly.
NOTE: Technical Representatives may find it helpful to remove the Developer Module
prior to attempting the removal of the Media Transport Module, as it allows better visibility.
Removing the Developer Assembly and its Plastic Baffle is therefore optional for the com-
pletion of this procedure.
NOTE: Opening the Cutter Drawer will also make removing the Media Transport Module
easier.
3. (Optional) Remove the Developer Module. Perform REP 9.5 Developer Module.
4. (Figure 1): Open the Printer Front Cover (beneath the Control Panel) and release the
spring tension on the Shaft Release Pin.

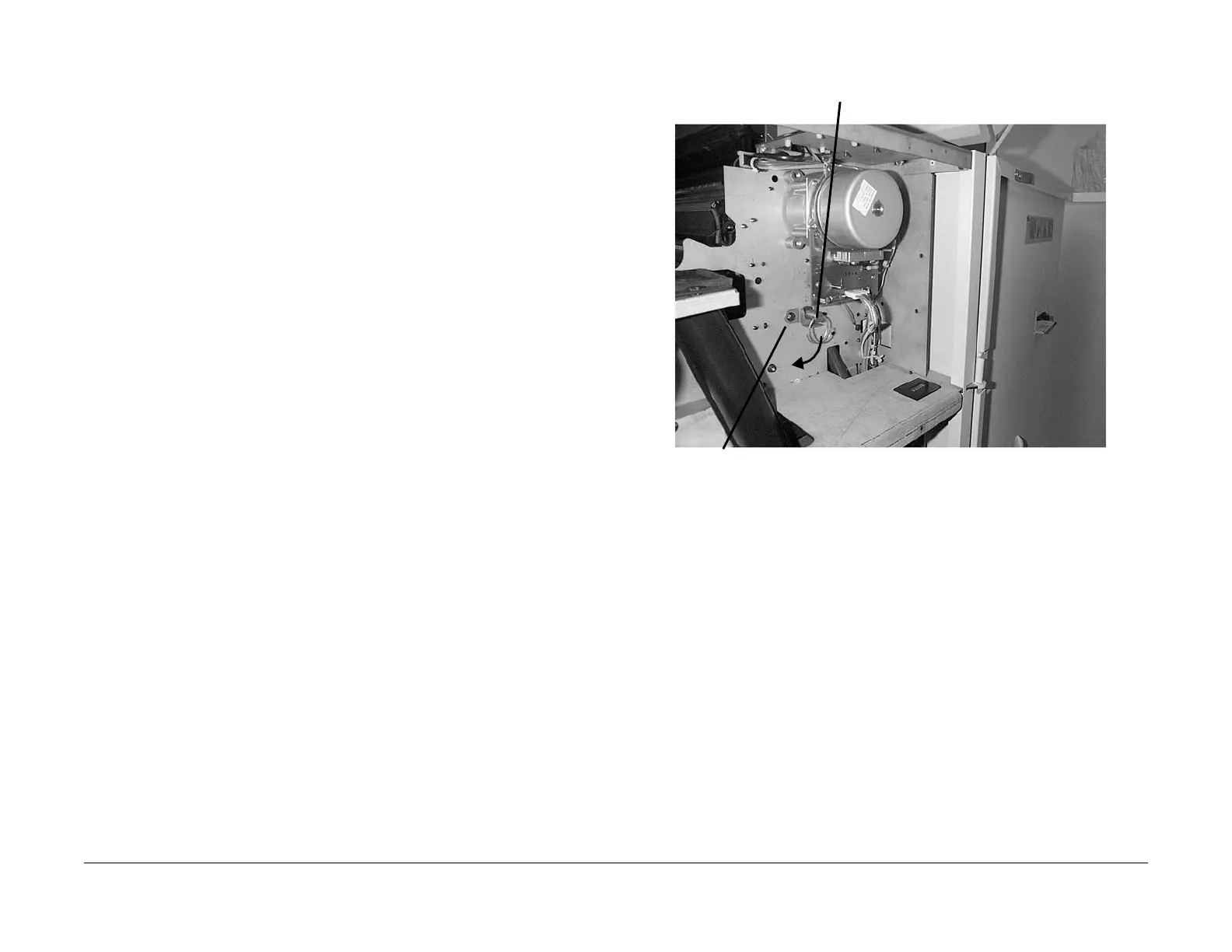

Figure 1 Releasing the Tension on the Shaft Release Pin
1
Loosen the phillips screw slightly and
rotate the bracket downward
2
Pull the Shaft Release Pin outward
To Next Page
