Xerox 8850 - Page 132

03/2003
4-56
8850/ 510DP
REP 8.18
Repairs and Adjustments
6. (Figure 3): Remove the Detack Corotron and End Blocks from the Upper Transport
Assembly.

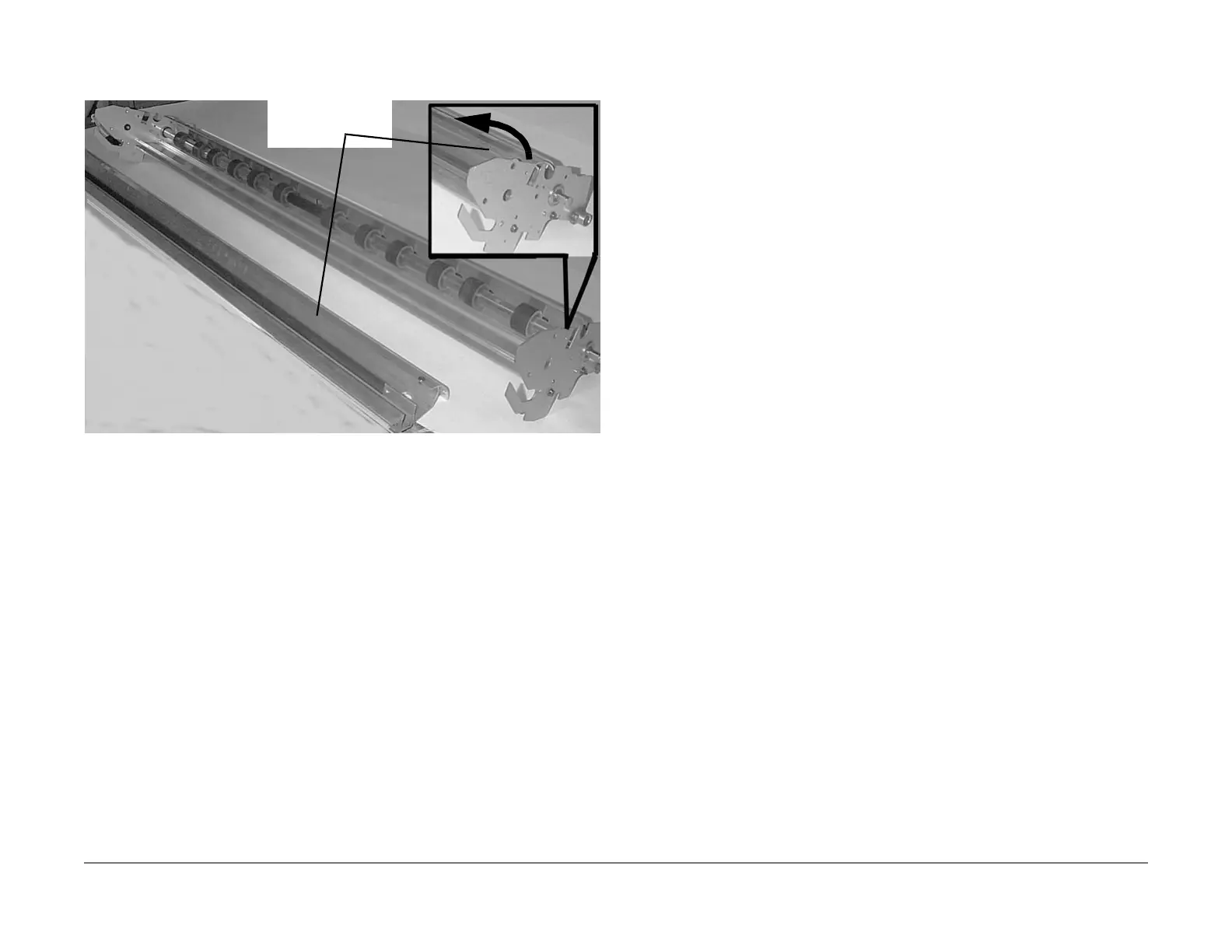

Figure 3 Removing the Detack Corotron/BTR Extrusion
Replacement
1. The replacement is the reverse of the Removal.
1
Rotate the Extrusion
up to remove
