03/2003
4-118
8850/ 510DP
REP 10.2
Repairs and Adjustments
8. (Figure 7): Remove the left side Fuser Heat Roll Bearing.
NOTE: If the Fuser Bearing is difficult to remove, lower the Latching Cover more to
remove the force of the Pressure Roll.

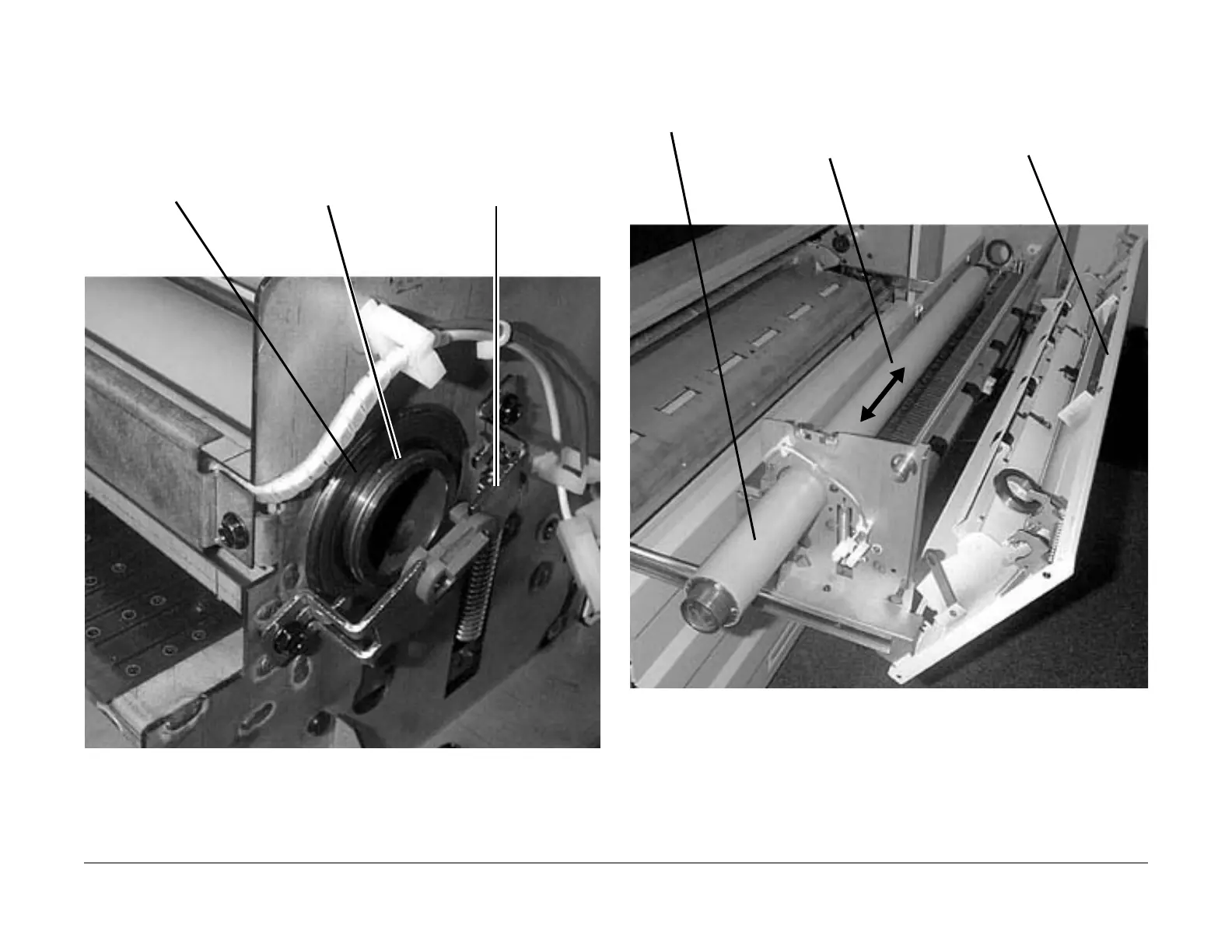

Figure 7 Removing the Left Side Fuser Heat Roll Bearing
NOTE: Do not pull the Heat Roll through the frame to remove. Only slide it enough to
clear the frame then move in the opposite direction to remove.
9. (Figure 8): Remove the Fuser Heat Roll.
Figure 8 Removing the Fuser Heat Roll
1
Remove the Heat Rods
Support Bracket if
present
2
Remove the wire Grip
Ring
3
Remove the Fuser
Heat Roll Bearing
1
Hold the Latching Cover fully
open to remove the force of
the Pressure Roll from the
Fuser Heat Roll.
2
Move the Fuser Heat Roll to
the left or right until the
opposite end clears the
frame
3
Lift the Fuser Heat
Roll and remove
To Next Page
