03/2003
4-120
8850/ 510DP
REP 10.3
Repairs and Adjustments
WARNING
Wear protective gloves when handling parts with silicone oil on them. Do not allow sili-
cone oil to contact your eyes. Silicone oil can cause severe eye irritation. Wash your
hands immediately after handling any component covered with silicone oil.
3. (Figure 2): Remove the Web Oiler Assembly.

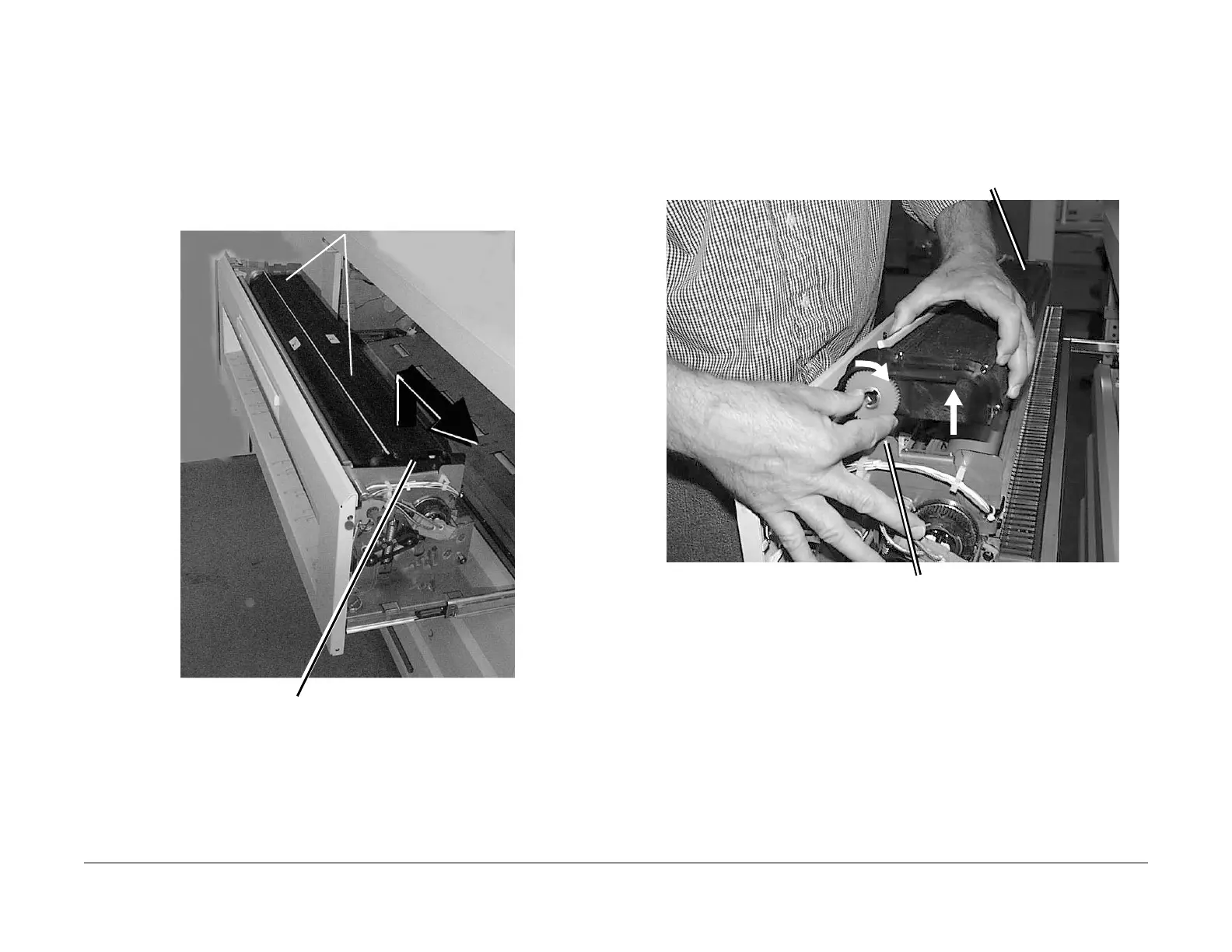

Figure 2 Removing the Web Oiler Assembly
Replacement
1. (Figure 3): Reinstall the Web Oiler Assembly on the Printer.
Figure 3 Reinstalling the Web Oiler Assembly
2. Return the Printer to normal operating condition.
3. Enter the Printer diagnostics and perform the following:
a. 10-30 Web Oiler Parameters Reset - to reset the meter if a new Web Oiler is
installed.
b. 10-31 Partial Web Oiler Parameters Reset - to reset the parameters for a partially
used Web. Measure the diameter of the remaining web on the Supply Roll in millime-
ters and enter this value.
1
Remove the two right side
screws
2
Slightly lift the Oil Assembly
and move to the right to
clear the left side tabs
1
Position the Web Oiler Assembly so
that the drive side is on the right side of
the Fuser Drawer
2
Slide the two prongs on the left
side of the Web Oiler Assembly
into the slots on left side of the
Fuser Drawer
3
Lift the right side of the Web Oiler
Assembly slightly and turn the
Takeup Roll clockwise to remove
any remaining slack in that roll
4
Set the Web Oiler back down on
the Fuser Assembly and tighten
down the two mount screws
To Next Page
