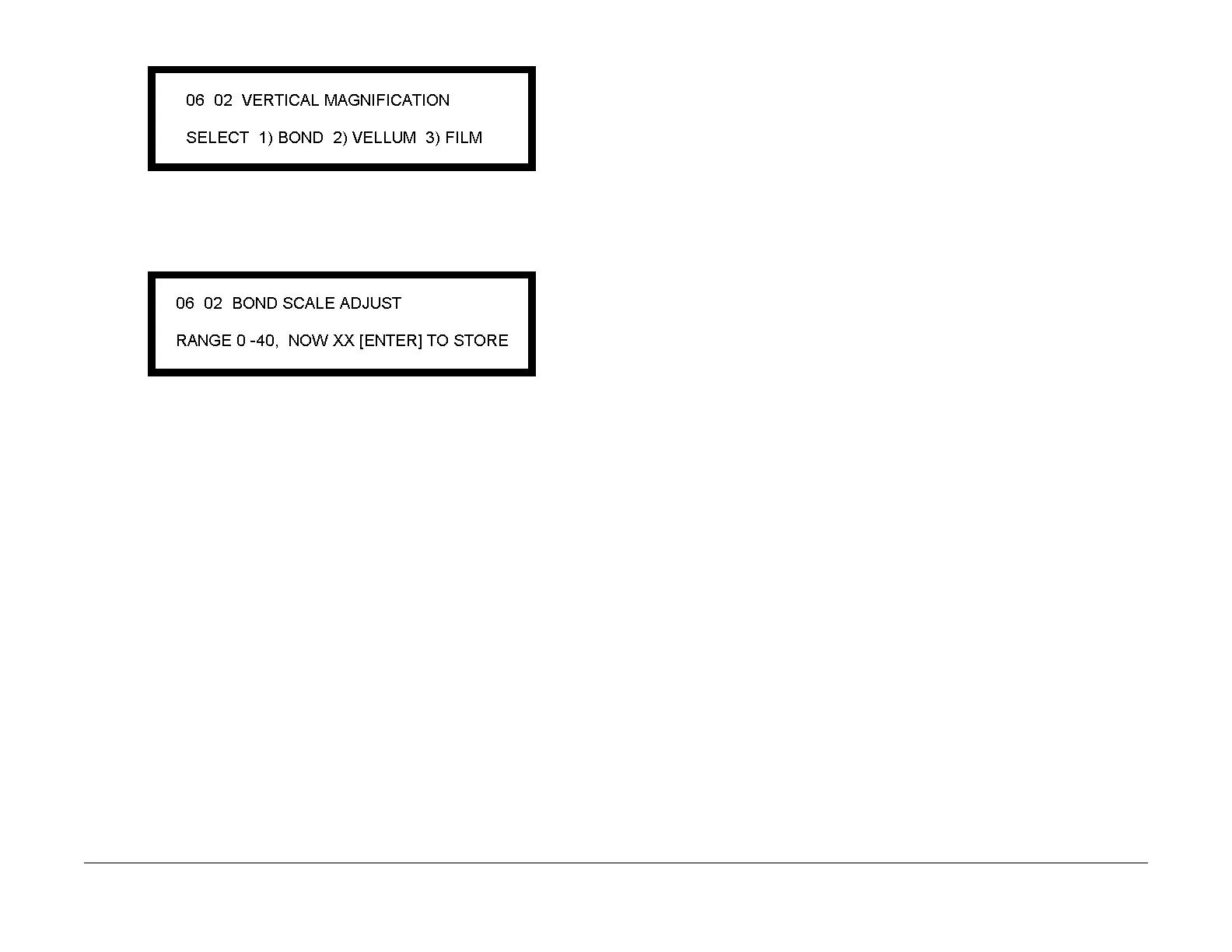

Figure 2 Media Selection Screen
2. (Figure 3): Select the type of media. The following message is displayed. (In this exam-
ple, bond paper media has been selected.)
Figure 3 Adjusting the Magnification for Bond
NOTE: The range of adjustment is 0 to 40. Each step equals approximately 1 mm.
3. Adjust the Vertical Magnification using the Previous / Next buttons.
a. Use the Previous button to decrease the Set Point, which will decrease the Image
Length.
b. Use the Next button to increase the Set Point, which will increase the Image Length.
c. Press the Enter button in order to store the value in NVM.
d. Press the Exit button two times.
4. Repeat the check for all the types of media used by the customer.
