Xerox 8850 Service Manual

03/2003
4-152
8850/ 510DP
ADJ 9.5
Repairs and Adjustments
Adjustment
1. Perform the check.
NOTE: The Toner Cartridge Home Sensor is threaded. The wires must be disconnected and
straightened in order to rotate the sensor for adjustment.
2. (Figure 2): Adjust the Toner Cartridge Home Sensor to 2.5 (± 0.5) mm from the plate.

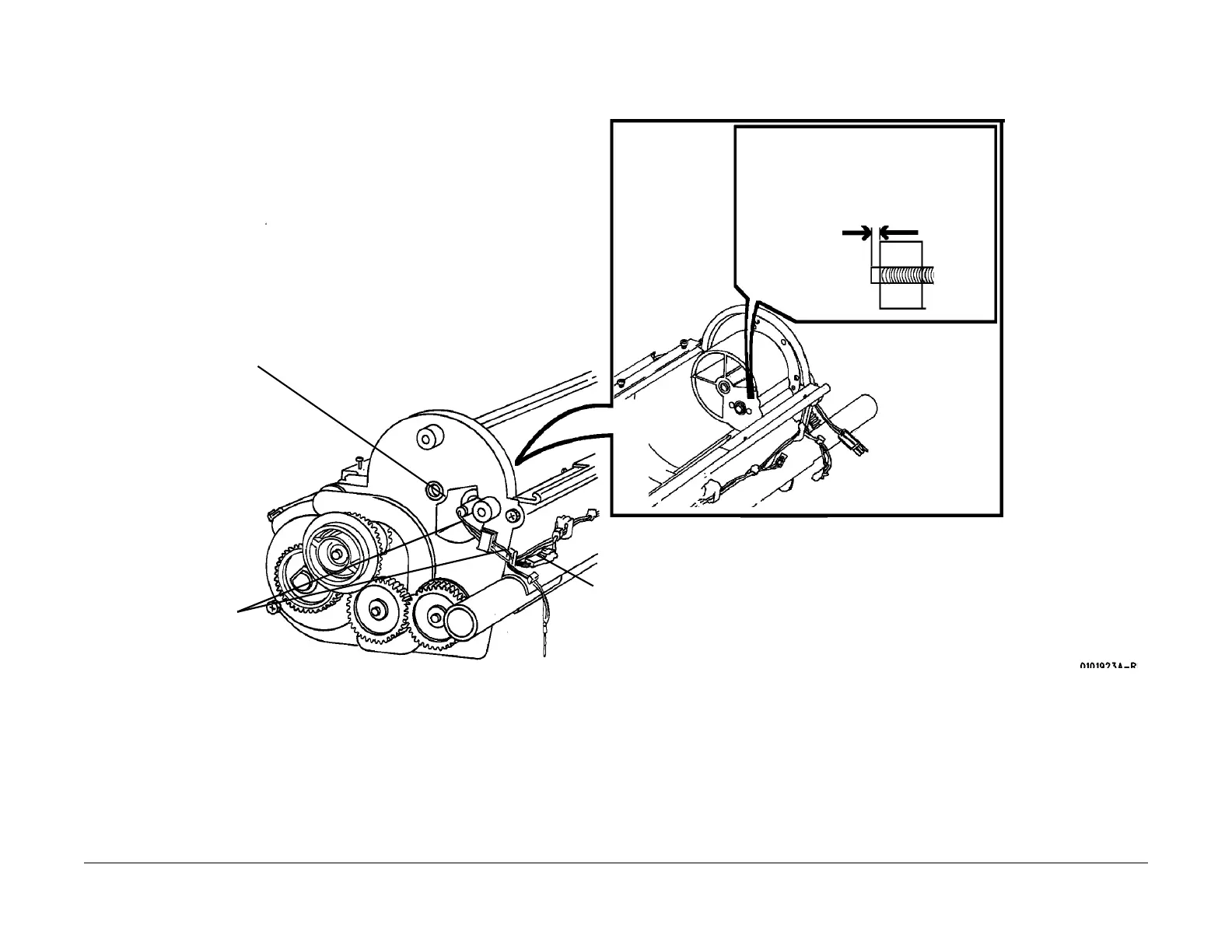

Figure 2 Adjusting the Toner Cartridge Home Sensor
2.5 +/- 0.5 mm
1
Disconnect Q2
3
Straighten the wires and adjust the
sensor
2
Remove the wires
from the clamps (2
places)
