Xerox COLORQUBE 8870

October 2012
4-43
ColorQube 8570/8870 Service Manual
REP 2.16
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
NOTE: In the following step, the Media Release Blade, Transfix Roller, Transfix Roller
Shaft, and the 2 Transfix Load Arms are removed as a single assembly.
CAUTION
Be careful not to lose the rubber O-ring. (The O-ring is for noise dampening during strip.)

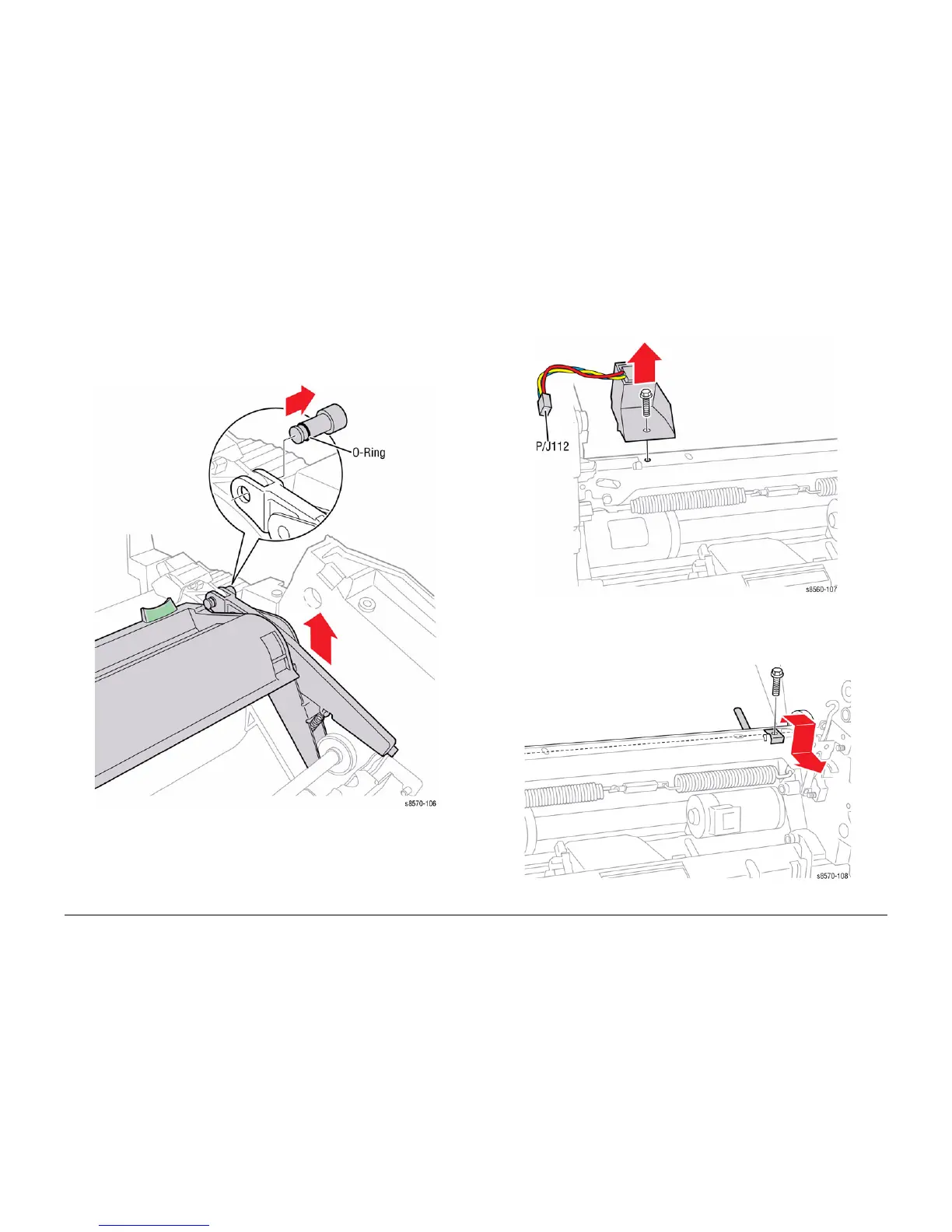

17. Remove the Clevis Pins from the left and right Transfix Load Arms to release the Transfix
Roller Assembly from the chassis.
Figure 2 Removing the Transfix Load Arm Clevis Pins
18. Disconnect the Preheater Lift Solenoid wiring harness connector P/J112.
19. Remove 1 screw that secures the Preheater Lift Solenoid to the Transfix Load Module.
20. Remove the Preheater Lift Solenoid.
Figure 3 Removing the Preheater Lift Solenoid
21. Remove the screw that secures the Transfix Load Module Ground Spring and remove the
Ground Strap.
Figure 4 Removing the Transfix Module Ground Strap
