Xerox COLORQUBE 8870

October 2012
4-85
ColorQube 8570/8870 Service Manual
REP 5.2, REP 5.3
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
Replacement
1. Be sure to connect the Hard Disk Drive wiring harness connectors securely.

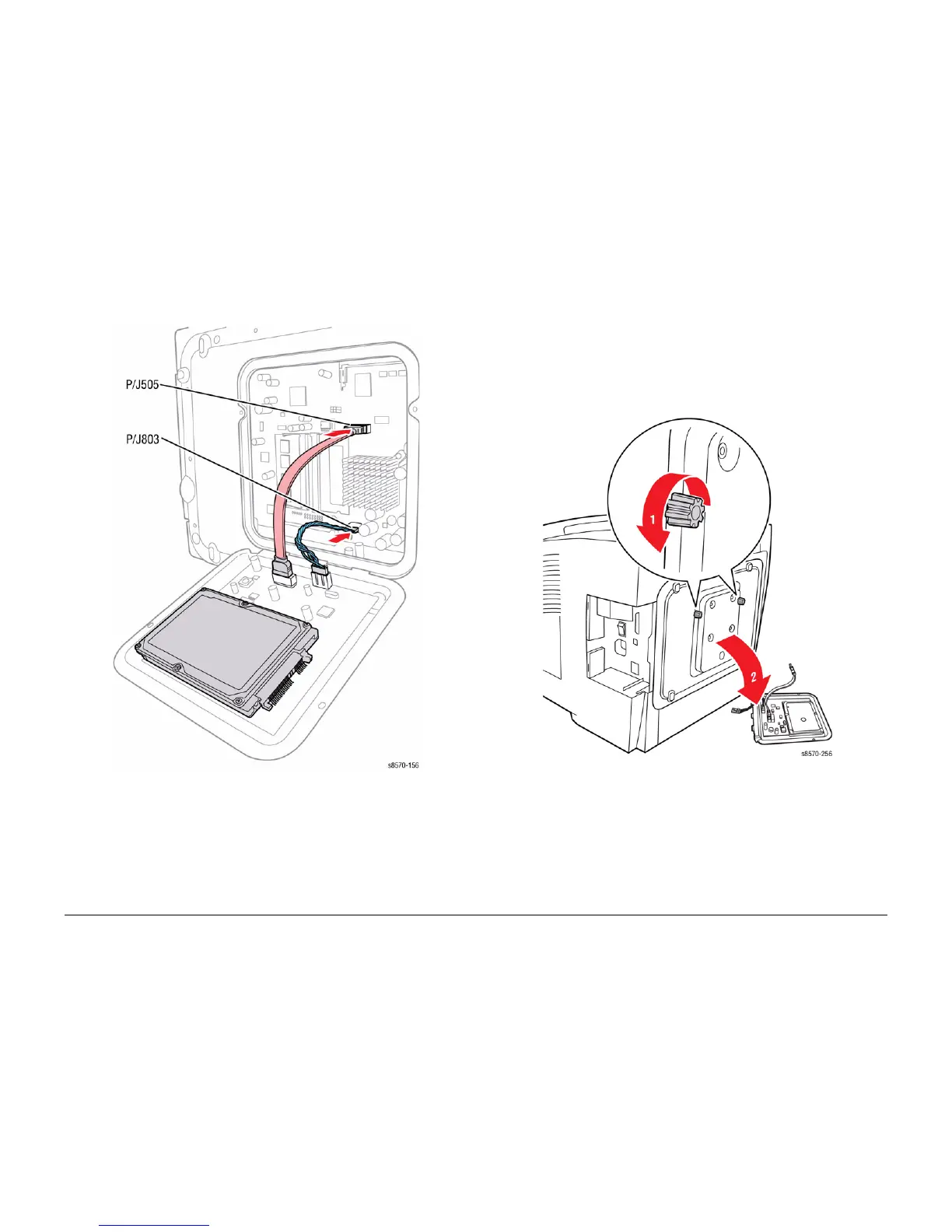

Figure 3 Installing the Hard Disk Drive
REP 5.3 RAM
Parts List on PL 5.1 Item 3
Removal
CAUTION
RAM is vulnerable to ESD. Review the Electrostatic Discharge Precautions procedures in the
Introduction Chapter.
1. Remove the 2 thumbscrews on the Rear Panel of the Electronics Module and remove the
Rear Panel.
Figure 1 Removing the Screws and Rear Panel
