Xerox COLORQUBE 8870

October 2012
4-87
ColorQube 8570/8870 Service Manual
REP 5.4
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 5.4 NVRAM
Parts List on PL 5.1 Item 4
Removal
CAUTION
NVRAM is vulnerable to ESD. Review the Electrostatic Discharge Precautions procedures in
the Introduction Chapter.
1. Remove the 2 thumbscrews on the Rear Panel of the Electronics Module and remove the
Rear Panel.

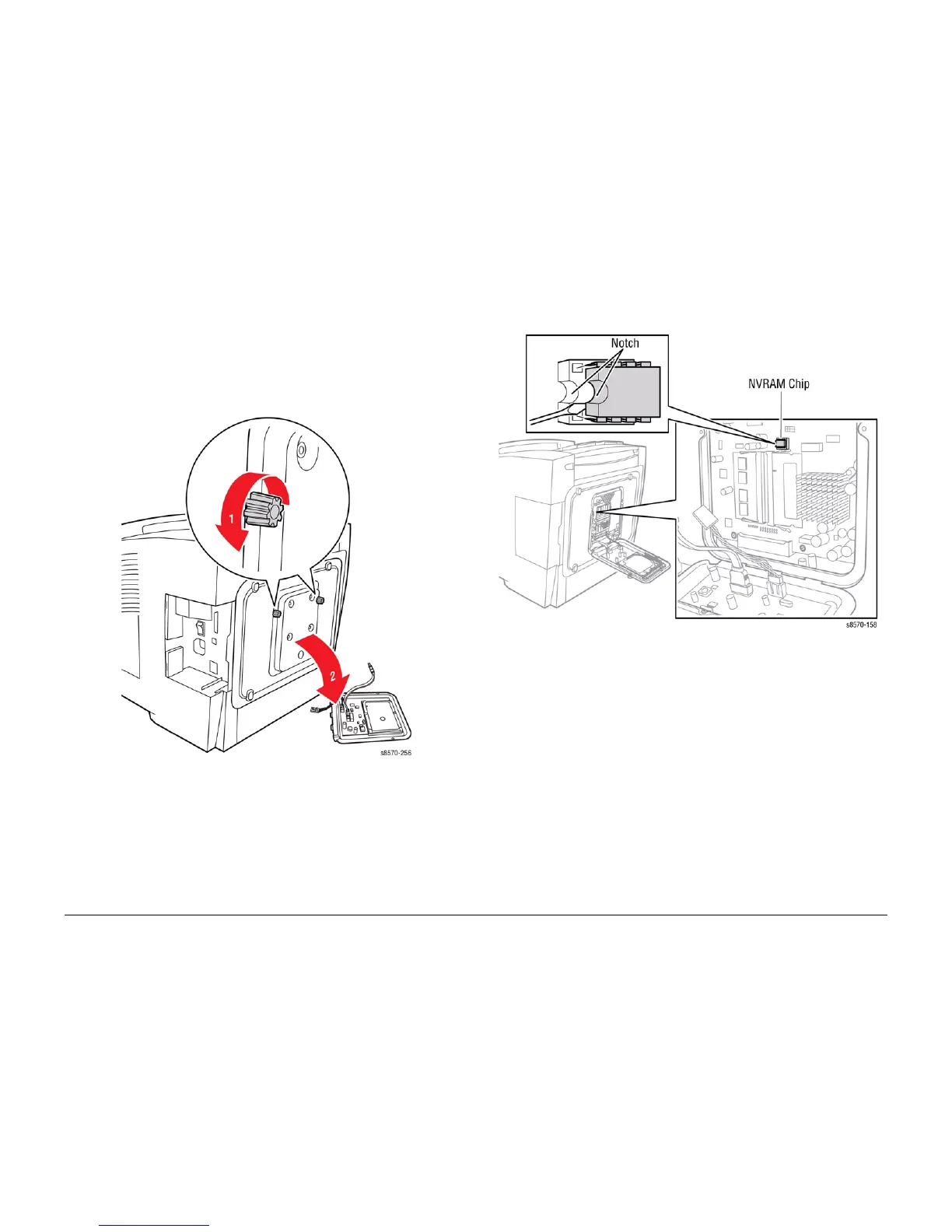

Figure 1 Removing the Back Cover
NOTE: Observe the orientation of the NVRAM devices before removing it from the Board.
2. Exchange the NVRAM.
Figure 2 Removing the NVRAM
