ColorQube 8570/8870 Service Manual
Routine Maintenance Items, Consumables
Introduction
Xerox Internal Use Only - Revised, 3rd Revision
Routine Maintenance Items
Drum Maintenance Unit life expectancy depends on the unit capacity. For example, the stan-
dard-capacity Drum Maintenance Unit produces 10,000 prints regardless of the colors used.
Extended-capacity Drum Maintenance Unit for the ColorQube 8570/8870 produces 30,000
pages up to 20% coverage and 20,000 pages when coverage exceeds 20%. The ColorQube
8570/8870 uses a unique Drum Maintenance Unit. See Parts List in Chapter 5 for the correct
replacement part.

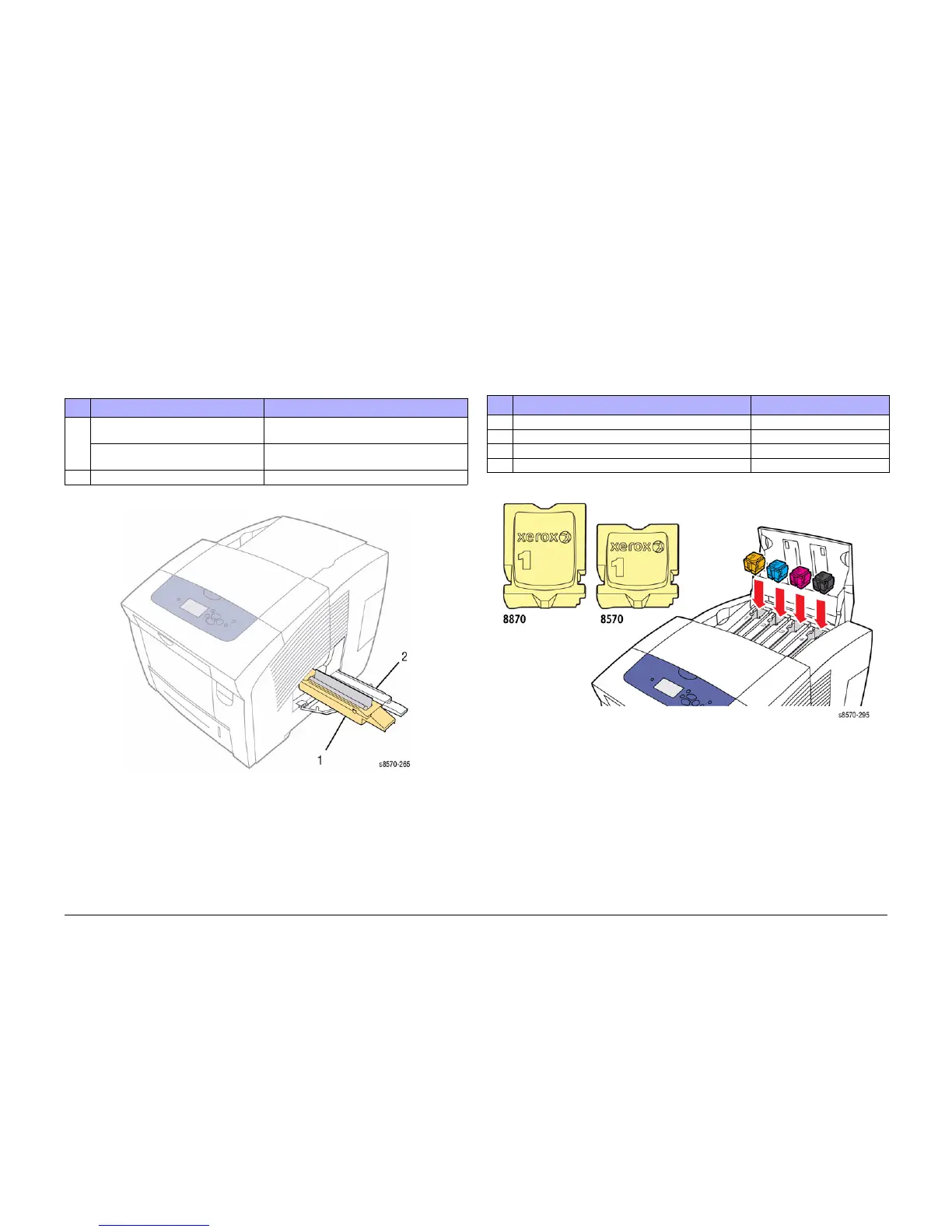

Figure 1 Routine Maintenance Items
Consumables
CAUTION
The ColorQube 8570/8870 printer uses a new formulation of Ink having unique properties. The
Ink Loader on these products is keyed to accept this Ink shape only. The use of Ink not specifi
-
cally designed for this product can result in printer failures.
NOTE: Print life is based on “typical” office printing and 5% coverage per color.
Figure 1 ColorQube 8570/ 8870 Ink Sticks
Table 1 Routine Maintenance Life Expectancy
Item Description Print Life
1 Drum Maintenance Unit (Extended-
Capacity)
30,000 cycles (0-20%) coverage
20,000 cycles (20-100%) coverage
Drum Maintenance Unit (Standard-
Capacity)
10,000 cycles
2 Waste Tray Empty every 7 purges (70g)
Table 1 Consumables
Item Description Print Life (per stick)
1 Black Ink Stick - 8570N/ DN/ DT 2,200 pages
2 Cyan, Magenta, Yellow Ink Sticks - 8570N/ DN/ DT 2,200 pages
3 Black Ink Stick - 8870EE 2,800 pages
4 Cyan, Magenta, Yellow Ink Sticks - 8870EE 2,800 pages
