ColorQube 8570/8870 Service Manual
Yellow Solid Fills, Black Solid Fills
Image Quality
Xerox Internal Use Only - Revised, 3rd Revision
Yellow Solid Fills
This test prints Yellow solid fills in five modes.
• 1x: Prints 1 page of Yellow solid fills single-sided.
• 10x: Prints 10 pages of Yellow solid fills single-sided.
• Continuous: Prints 999 pages of Yellow solid fills double-sided.
• Adhere Ink Stick: Prints 20 pages of Yellow solid fills double-sided.
• Yellow Refresh: Prints 20 pages of Yellow solid fills double-sided.

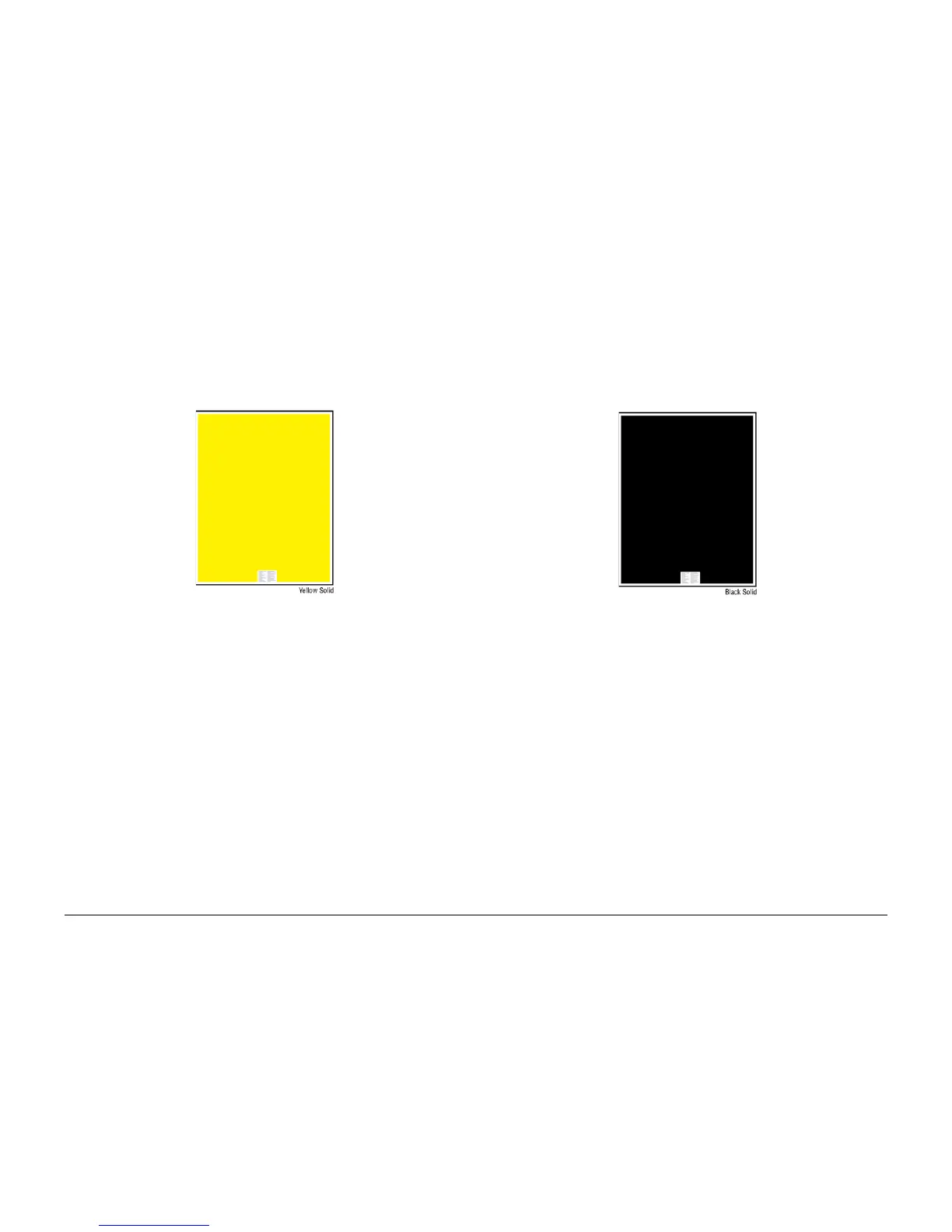

Figure 1 Yellow Solid Fills
Black Solid Fills
This test prints Black solid fills in five modes.
• 1x: Prints 1 page of Black solid fills single-sided.
• 10x: Prints 10 pages of Black solid fills single-sided.
• Continuous: Prints 999 pages of Black solid fills double-sided.
• Adhere Ink Stick: Prints 20 pages of Black solid fills double-sided.
• Black Refresh: Prints 20 pages of Black solid fills double-sided.
Figure 1 Black Solid Fills
