Repairs and Adjustments
Replacement
Be sure to place the rail of the Ink Loader Assembly underneath the tab of the Bezel.

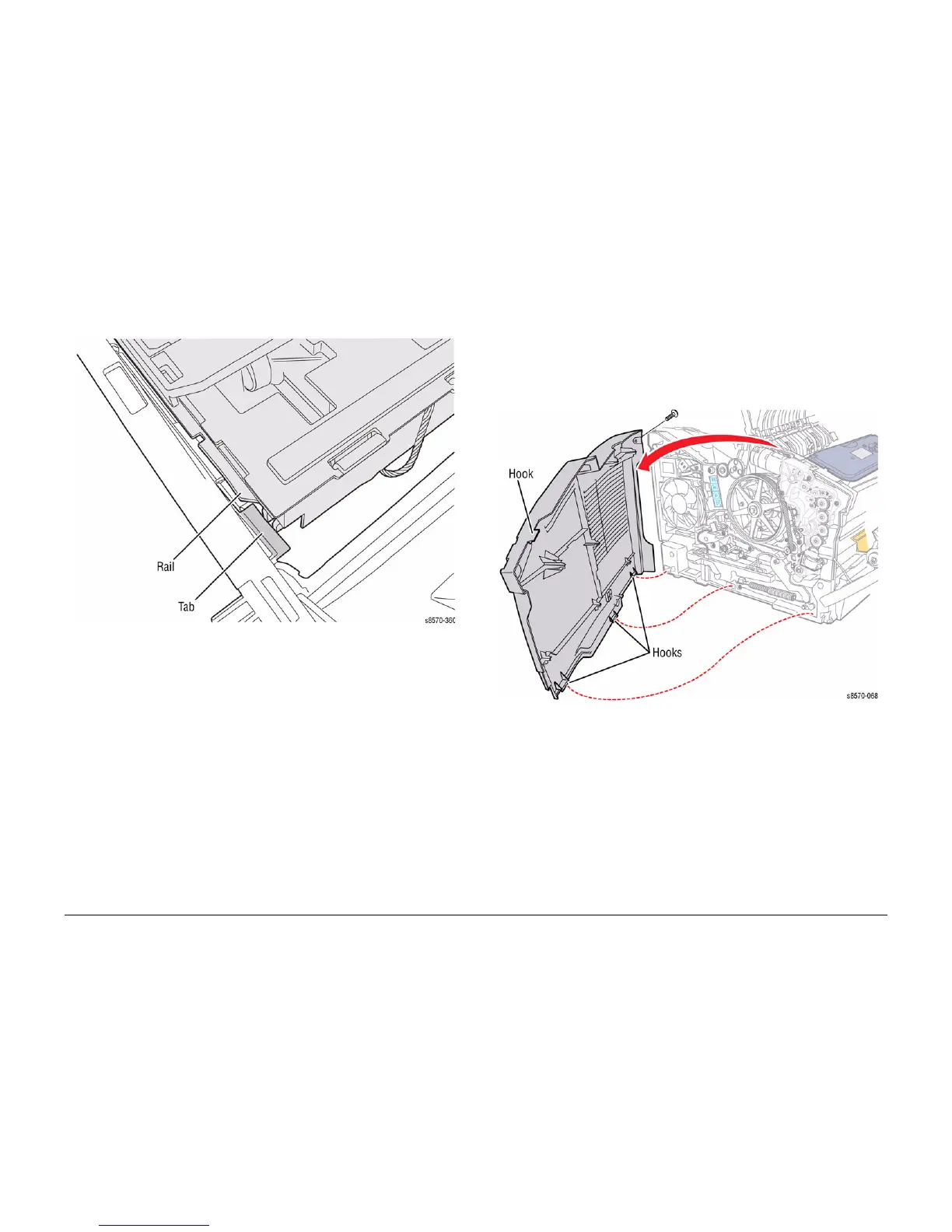

Figure 4 Aligning the Rail and Tab
REP 1.10 Left Side Cover
Parts List on PL 1.1 Item 10
Removal
1. Open the Exit Cover and Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove 1 screw (metal, T-20) that secures the Left Side Cover.
4. Release the hooks on the Cover from the printer and remove the Left Side Cover.
Figure 1 Removing the Left Side Cover
