Xerox COLORQUBE 8870

October 2012
4-15
ColorQube 8570/8870 Service Manual
REP 1.17
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 1.17 Tray 1 Arm
Parts List on PL 1.1 Item 17
Removal
1. Open the Tray 1 at about 30 degree angle.

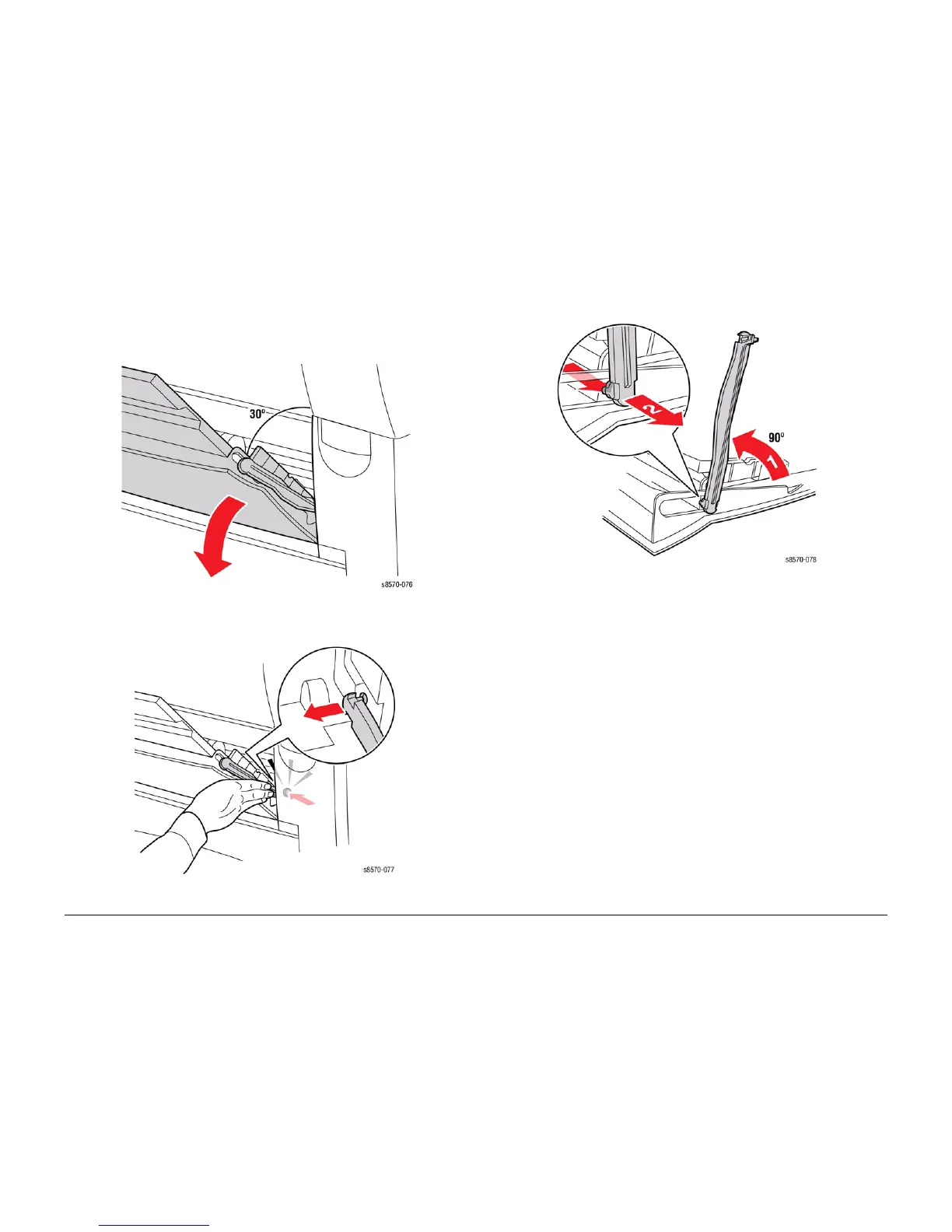

Figure 1 Opening Tray 1
2. Push the Arm towards the inside to release the Arm from the notch.
Figure 2 Releasing the Tray 1 Arm
3. Rotate the Tray 1 Arm upward around a 90 degree angle to release the Arm from the
open slot on Tray 1.
Figure 3 Removing the Tray 1 Arm
