Xerox COLORQUBE 8870

October 2012
5-7
ColorQube 8570/8870 Service Manual
PL 4.1
Parts List
Xerox Internal Use Only - Revised, 3rd Revision

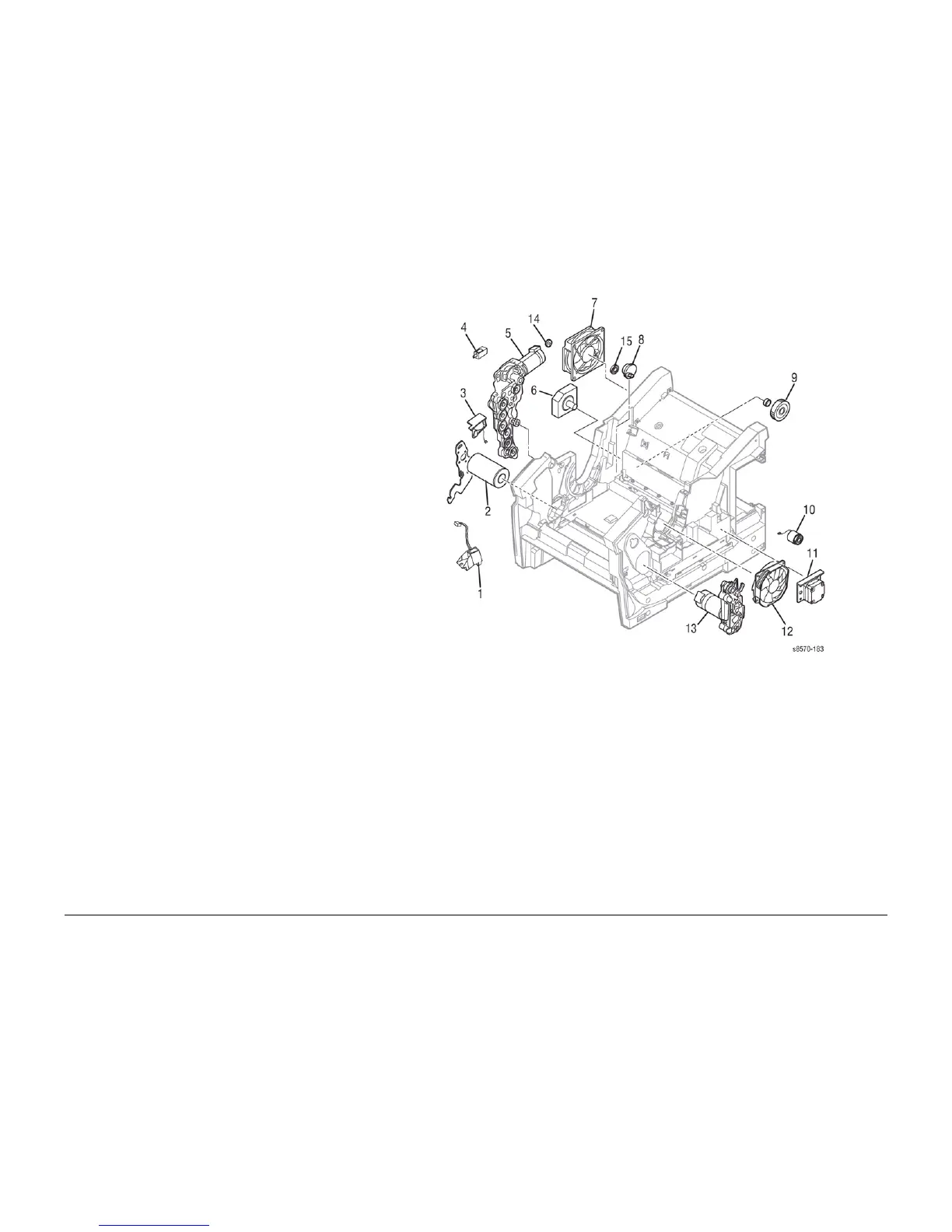

PL 4.1 Drive
Item Part Description
1 121K44430 Preheater Lift Solenoid Assembly
2 127K68130 Y-Axis Motor Assembly
3 121E20120 Tray 1 Pick Solenoid
4 121K44480 Head Tilt Solenoid Assembly
5 007K20040 Media Drive with 2 Clutches
6 127E17160 Tray 2 Lift Motor
7 133K25010 Electronics Module Fan
8 807E39790 Compound Head Tilt Gear, Missing
Tooth
9 – Lift Motor Gear (P/O PL 4.1 Item 6)
10 033E05190 Head Maintenance Clutch (Electric
Clutch, Wiper)
11 127K68450 X-Axis Motor Assembly w/Bracket
12 127E16890 Drum Cooling Fan
13 007K20021 Process Drive with Gear Box and
Motor
14 004K07630 Damper, CAM, Head Tilt
15 807E16060 Head Tilt Missing Tooth Gear
