Xerox COLORQUBE 8870

October 2012
3-38
ColorQube 8570/8870 Service Manual
Oil Bar Chase, X-Axis Motion
Revised, 3rd Revision - Xerox Internal Use Only
Image Quality

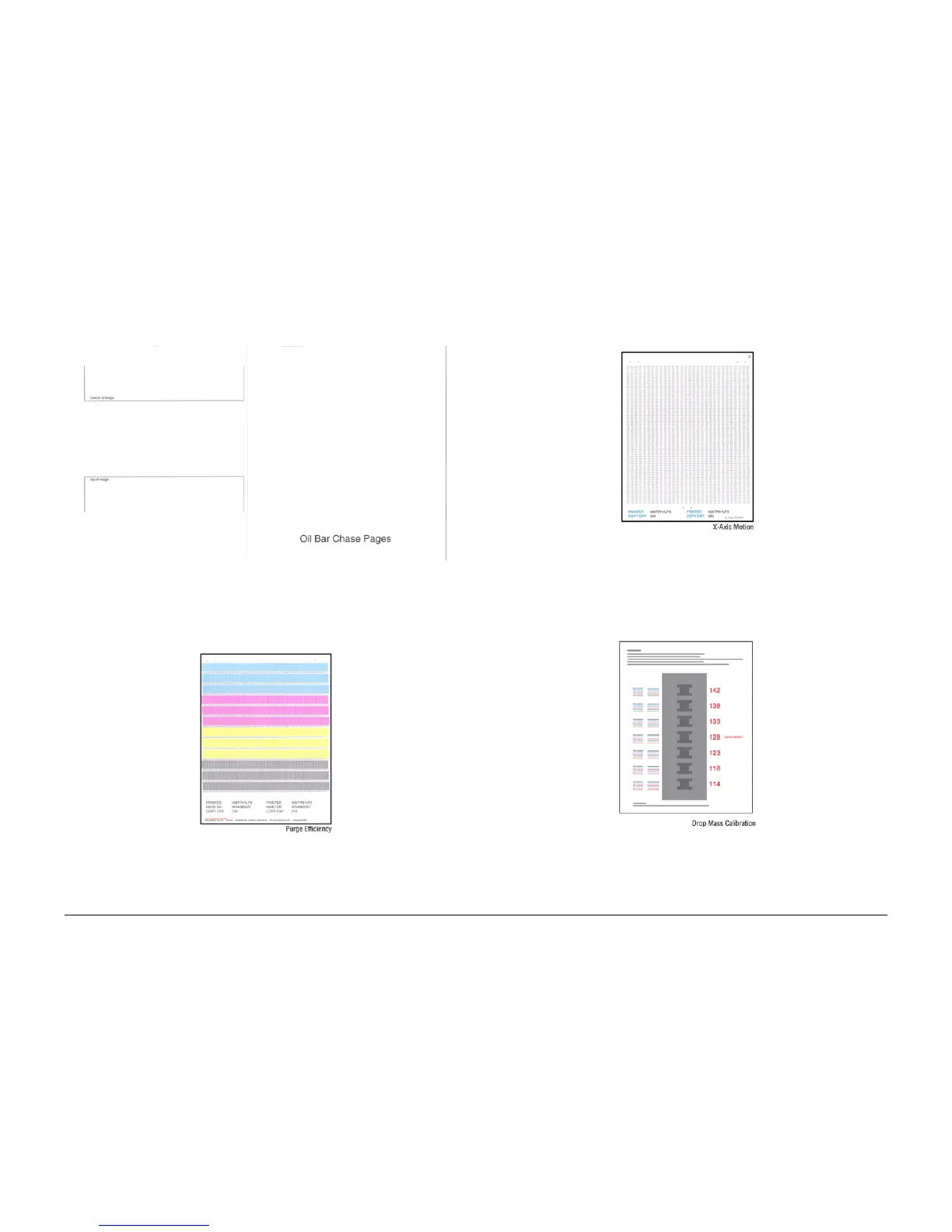

Oil Bar Chase
This test prints 3 pages. This print is used by Manufacturing.
Purge Efficiency
This print is used by Manufacturing and Engineering.
Figure 1 Purge Efficiency
X-Axis Motion
For X-Axis Motion problems, see Solid Fill Test Prints. This print is used by Manufacturing and
Engineering.
Figure 1 X-Axis Motion
Drop Mass Calibration
This print must be printed on Xerox Photo paper. Using a lower grade paper results in inaccu-
rate measurements.
Figure 1 Drop Mass Calibration
Figure 1 Oil Bar Chase (2 pages)
Figure 2 Oil Bar Chase (1 page)
