October 2012
4-65
ColorQube 8570/8870 Service Manual
REP 3.14
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 3.14 Takeaway Guide
Parts List on PL 3.1 Item 14
Removal
1. Remove Tray 2.
2. Use a flat tip screwdriver to release one of the latches of the Takeaway Guide and remove
the Guide from the printer frame.

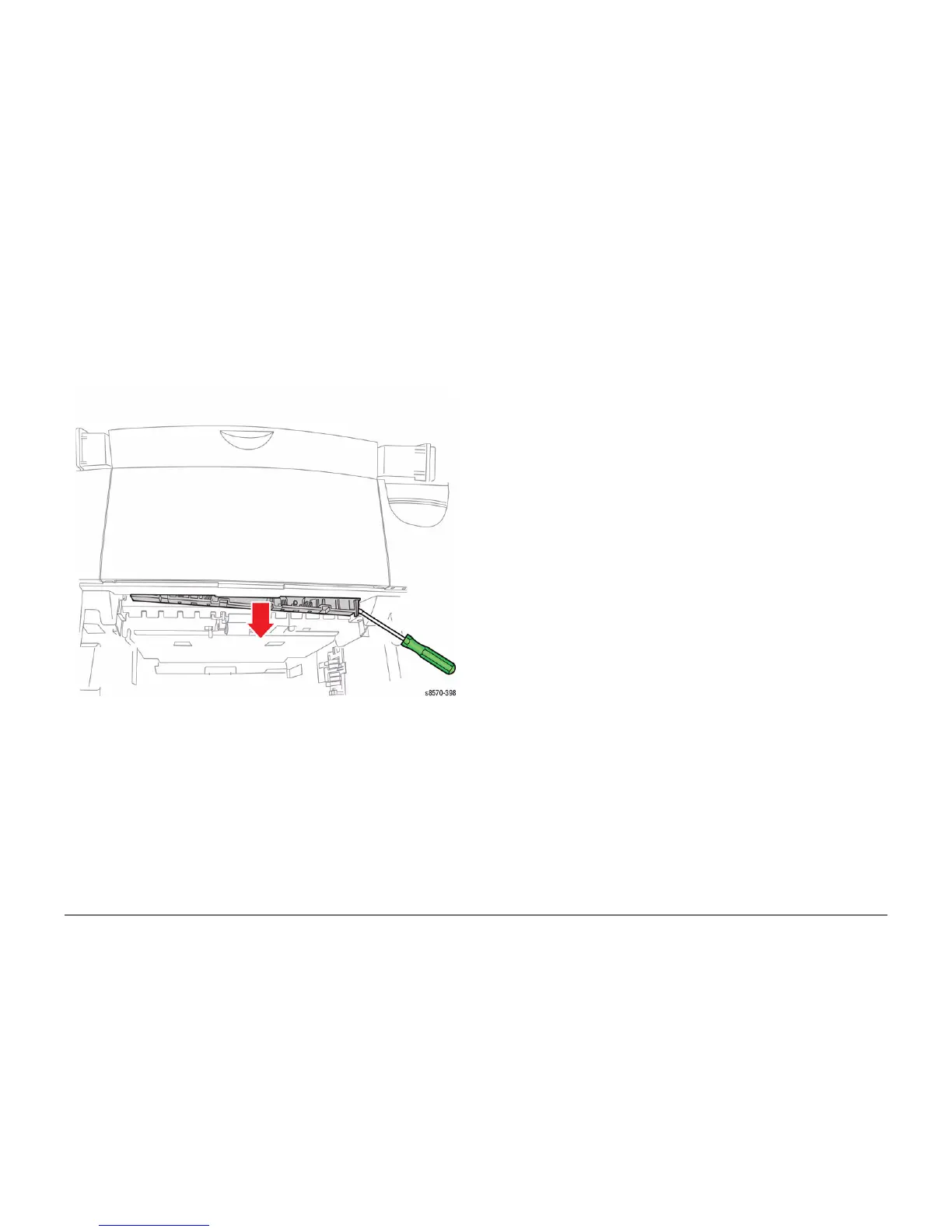

Figure 1 Removing the Takeaway Guide
