October 2012
4-48
ColorQube 8570/8870 Service Manual
REP 2.17, REP 2.20
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
Check that the right end of the Pivot Plate Shaft is in contact with the Ground Plate following
installation of the Drum Fan.
Be sure to connect the wiring harness connector P/J901 to the I/O Board.

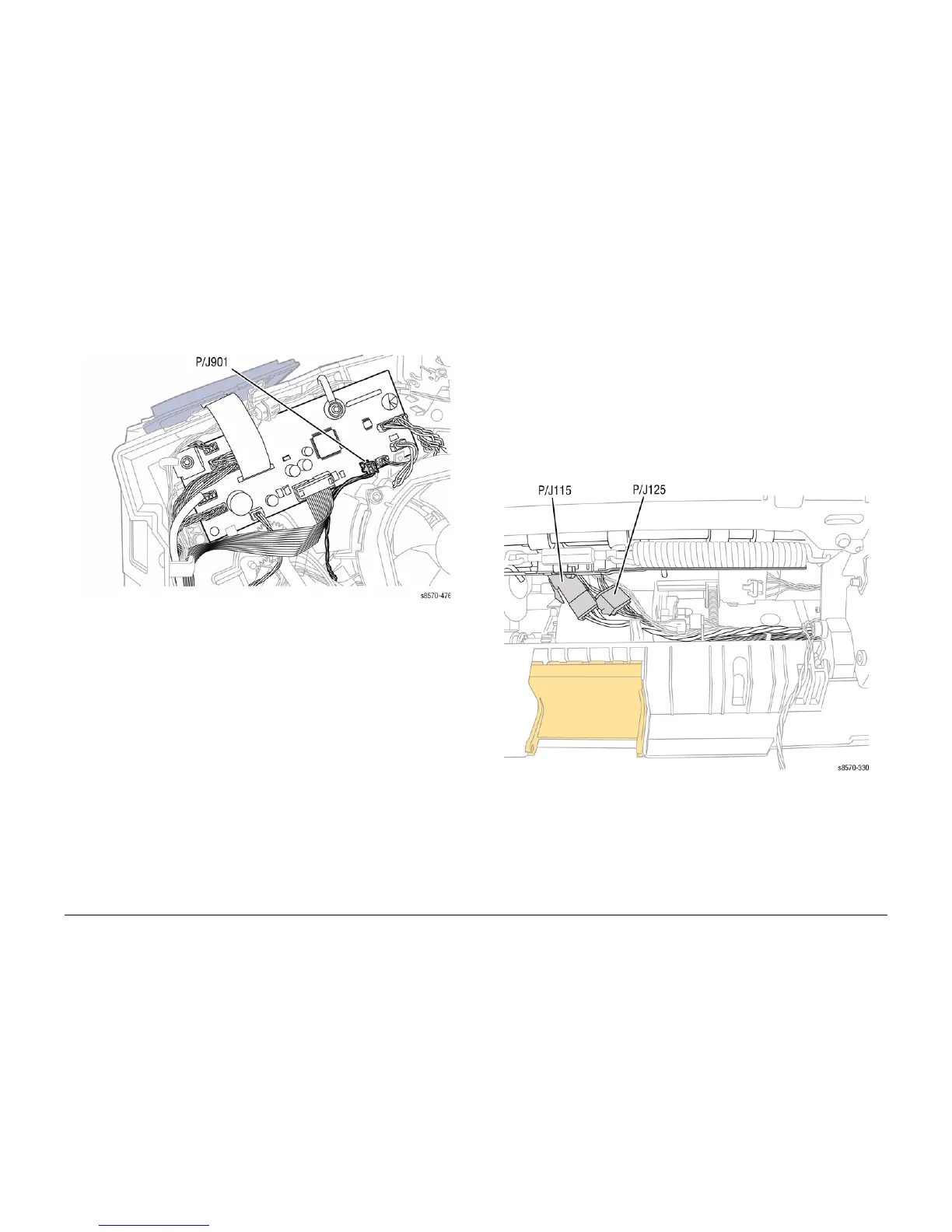

Figure 8 Reconnecting the Wiring Harness Connector
Perform the Homing the Printhead Forward to Print Position procedure (ADJ 1.2) and Process
Drive Alignment procedure (ADJ 1.3) before restoring printer power.
REP 2.20 Preheater and Deskew Assembly
Parts List on PL 2.1 Item 20
Removal
1. Remove the Front Door (REP 1.1).
2. Remove the Control Panel Cover (REP 1.5).
3. Remove the Right Side Cover (REP 1.11).
4. Remove the Lower Inner Duplex Guide (REP 3.2).
5. Remove the Inner Simplex Guide and Pre-Deskew Sensor (REP 3.1)
6. Disconnect the Paper Preheater wiring harness connector P/J115 and the Preheater
Sensor wiring harness connector P/J125 from the Preheater and Deskew Assembly.
NOTE: Note how the wiring harnesses are restrained to the printer frame bottom for rein-
stallation.
Figure 1 Disconnecting Wiring Harness Connectors
