ColorQube 8570/8870 Service Manual
REP 3.10
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 3.10 Pick Assembly and Retard Roller
Parts List on PL 3.1 Item 10
Removal
1. Remove Tray 2/3/4/5.

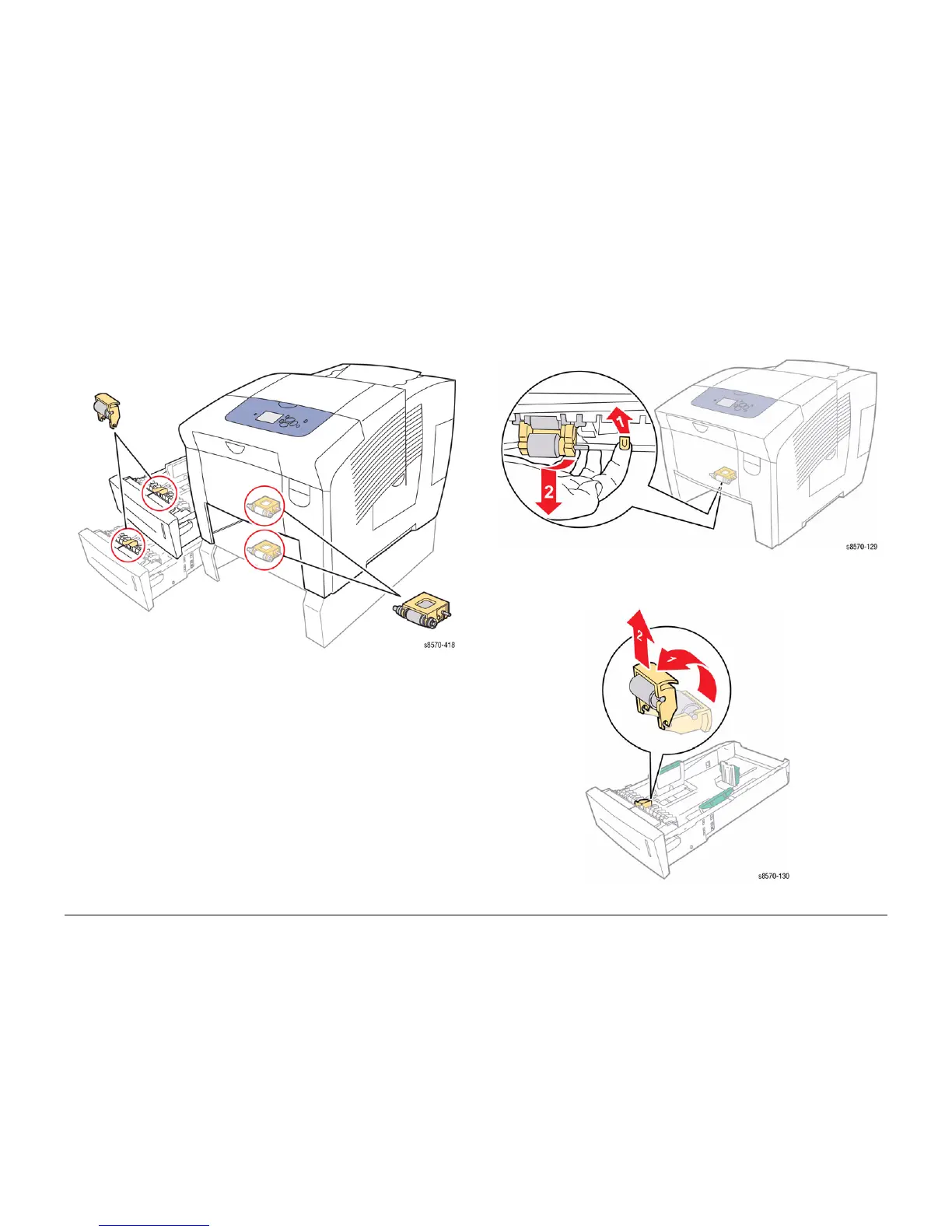

Figure 1 Removing Tray 2/3/4/5
2. Release the Pick Roller catch and pull downward to remove the Roller.
NOTE: The Pick Roller catch is located on the ceiling of the tray cavity about 1/4 of the
way across the unit from the right side, and about 5 in. (12.5 cm) back. When you forward
on the catch, the Roller swings down.
Figure 2 Removing the Pick Roller
3. Lift the Retard Roller vertically, then pull the Roller from the shaft in the tray.
Figure 3 Removing the Retard Roller
