Image Quality
Cyan Solid Fills
This test prints Cyan solid fills in five modes.
• 1x: Prints 1 page of Cyan solid fills single-sided.
• 10x: Prints 10 pages of Cyan solid fills single-sided.
• Continuous: Prints 999 pages of Cyan solid fills double-sided.
• Adhere Ink Stick: Prints 20 pages of Cyan solid fills double-sided.
• Cyan Refresh: Prints 20 pages of Cyan solid fills double-sided.

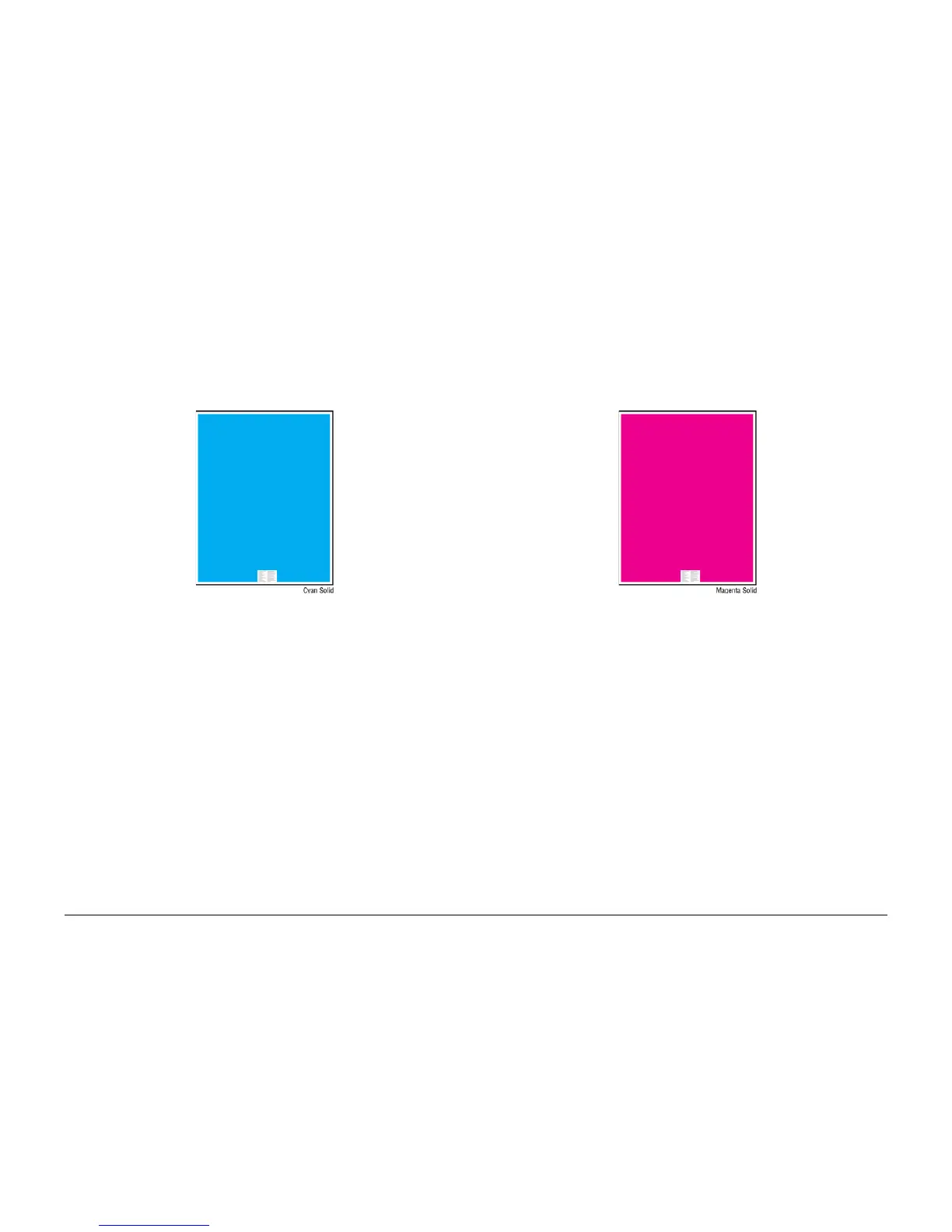

Figure 1 Cyan Solid Fills
Magenta Solid Fills
This test prints magenta solid fills in five modes.
• 1x: Prints 1 page of Magenta solid fills single sided.
• 10x: Prints 10 pages of Magenta solid fills single sided.
• Continuous: Prints 999 pages of Magenta solid fills double-sided.
• Adhere Ink Stick: Prints 20 pages of Magenta solid fills double-sided.
• Magenta Refresh: Prints 20 pages of Magenta solid fills double-sided.
Figure 1 Magenta Solid Fills
