ColorQube 8570/8870 Service Manual
PL 6.1
Parts List
Xerox Internal Use Only - Revised, 3rd Revision

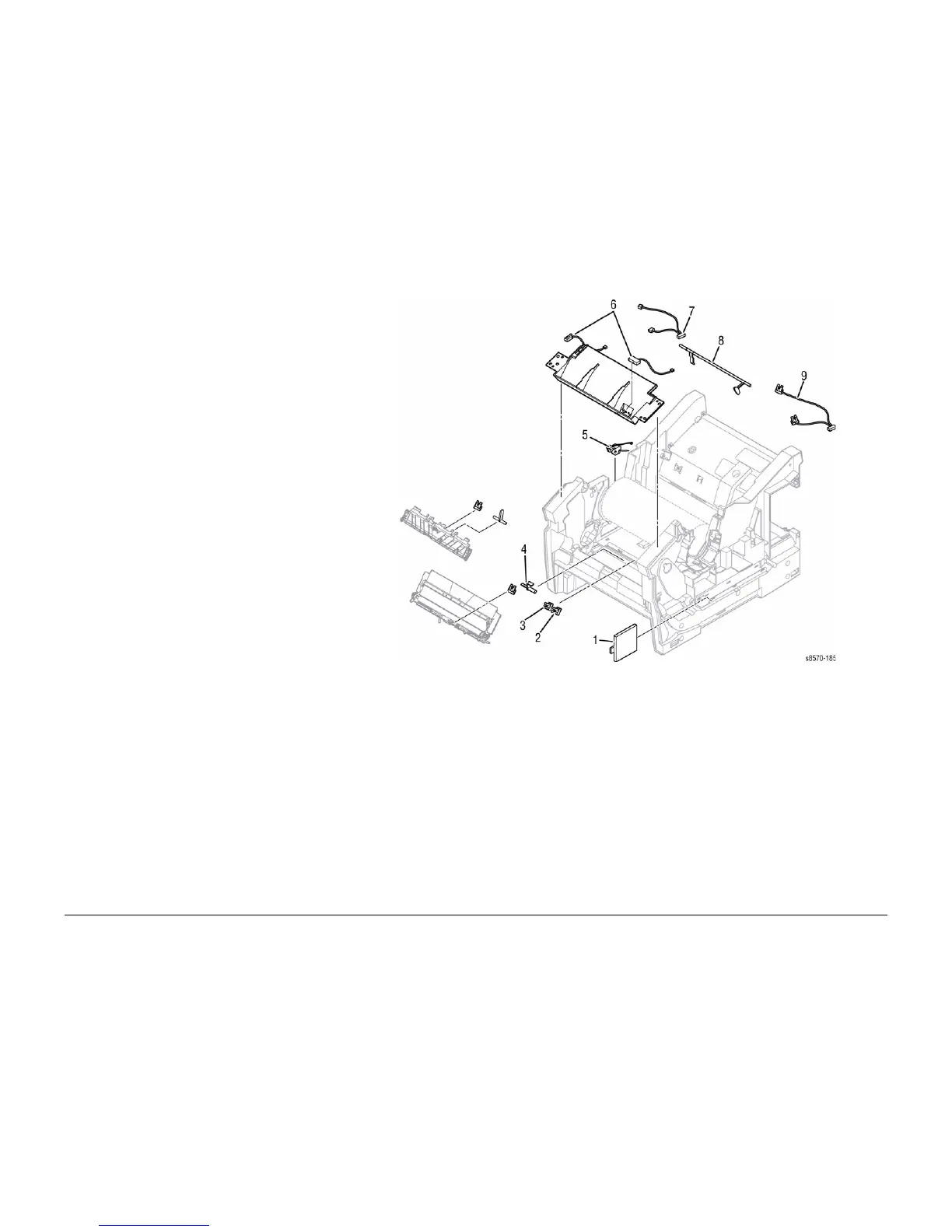

PL 6.1 Sensors and Actuators
Item Part Description
1 130K75230 Sensor, Paper Size Switch (Paper
Tray, Sensor Assembly)
2 130E11530 Optical Sensor Generic (Snap In)
(No Paper Sensor/ Paper Present
Sensor)
3 130E11530 Optical Sensor Generic (Snap In)
(Tray Lift/Paper Height Sensor)
4 130E11550 Paper Present Flag
5 930K01380 Sensor, Drum Temperature
6 110E20390 (Safety) Front Door/Exit Door
Interlock Switch
7 130E12620 Sensor, Waste Tray Opto
8 386732680 Engine Exit Flag
9 930K01500 Exit Module Sensor Assembly
