Xerox COLORQUBE 8870

October 2012
4-14
ColorQube 8570/8870 Service Manual
REP 1.15, REP 1.16
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 1.15 Waste Tray
Parts List on PL 1.1 Item 15
Removal
1. Open the Drum Maintenance Door.
2. Pull the Waste Tray out from the printer.

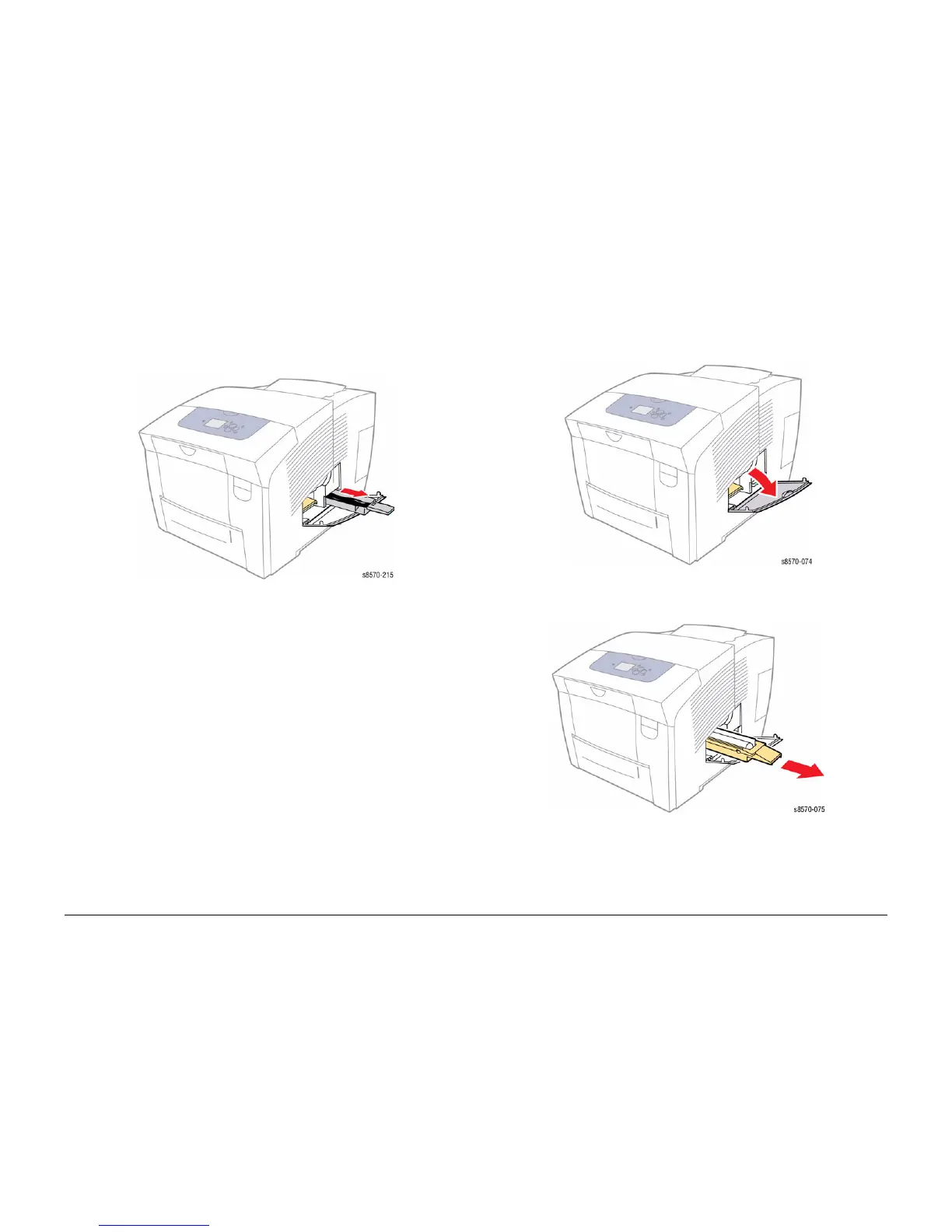

Figure 1 Removing the Waste Tray
REP 1.16 Drum Maintenance Unit
Parts List on PL 1.1 Item 16
Removal
1. Open the Drum Maintenance Door.
Figure 1 Opening the Drum Maintenance Door
2. Pull the Maintenance Unit out from the printer.
Figure 2 Removing the Drum Maintenance Unit
