October 2012
xxii
ColorQube 8570/8870 Service Manual
Physical Dimensions and , Information Pages, Trou-
Revised, 3rd Revision - Xerox Internal Use Only
Introduction
2. Mounting surface flatness must be within the specified range.
3. The printer must not be tipped or tilted more than 10 degrees angle.

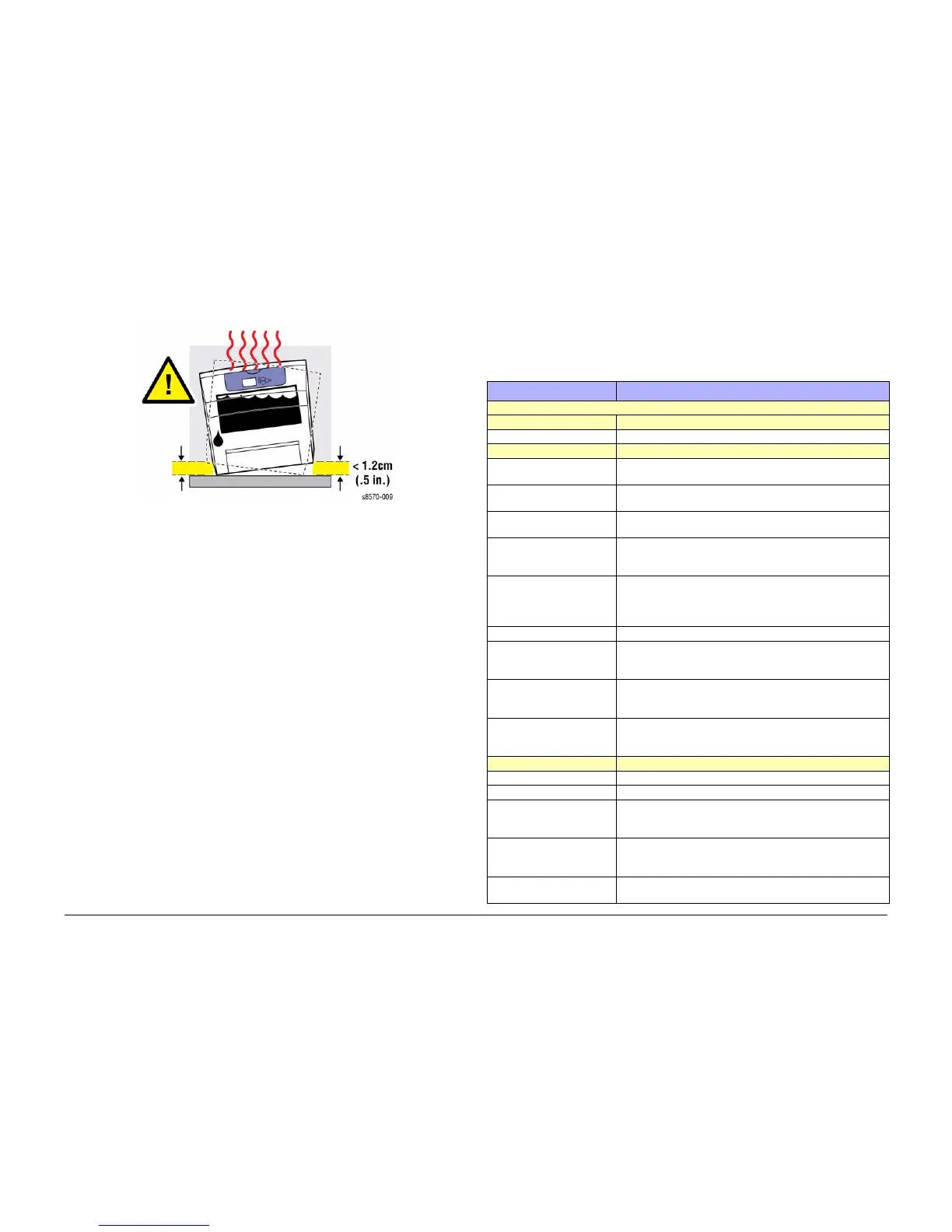

Figure 2 Tilting Specifications
Information Pages, Troubleshooting Pages, and Test
Prints
The following Information, Troubleshooting, and Test Prints Pages are available in the Col-
orQube 8570/8870 printer. These pages can be accessed through the Control Panel at various
locations.
Table 1 Page Description
Page Control Panel Menu Access and Description
Information Pages
Menu Map Control Panel Menu -> Information -> Menu Map
Menu Map Lists all main and second level Control Panel menu headings.
Information Pages Control Panel Menu -> Information -> Information Pages
Configuration Page Lists all information about the current configuration of the
printer.
Paper Tips Page Lists supported paper and provides tips on setting up and load-
ing paper trays.
Supplies Usage Page Provides coverage information and part numbers for reordering
supplies.
Connection Setup Page Contains information about setting up the printer on a network,
or connecting directly to a computer on a Windows or Macin
-
tosh.
Startup Page Contains basic printer configuration and network information.
The Startup Page prints during the startup sequence when
enabled, or if the printer detects an error during the Power-On
Self Test (POST).
Usage Profile Provides summary page of printer usage information.
PostScript Font List Contains list of PostScript fonts available within the printer or
installed on the printer’s Hard Drive, if the optional Hard Drive
is installed.
PCL Font List Contains list of PCL fonts available internally within the printer
or installed on the printer’s Hard Drive, if the optional Hard
Drive is installed.
Disk Directory Prints pages listing all downloaded files on the Hard Drive,
such as fonts and macros. This feature requires optional Hard
Drive.
Sample Pages Control Panel Menu -> Information -> Sample Pages
Graphics Demonstration Prints a page containing a graphic image.
Office Demonstration Prints a page containing text.
2-Sided Demonstration This feature requires automatic 2-sided printing option. Prints
two pages on one sheet containing a graphic image on one
side, and text on the other side.
Print Mode Demonstration Prints three copies of the Office Demonstration Page in each
print-quality mode (Fast Color, Standard, Enhanced, Photo) to
demonstrate printer speed and resolution.
CMYK Sampler Pages Prints spectrum of color rectangles with the values of each
component color (Cyan, Magenta, Yellow, Black).
To Next Page
