REP 2.21
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
NOTE: In the following step, the Media Release Blade, Transfix Roller, Transfix Roller
Shaft, and the two Transfix Load Arms are removed as a single assembly.
CAUTION
Be careful not to lose the rubber O-ring. (The O-ring is for noise dampening during strip.)
13. Remove the Clevis Pins from the left and right Transfix Load Arms to release the Transfix
Roller Assembly with Transfix Load Arms from the chassis.

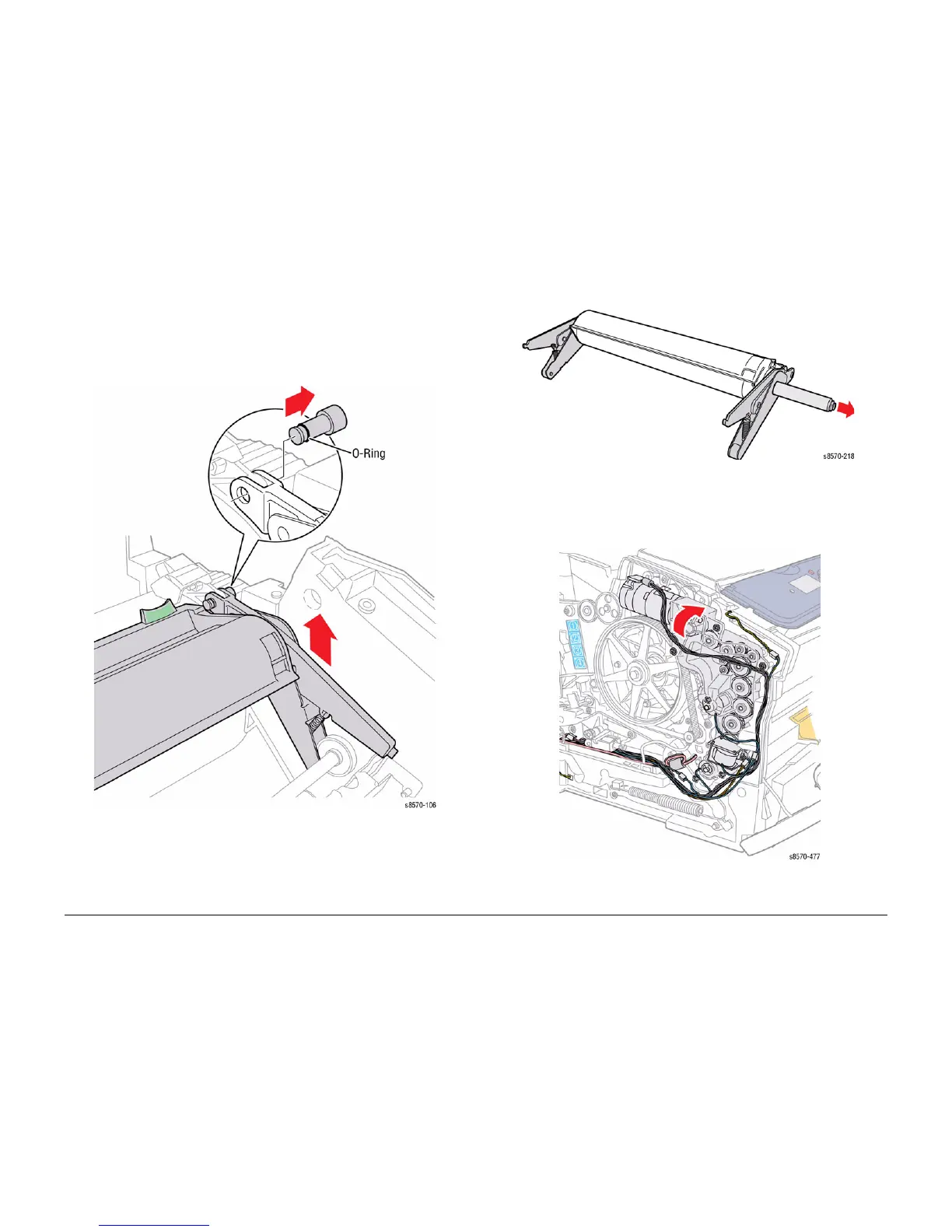

Figure 3 Removing the Transfix Load Arm Clevis Pins
14. Pull the Shaft out from the Transfix Roller and remove the Transfix Arms.
Figure 4 Removing the Transfix Arm
Replacement
NOTE: Be sue to tighten the six screws to secure the Media Drive Assembly.
Figure 5 Tightening the Media Drive Assembly Screws
