Xerox COLORQUBE 8870

October 2012
4-102
ColorQube 8570/8870 Service Manual
REP 6.7
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
14. Disconnect the Waste Tray Detect Sensor wiring harness connector P/J102 from the I/O
Board.
15. Unlace the Sensor wiring harness from the retainers and guides.
16. Release the hooks that secure the Sensor to the cover and remove the Sensor.

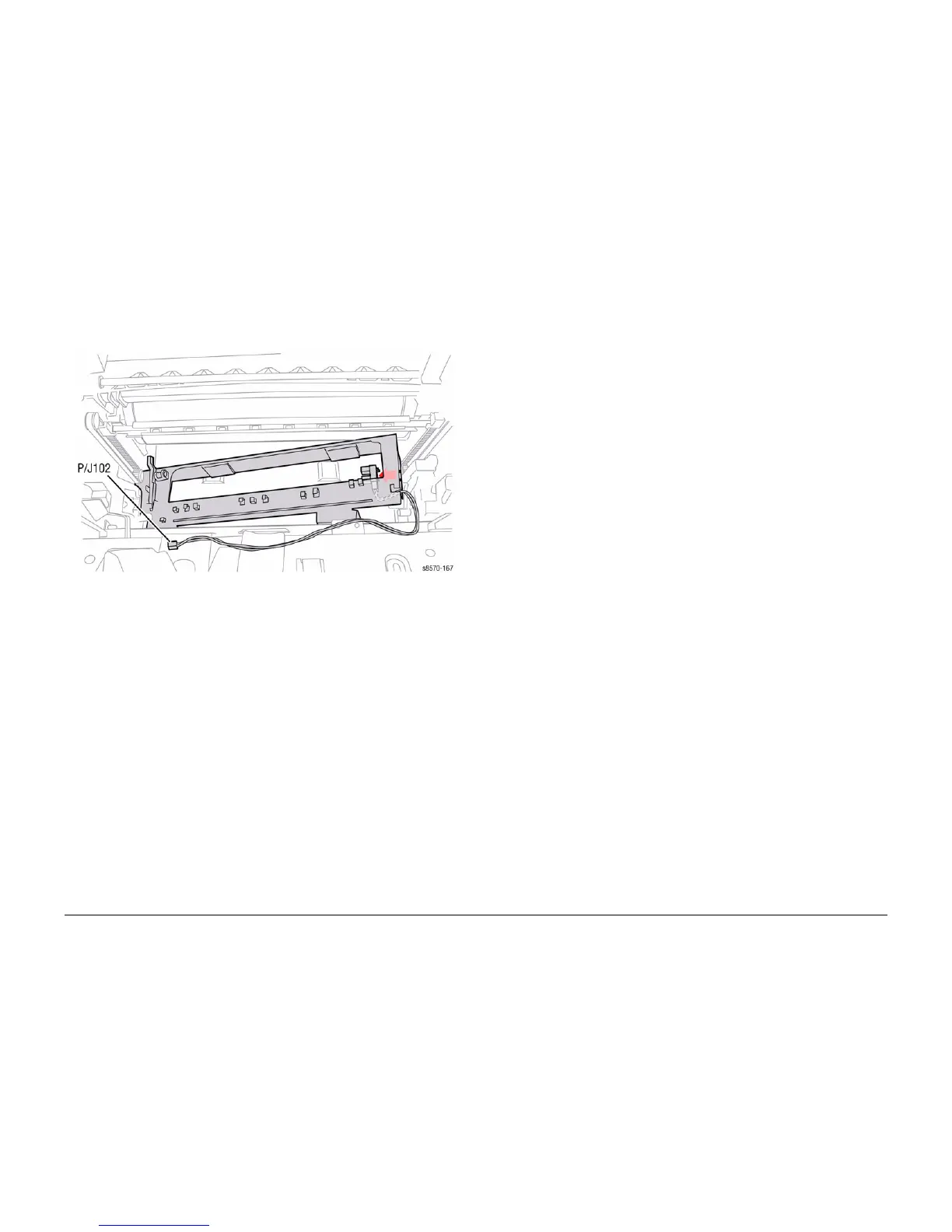

Figure 4 Removing the Waste Tray Detect Sensor
Replacement
Perform the Homing the Printhead Forward to Print Position procedure (ADJ 1.2) and Process
Drive Alignment procedure (ADJ 1.3) before restoring printer power.
