October 2012
7-15
ColorQube 8570/8870 Service Manual
Wiring Diagrams
Wiring Data
Xerox Internal Use Only - Revised, 3rd Revision
Wiring Diagrams
System Block

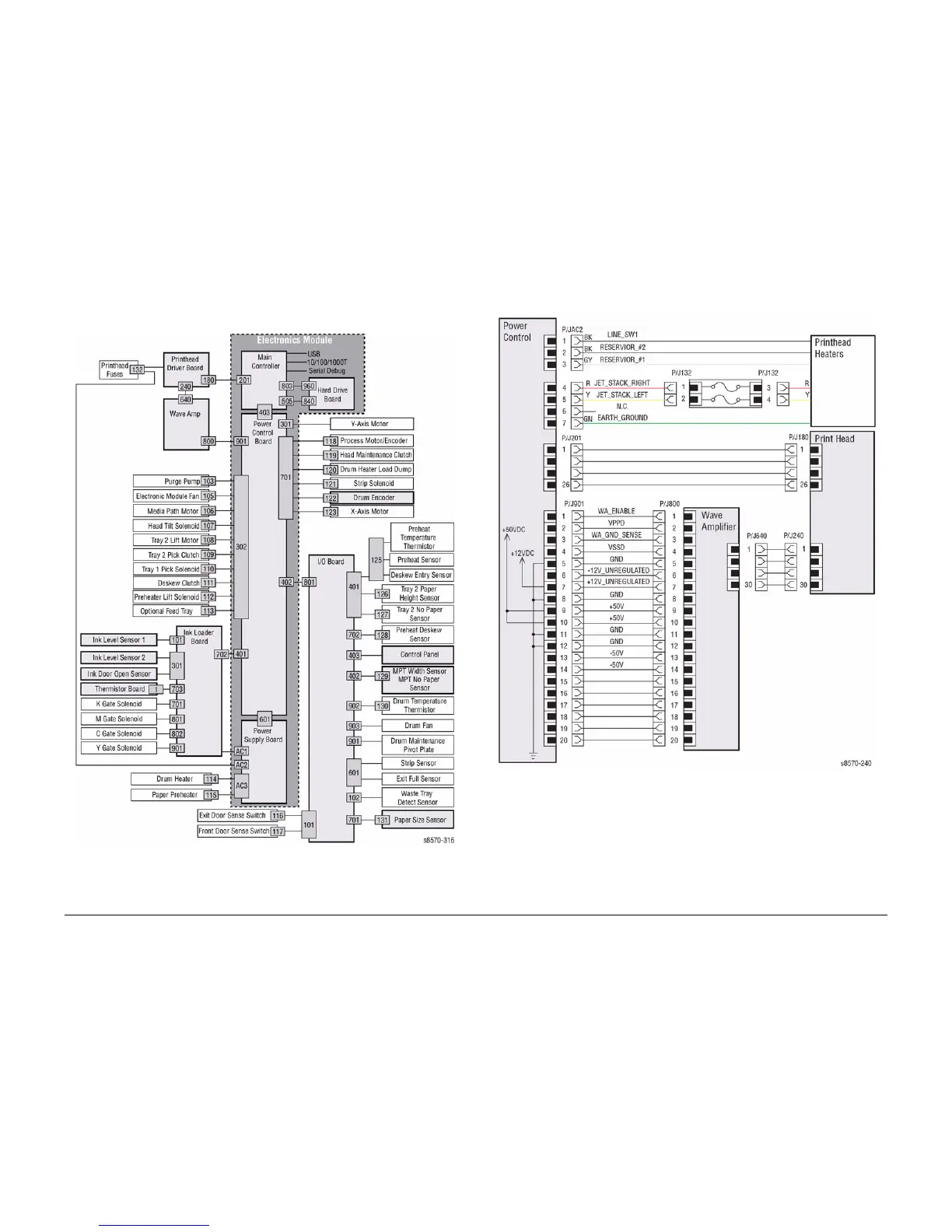

Figure 1 System Block Diagram
Wave Amplifier, Print Head, Print Head Heaters
Figure 2 Wave Amplifier, Printhead, Print Head Heaters
To Next Page
