October 2012
7-18
ColorQube 8570/8870 Service Manual
Wiring Diagrams
Revised, 3rd Revision - Xerox Internal Use Only
Wiring Data
Drum Heater Load Dump, Motors, Head Maintenance Clutch, Strip
Solenoid

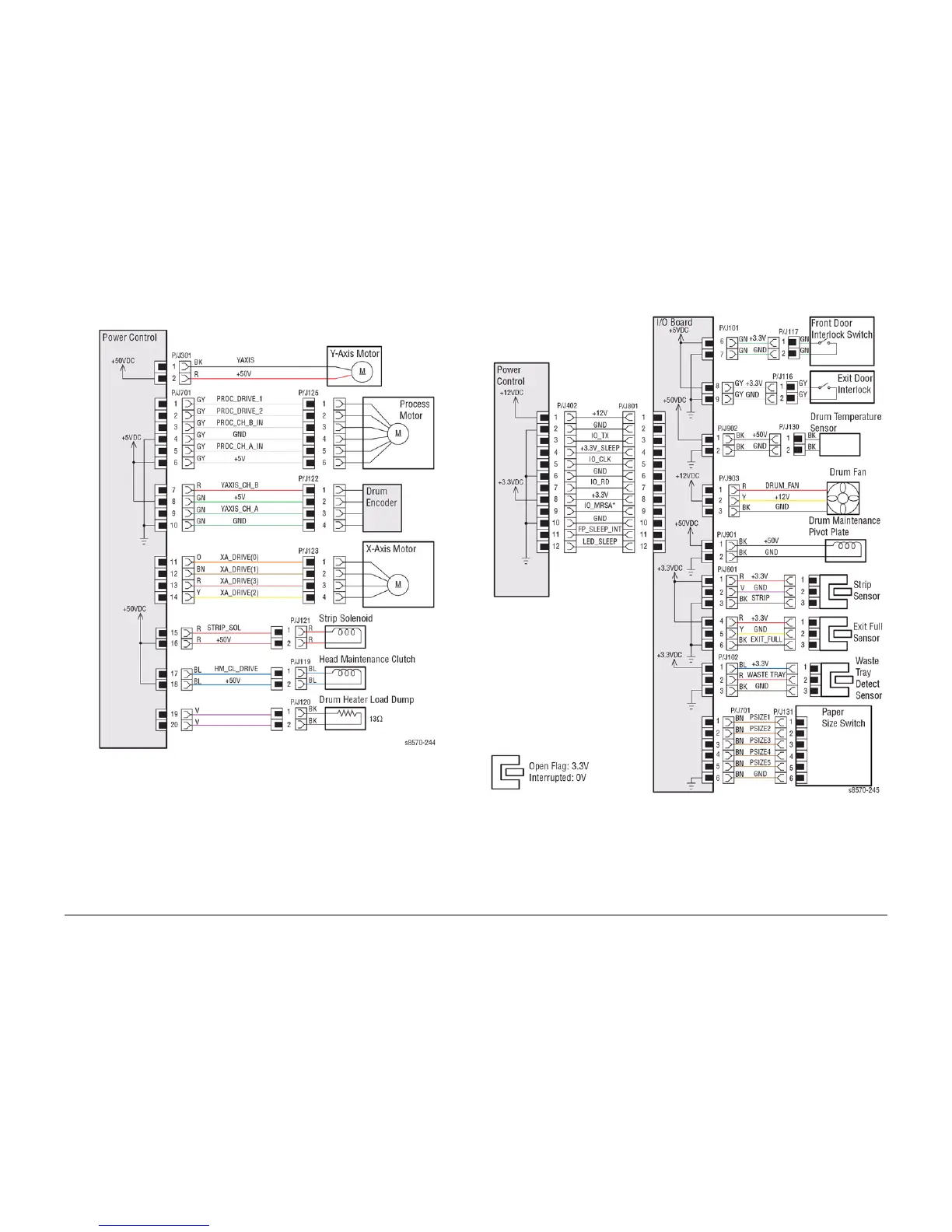

Figure 7 Drum Heater Load Dump, Motors, Head Maintenance Clutch, Strip Solenoid
I/O Board, Sensors (1 of 2)
Figure 8 I/O Board, Sensors (1 of 2)
To Next Page
