Xerox COLORQUBE 8870 Service Manual

October 2012
8-22
ColorQube 8570/8870 Service Manual
Print Process
Revised, 3rd Revision - Xerox Internal Use Only
Theory of Operation
The Ink Stick Gate Solenoid (one for each color) prevents movement of the ink stick until it is
sensed. When the correct ink stick is inserted, the Solenoid is activated to lower the gate. The
Configuration Sensor is activated to determine when the ink stick has traveled past the gate.
When the ink stick has moved sufficiently forward, the gate is returned to the Locked position.
The gate will also lower when an ink stick is moved back up to the gate to allow removal. When
you move an ink stick back, an ink stick back up the ink channel and contact the raised gate,
the SKU notch A (or notch E on Enterprise ink sticks) will be presented to the lower-most SKU
sensor. Notch A and E are always have material present (logical 1). The transition of the sen
-
sor from no material to material present signals the printer to lower the gate.

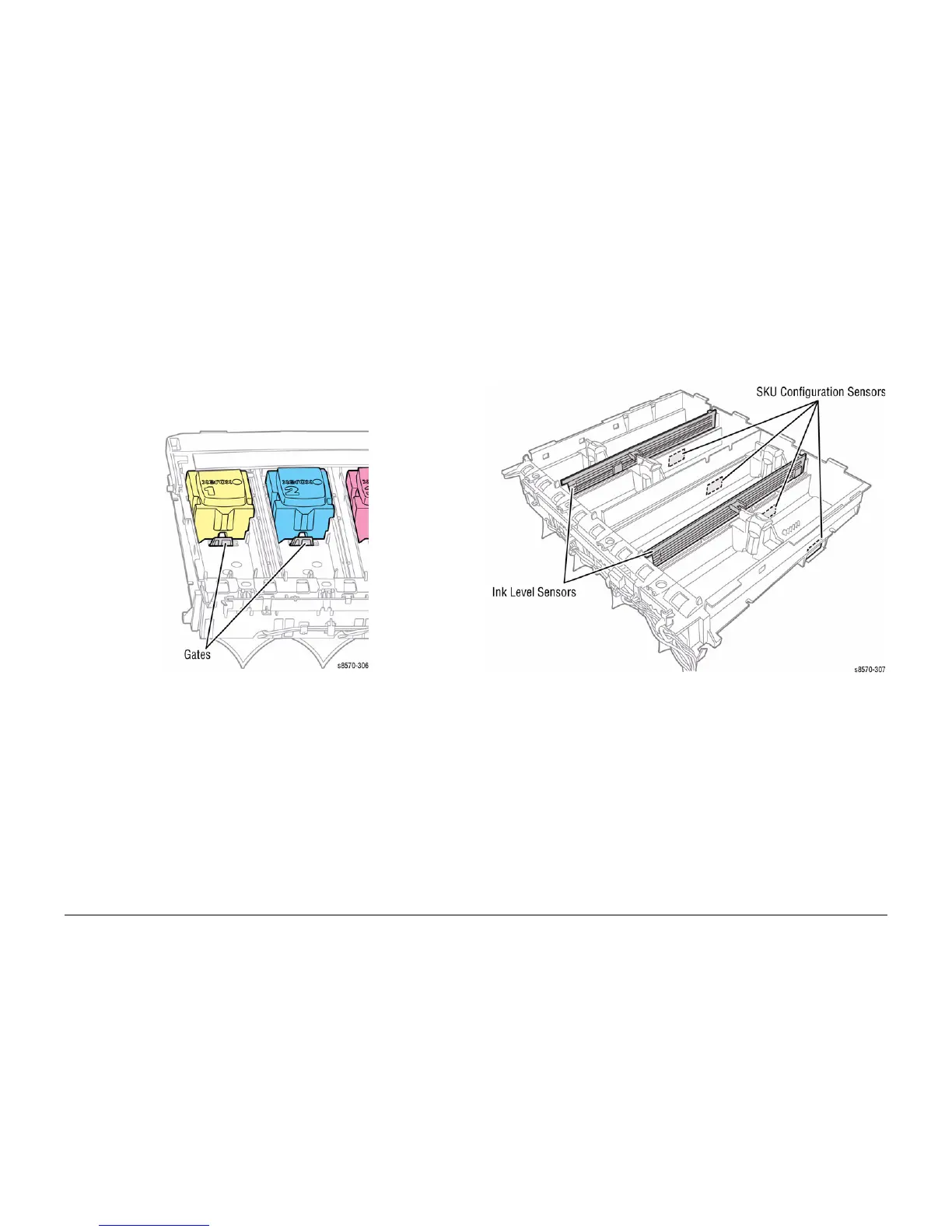

Figure 3 Ink Stick Gate
The Chute Level Sense detects the Ink Stick when the Ink Loader Door is closed and alert the
user to install more ink sticks before the current sticks are completely consumed. The Stock
Keeping Unit (SKU) Configuration Sensor detects the presence or absence of ink thereby
determining the ink SKU.
The Ink Level Sensors inside the Printhead detect that the Printhead has run out of ink.
Figure 4 Chute Level Sense and SKU Configuration Sensors

Xerox COLORQUBE 8870 Specifications

General

Wi-Fi	-
Network ready	Yes
Security algorithms	HTTPS, SSL/TLS
Print technology	Laser
Maximum resolution	2400 x 2400 DPI
Time to first page (black, normal)	5 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum duty cycle	120000 pages per month
Recommended duty cycle	15000 pages per month
Page description languages	PCL 5c, PostScript 3
Maximum internal memory	2048 MB
Sound power level (standby)	24 dB
Display	LCD
Certification	EMC Directive 2004/108/EC, FCC Part 15, Class A, Low Voltage Directive 2006/95/EC, RoHS Directive 2002/95/EC
Total input capacity	625 sheets
Total output capacity	350 sheets
Maximum input capacity	2200 sheets
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 220
Paper tray media types	Bond paper, Card stock, Coated paper, Envelopes, Glossy paper, Labels, Photo paper, Plain paper, Recycled paper, Transparencies
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Business cards, Envelopes, Greeting cards, Heavyweight paper, Labels, Letterhead, Plain paper, Recycled paper, Transparencies
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	107 W
Power consumption (printing)	252 W
Power consumption (PowerSave)	47 W
Package weight	35811 g
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Depth (imperial)	20.5 \
Width (imperial)	16 \
Height (imperial)	14.5 \
Networking features	Gigabit Ethernet
Networking standards	IEEE 802.1x
Minimum storage drive space	160 GB
Compatible operating systems	HP UX 11, HP UX 11i, Linux, Mac OS 10.5+, Solaris 10, Solaris 9, Windows 2003 Server, Windows 2008 Server, Windows 7, Windows Vista, Windows XP, Windows XP Pro

Weight and Dimensions

Depth	521 mm
Width	406 mm
Height	368 mm
Dimensions (WxDxH)	406 x 521 x 368 mm
