ColorQube 8570/8870 Service Manual
Cleaning Procedures
Revised, 3rd Revision - Xerox Internal Use Only
Service Call Procedures
Clean the Paper Release Blade
1. Open the Exit Cover.

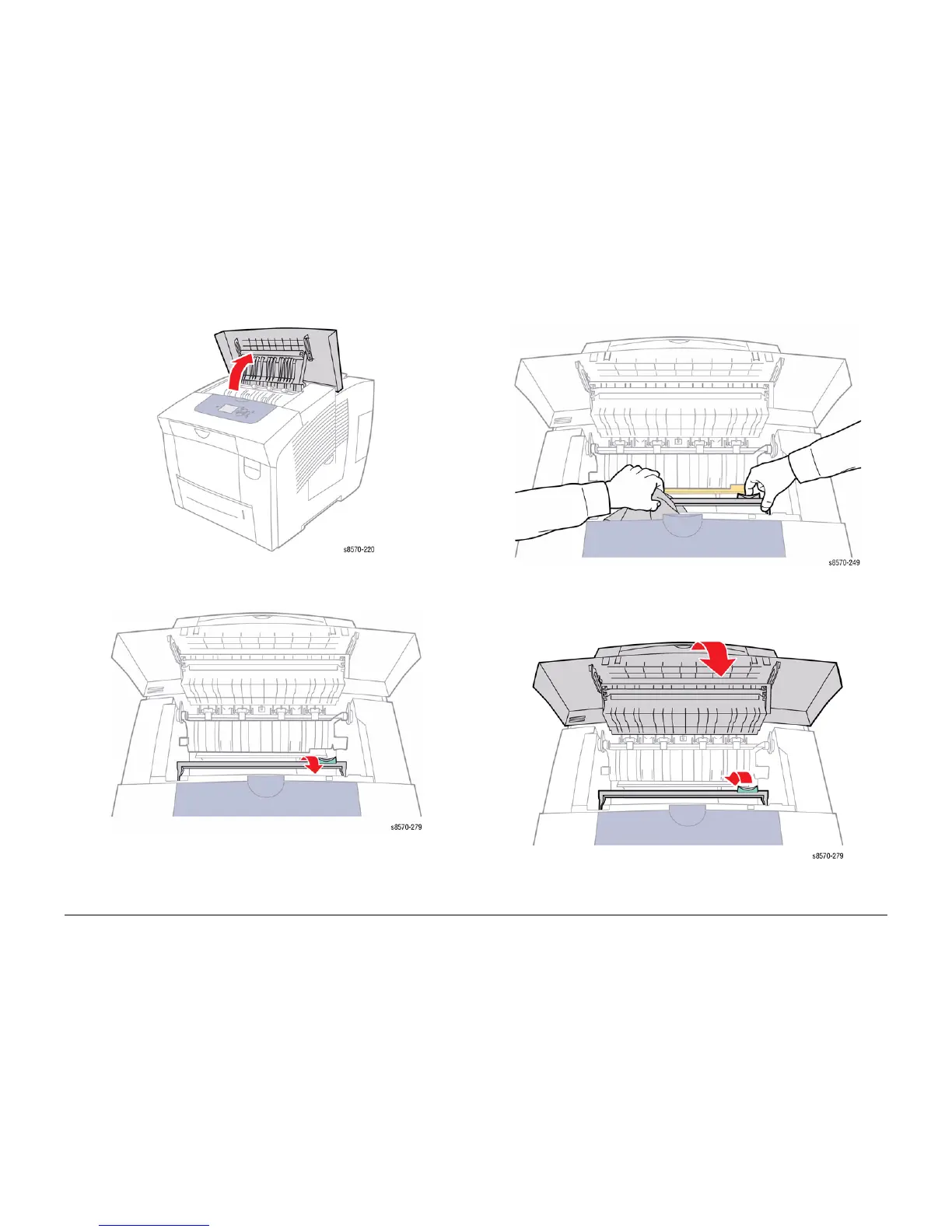

Figure 8 Opening the Exit Cover
2. Lift the Paper Guide toward the front of the printer.
Figure 9 Opening the Lower Paper Guide
3. Use a moistened lint-free cloth to wipe the plastic paper release blade on the Lower
Paper Guide.
Figure 10 Cleaning the Paper Release Blade
4. Lower the Paper Guide to its original position.
5. Close the Exit Cover.
Figure 11 Lowering the Paper Guide and Closing the Exit Cover
