Xerox COLORQUBE 8870

October 2012
2-46
ColorQube 8570/8870 Service Manual
92,808 ~ 92,813, 92,900
Revised, 3rd Revision - Xerox Internal Use Only
Fault Messages and Codes

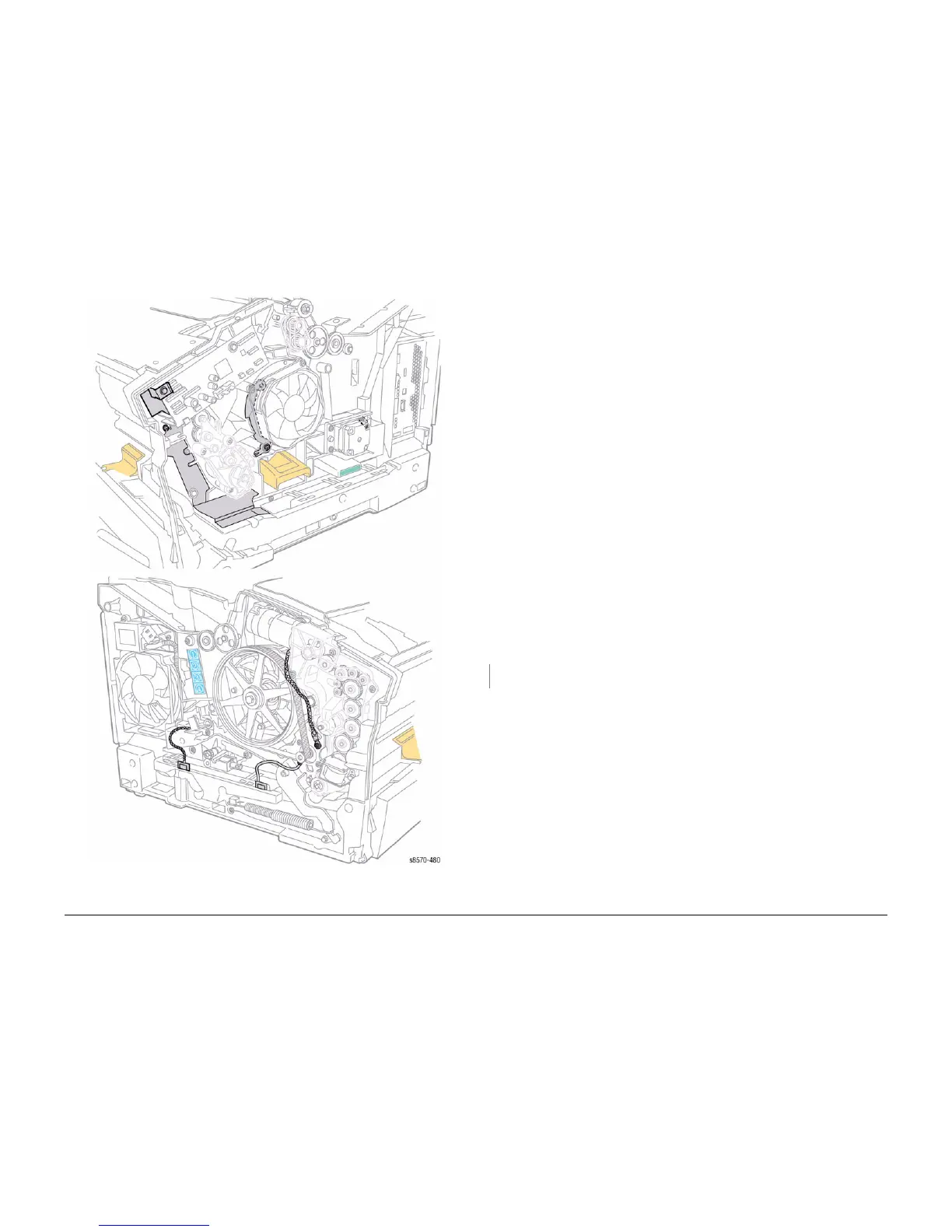

Figure 3 Printer Ground Locations
92,900 Ink Loader Disconnect
An Ink Loader error has occurred. The following troubleshooting procedure applies to this
error.
Initial Actions
• Reboot the printer and verify the error persists.
• Verify the Ink Loader cable connection to the Ink Loader and Electronics Module.
• If the problem persists, perform the following procedure.
Troubleshooting Reference
Applicable Parts (Chapter 5 - Parts List)
• Ink Loader & Bezel, PL 1.1 Item 8
• Electronics Module, PL 5.1 Item 1
• Power Control Board, PL 5.1 Item 8
• Cable, Ink Loader Data, PL 5.1 Item 11
• Cable, I/O Board Data, PL 5.1 Item 14
Wiring and Plug/Jack References (Chapter 7 - Wiring Data)
• Figure 2, Right Side Electronics Module P/J Locations
• Figure 5, Ink Level Sensors, Gate Solenoids, Ink Loader Board
• Figure 11, Ink Loader Board P/J Locations
Procedure
Check the Ink Loader Board wiring harness connectors P/J702 & P/J401. Are the connec-
tions secure and undamaged?
YN
Reseat and/or replace the wiring harness.
Replace the Power Control Board (REP 5.6) (Electronics Module.
Table 1 Applicable Fault Codes
92,900 Ink Loader Disconnect
