Xerox PHASER 6130 Service Manual

Phaser 6130 Color Laser Printer Service Manual 3-51
Error Messages and Codes
Transfer Unit Errors
CTD Sensor Error/CTD Sensor/Check Unit
Applicable Chain Link
■ 092-310: CTD Sensor Error
Initial Actions
■ Cycle printer power.
■ If the problem persists, follow the procedure below.
Troubleshooting References Table
Applicable Parts Wiring and Plug/Jack Map References
■ Left Side Harness, PL3.1.18
■ MCU Board, PL8.2.13
■ Transfer Unit, PL6.1.7
■ “Map 1 - Transfer Unit, Control Panel,
Imaging Unit, Dispenser, Fuser” on
page 10-8
■ “Map 4 - Toner Dispenser Motors, HVPS,
MCU” on page 10-11
■ “Xerographic” on page 10-24
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the ADC Sensor Window
Open the Front Cover.
Is the ADC Sensor window dirty?
Go to step 2. Go to step 3.
2 1.Turn off the power, and gently wipe
the ADC Sensor window with a clean
dry cloth or cotton swab.
2.After wiping the window, close the
Front Cover.
Does the error still occur when the
power is turned OFF and ON?
Go to step 3. Complete.
3 Check the Transfer Unit belt.
Open the Front Cover.
Is there any damage on the belt
surface?
Replace the
Transfer Unit.
(page 8-41.)
Go to step 4.

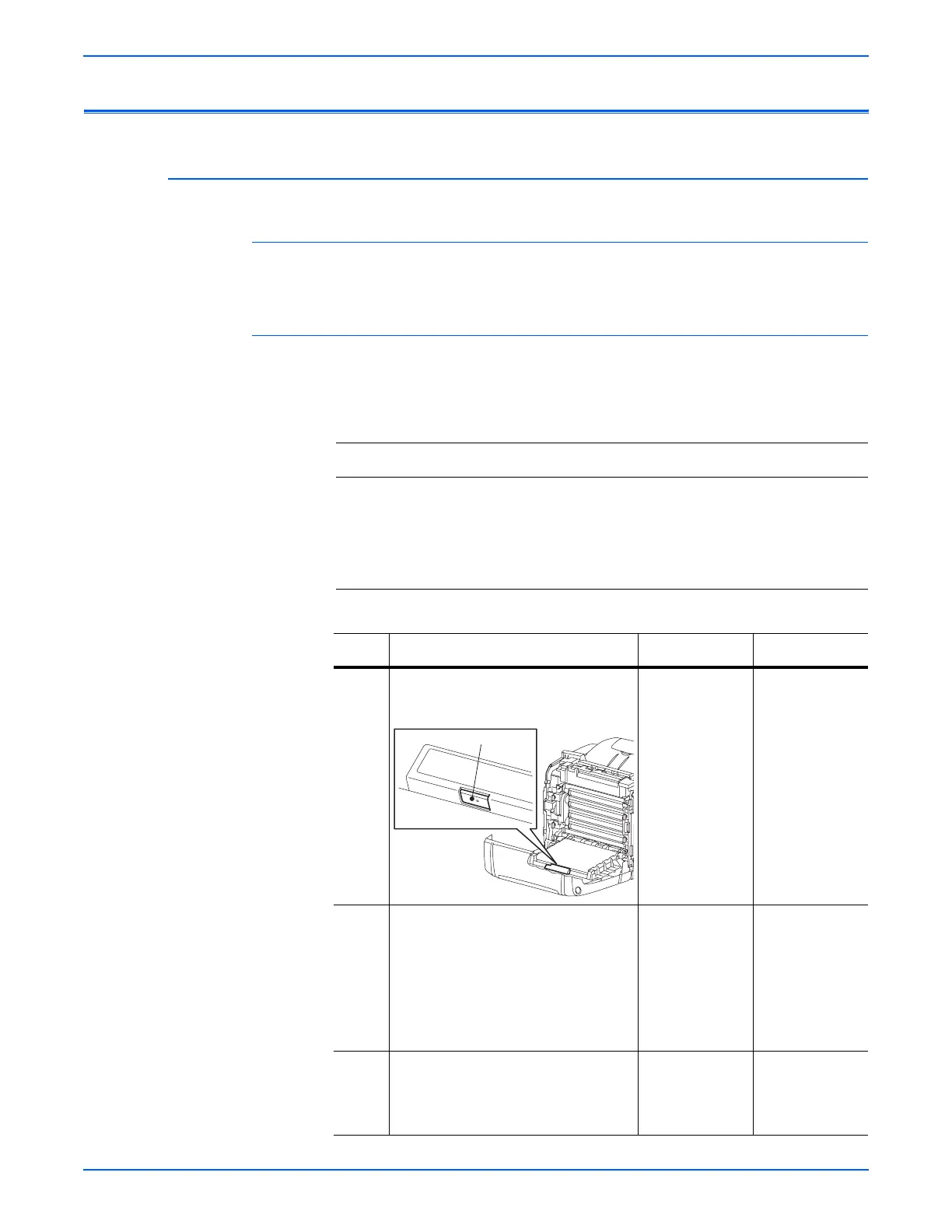

s6130-203
ADC Sensor window

Xerox PHASER 6130 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	25 s
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Maximum internal memory	1152 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Media weight (tray 1)	64 - 220 gsm
Multi-Purpose Tray media weight	64 - 164 g/m²
Functions	Print
I/O ports	10/100BaseTX Ethernet, USB 2.0
Device manager	Auto IP, BOOTP/RARP, DHCP, PrintingScout Alert Notification, SNMP v.2, Xerox CentreWare Internet Services Embedded Web Server, Email alerts
Package length	558.79 mm
Depth (imperial)	17.5 \
Width (imperial)	15.75 \
Height (imperial)	15.3 \
Security features	Secure Print
Power requirements	220–240 VAC, 50/60 Hz
Networking features	10/100 Base-TX Ethernet
Color space standard	ICM, ICC, PANTONE Color Approved
Enhanced scan resolution	600 x 600 DPI
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	280 W
Compatible operating systems	Windows 2000/2003 Server/XP/XP Home Edition (SP1 +)/ Vista, Mac OSX 10.2 +, Linux: SUSE 9.2 +/Turbo Linux 10/ Red Hat ES3 +/Fedora Core/Yellow Dog 3.X
Acoustic power emissions (standby)	43 dB
Non-operating relative humidity (non-condensing)	15 - 85 %
Acoustic power emissions (active, print, copy or scan)	64.6 dB
PCL fonts	81
Printer fonts	PCL, PostScript
Country of origin	China
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Number of PostScript fonts	136
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Certification	FCC 15 B, UL 60950-1/CSA 60950-1-03, CE Mark 73/23/EEC, 89/336, EEC, Section 508 ADA
Package width	533.39 mm
Package height	507.99 mm
Package weight	22226.4 g

Weight and Dimensions

Depth	445 mm
Width	400 mm
Height	389 mm
Dimensions (WxDxH)	400 x 394 x 389 mm
