Xerox PHASER 6130 Service Manual

A-2 Phaser 6130 Color Laser Printer Service Manual
Reference

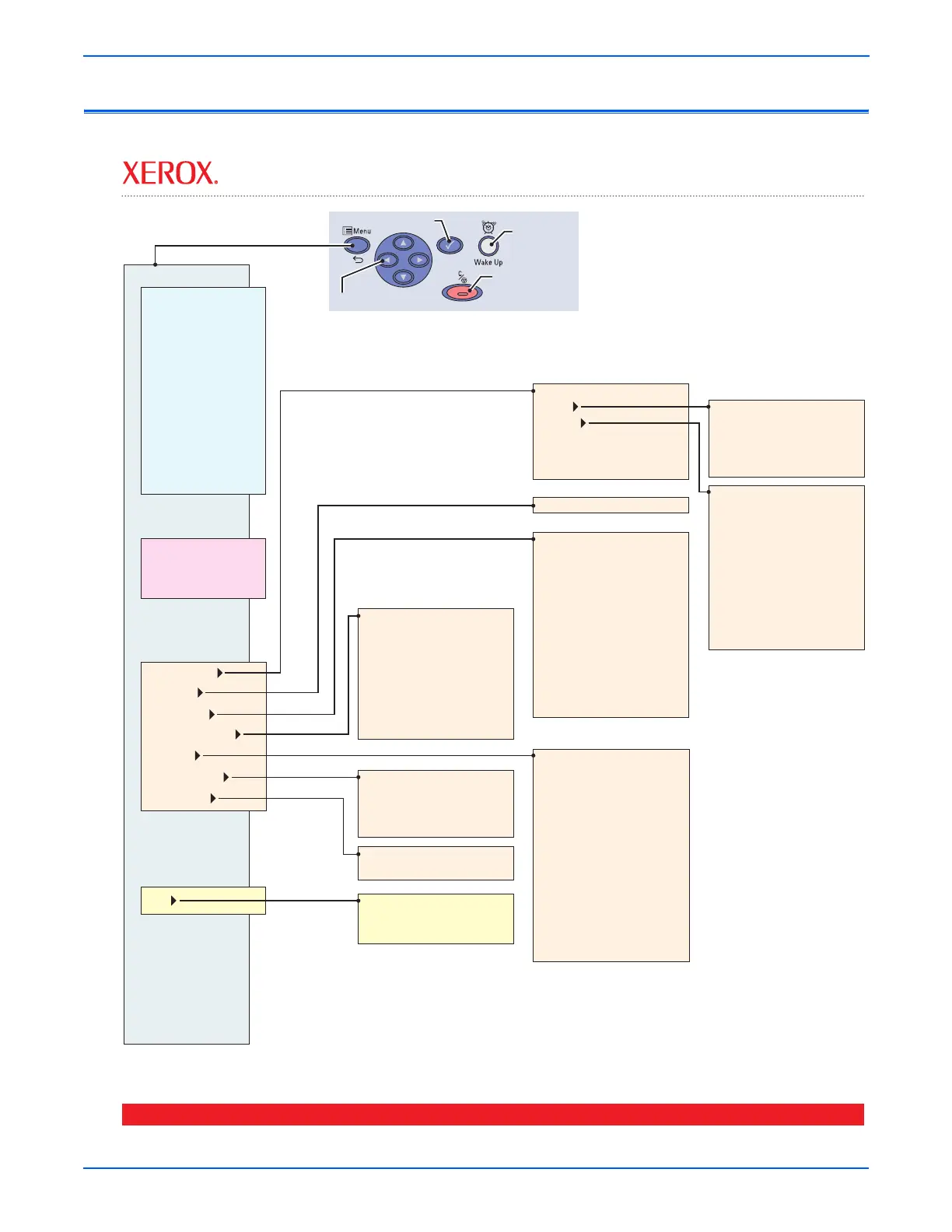

Phaser 6130 Menu Map
Billing Meters
Admin Menu
Information Pages
Requires:
Power Saver
Off
OK
Cancel
Walk-Up Features *
Menu Map
Demo Page
Configuration
PCL Fonts List
PCL Macro List
PS Fonts List
Job History
Error History
Print Meter
Stored Documents*
Adobe Protocol
Network Setup
USB Setup
System Setup
Maintenance Mode
PCL Setup
PostScript Setup
Control Panel
Tray Settings
Tray
Total Impression
Color Impression
Black Impression
Optional Memory
Multi-Protocol Network Card
*
**
Automatic Registration Ad just
Adjust Color Registration
Clean Developer
Toner Refresh
Drum Refresh
Initialize Print Meter
Initialize NVM
Reset Fuser
PS Error Report
PS Job Time-Out
Paper Select Mode
Default Color
Panel Lock
Change Password
Paper Type
Paper Size
Display Popup
Ethernet
TCP/IP
Protocol
Host Access List
Reset Defaults
Adobe Protocol
PowerSaver Time
Audio Tones
Time-Out
Panel Language
Auto Log Print
Print ID
Print Text
RAM Disk*
Size Mismatch
mm /inch
Startup Page
Paper Size
Orientation
Font
Symbol Set
Font Size
Font Pitch
Form Line
Quantity
Image Enhance
Hex Dump
Draft Mode
Line Termination
Default Color
Get IP Address
IP Address
Network Mask
Gateway Address
LPR
Port 9100
IPP**
FTP
NetWare**
SNMP
Email Alerts
CentreWare IS
Bonjour (mDNS)
HTTP-SSL/TLS**
Menus
Phaser
®
6130
Printer
Page 1 of 1
Copyrig ht © 2007 Xerox Corporation . All rights reserved.

Xerox PHASER 6130 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	25 s
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Maximum internal memory	1152 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Media weight (tray 1)	64 - 220 gsm
Multi-Purpose Tray media weight	64 - 164 g/m²
Functions	Print
I/O ports	10/100BaseTX Ethernet, USB 2.0
Device manager	Auto IP, BOOTP/RARP, DHCP, PrintingScout Alert Notification, SNMP v.2, Xerox CentreWare Internet Services Embedded Web Server, Email alerts
Package length	558.79 mm
Depth (imperial)	17.5 \
Width (imperial)	15.75 \
Height (imperial)	15.3 \
Security features	Secure Print
Power requirements	220–240 VAC, 50/60 Hz
Networking features	10/100 Base-TX Ethernet
Color space standard	ICM, ICC, PANTONE Color Approved
Enhanced scan resolution	600 x 600 DPI
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	280 W
Compatible operating systems	Windows 2000/2003 Server/XP/XP Home Edition (SP1 +)/ Vista, Mac OSX 10.2 +, Linux: SUSE 9.2 +/Turbo Linux 10/ Red Hat ES3 +/Fedora Core/Yellow Dog 3.X
Acoustic power emissions (standby)	43 dB
Non-operating relative humidity (non-condensing)	15 - 85 %
Acoustic power emissions (active, print, copy or scan)	64.6 dB
PCL fonts	81
Printer fonts	PCL, PostScript
Country of origin	China
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Number of PostScript fonts	136
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Certification	FCC 15 B, UL 60950-1/CSA 60950-1-03, CE Mark 73/23/EEC, 89/336, EEC, Section 508 ADA
Package width	533.39 mm
Package height	507.99 mm
Package weight	22226.4 g

Weight and Dimensions

Depth	445 mm
Width	400 mm
Height	389 mm
Dimensions (WxDxH)	400 x 394 x 389 mm
