8-56 Phaser 6130 Color Laser Printer Service Manual
Service Parts Disassembly
Fan
(PL8.1.1)
1. Remove the Rear Cover (page 8-18).
2. Unplug the Fan connector (P/J503) on the LVPS Board and release the
Fan harness from the harness restraints on the Fan Duct.
3. Release the four hooks on the Fan Duct that hold the Fan in place, and
remove the Fan from the Fan Duct.

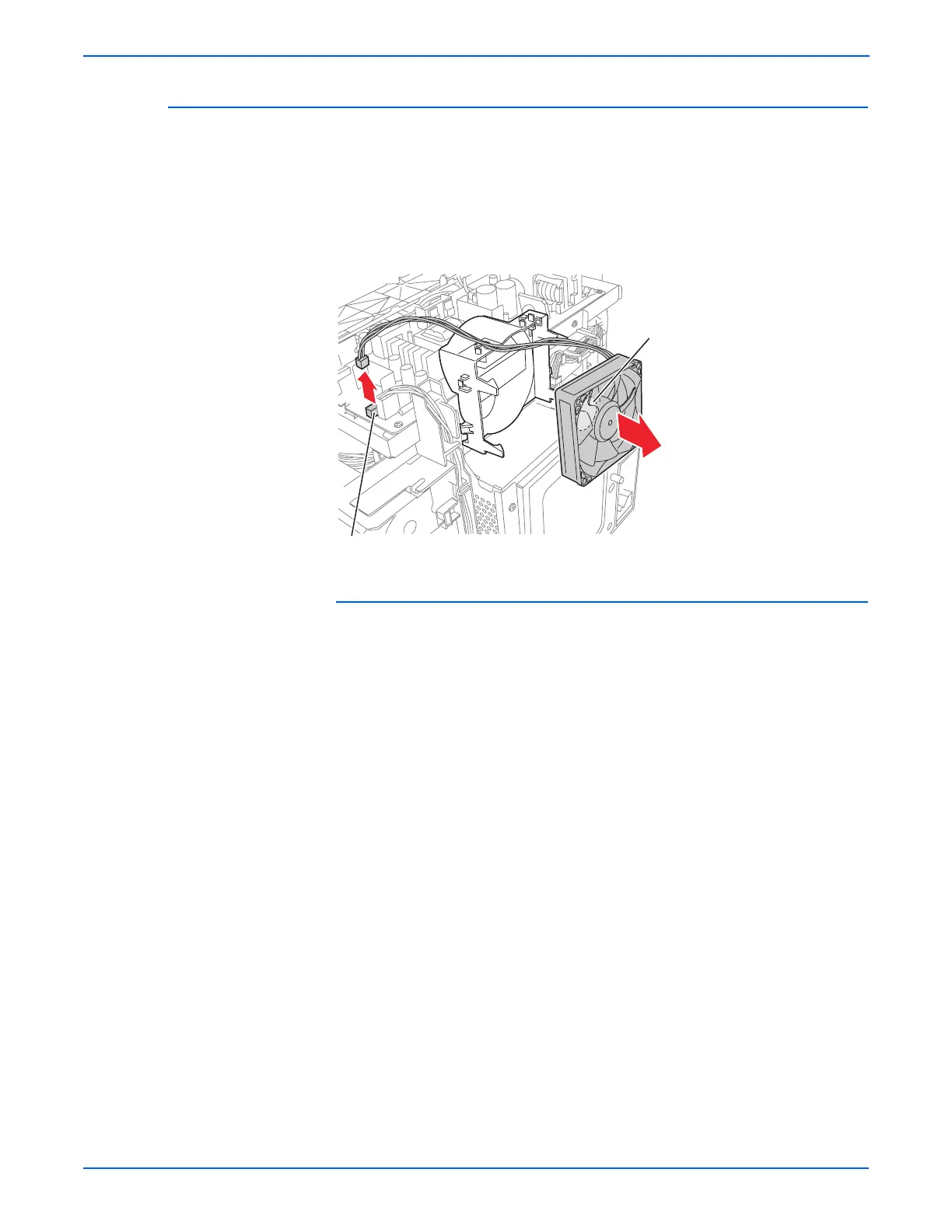

Reassembly Note
When re-installing the fan, be sure that the label faces the inside of the Fan
Duct and that the harness is oriented as shown.
P/J503
s6130-114
Label
To Next Page
