Xerox PHASER 6130 Service Manual

4-6 Phaser 6130 Color Laser Printer Service Manual
General Troubleshooting

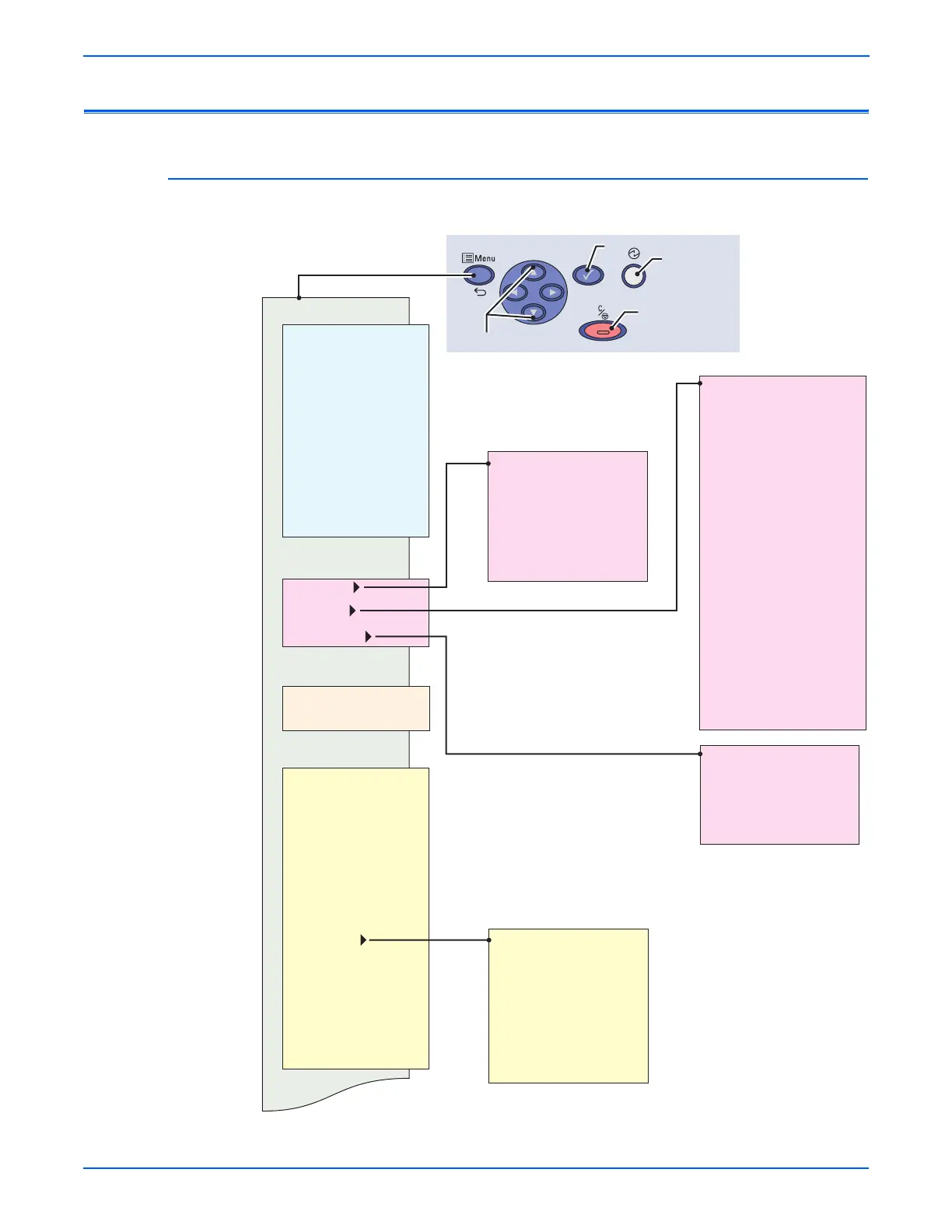

Service Mode Menu Map
Menu Map - Page 1
Engine Diag
Print Info
ESS Diag
Power Saver
On/Off
OK
Exit
Service Mode
All Test
CodeROM Test
FontROM Test
EEPROM Test
DRAM Test
MAC+PHY Test
ASIC Test
PANEL Test
Engine Test
Info Page
Print Settings
Installation
SerialNo.
Tone Correction
Display Counter*
HexDump
Pixel Counter
Configuration*
Counter Type*
Print Counter
CopyCounter MtoB
CopyCounter BtoM
Clear All NVM
Clear JobHistory
Clear AuditronPV*
Sensor Test
Motor Test
NVM Settings
Color Print
B/W Print
Total Print
Color Backup
B/W Backup
Total Backup
Color Error
B/W Error
Edit NVM
Save NVM to ESS
Load NVM from ESS
Initialize Slave
Print NVM Info
Main Motor FULL2
Main Motor FULL1
Main Motor HALF
Sub Motor FULL2
Sub Motor FULL1
Sub Motor HALF
K Mode Solenoid
Tray Feed Solenoid (Half)
Tray Feed Solenoid (Init)
Fan HIGH
Fan LOW
Yellow Toner Motor
Magenta Toner Motor
Cyan Toner Motor
Black Toner Motor
Regi Clutch
Tray Feed Solenoid (Auto)
Drum Erase Lamp K
Drum Erase Lamp YMC
s6130-201
To access Service Mode, press Up and Down Arrows at power ON.
Manual Feed Sensor
Tray No Paper
Regi Sensor
Exit Sensor
K Mode Sensor
Side Switch
Cover Open Sensor
*Not used in this printer

Xerox PHASER 6130 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	25 s
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Maximum internal memory	1152 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Media weight (tray 1)	64 - 220 gsm
Multi-Purpose Tray media weight	64 - 164 g/m²
Functions	Print
I/O ports	10/100BaseTX Ethernet, USB 2.0
Device manager	Auto IP, BOOTP/RARP, DHCP, PrintingScout Alert Notification, SNMP v.2, Xerox CentreWare Internet Services Embedded Web Server, Email alerts
Package length	558.79 mm
Depth (imperial)	17.5 \
Width (imperial)	15.75 \
Height (imperial)	15.3 \
Security features	Secure Print
Power requirements	220–240 VAC, 50/60 Hz
Networking features	10/100 Base-TX Ethernet
Color space standard	ICM, ICC, PANTONE Color Approved
Enhanced scan resolution	600 x 600 DPI
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	280 W
Compatible operating systems	Windows 2000/2003 Server/XP/XP Home Edition (SP1 +)/ Vista, Mac OSX 10.2 +, Linux: SUSE 9.2 +/Turbo Linux 10/ Red Hat ES3 +/Fedora Core/Yellow Dog 3.X
Acoustic power emissions (standby)	43 dB
Non-operating relative humidity (non-condensing)	15 - 85 %
Acoustic power emissions (active, print, copy or scan)	64.6 dB
PCL fonts	81
Printer fonts	PCL, PostScript
Country of origin	China
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Number of PostScript fonts	136
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Certification	FCC 15 B, UL 60950-1/CSA 60950-1-03, CE Mark 73/23/EEC, 89/336, EEC, Section 508 ADA
Package width	533.39 mm
Package height	507.99 mm
Package weight	22226.4 g

Weight and Dimensions

Depth	445 mm
Width	400 mm
Height	389 mm
Dimensions (WxDxH)	400 x 394 x 389 mm
