Xerox PHASER 6130 - Parts List 7.1 Drive

9-18 Phaser 6130 Color Laser Printer Service Manual
Parts List
Parts List 7.1 Drive
Parts List 7.1 Drive

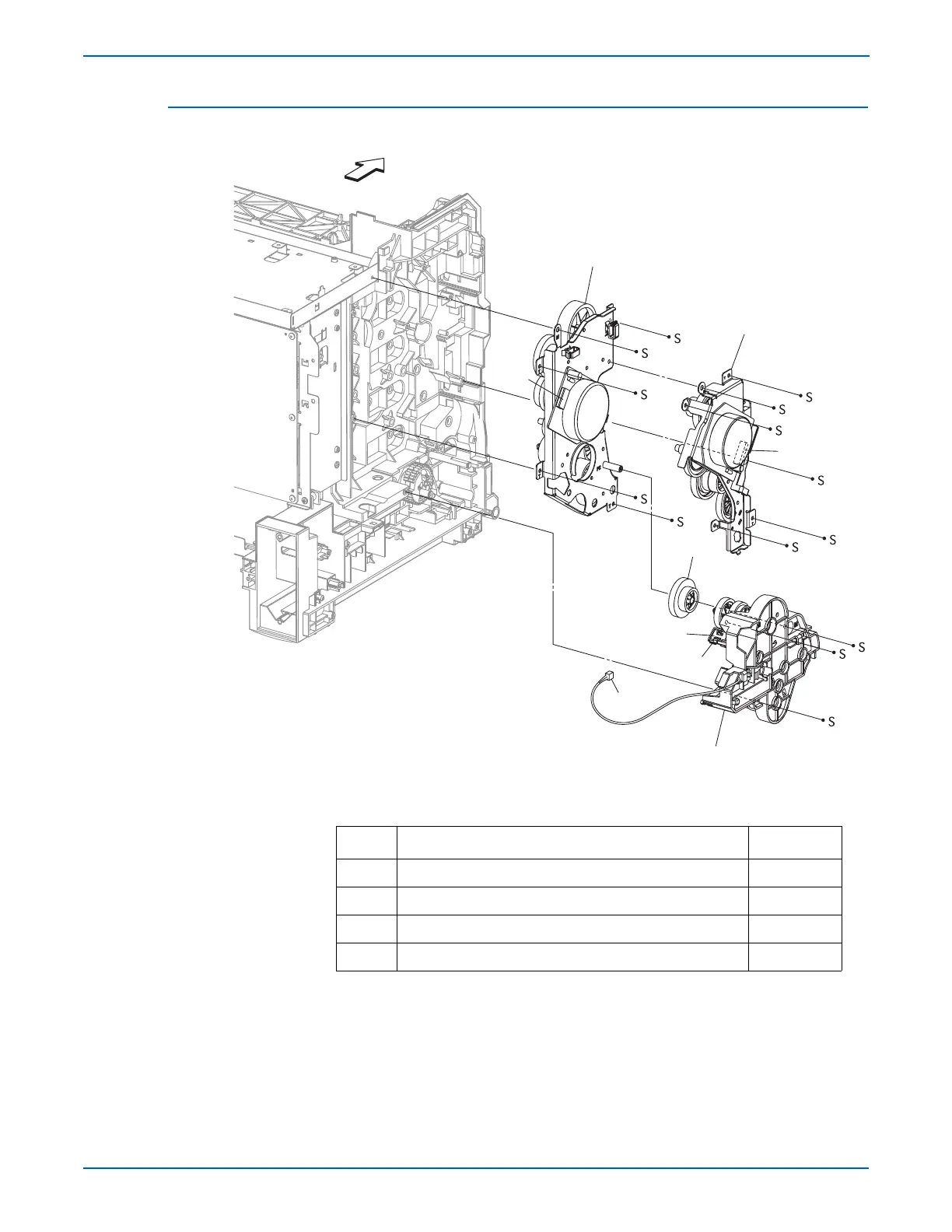

ID No. Name/Description Part Number
1 Drive Assy Sub (Sub Drive Assembly) 007K94691
2 Drive Assy Main (Main Drive Assembly) 007K94685
3 Gear P2 807E15100
4 Drive Assy PH (Feed Drive Assembly) 007K94704
s6130-045
Front
1
2
3
4
(J24)
(P261)
(P221)
(P211)
Color Mode
Switching Sensor
