Phaser 6130 Color Laser Printer Service Manual 2-15
Theory of Operation
Major Assemblies and Functions
Major functional components for the printer are classified into the following
categories based on the printer configuration.
■ Paper Tray
■ Paper Feeder
■ Manual Feed & Registration
■ Transfer Unit and Fuser
■ Laser Unit
■ Toner Cartridge & Dispenser
■ Imaging Unit
■ Drive Assembly
■ Electrical

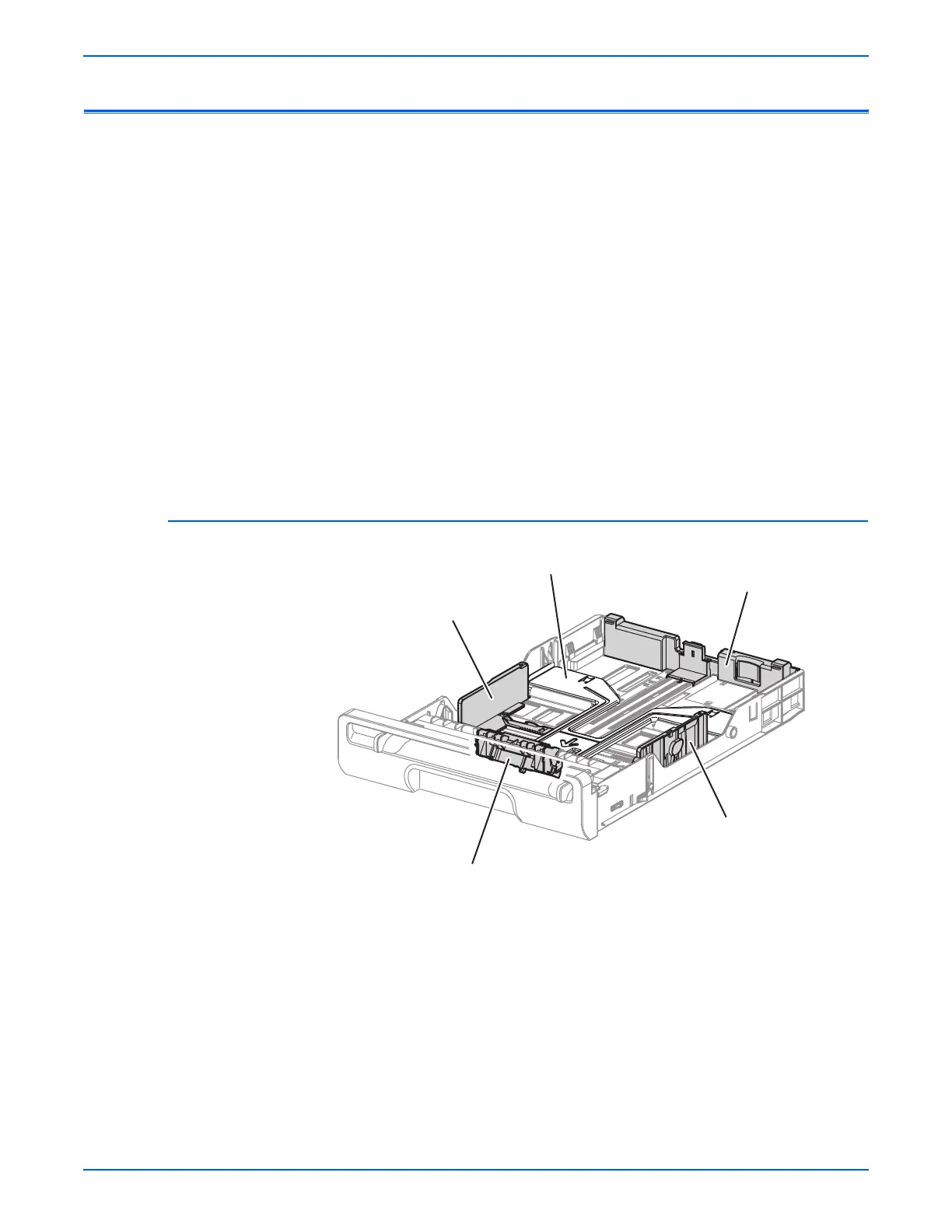

Paper Tray
■ Left/Right Side Guide
The Side Guides move at a right angle to the paper transfer direction to
align the paper width.
■ Separator Roller
The Separator Roller and Feed Roller pinch the paper to prevent multiple
sheets of paper from feeding.
s6130-010
Bottom Plate
Side Guide (L)
Side Guide (R)
End Guide
Separator Roller
To Next Page
