Xerox PHASER 6130 Service Manual

Phaser 6130 Color Laser Printer Service Manual 4-27
General Troubleshooting
Motor Tests
Main Motor FULL2/FULL1/HALF
The Main Motor drives the Transfer Belt and Imaging Unit drums.
Caution
If the front cover will be open for more than 5 minutes, remove the
Imaging Unit and cover it or place it in a dark location to avoid exposure to
light.
N
o
t
e
The rotational speed order of the Main Motor Test is as follows:
■ FULL2 < FULL1 < HALF
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Defeat the Front Cover Interlock Switch.
4. Perform the Main Motor test: Engine Diag > Motor Test > Main Motor
FULL2/FULL1/HALF.

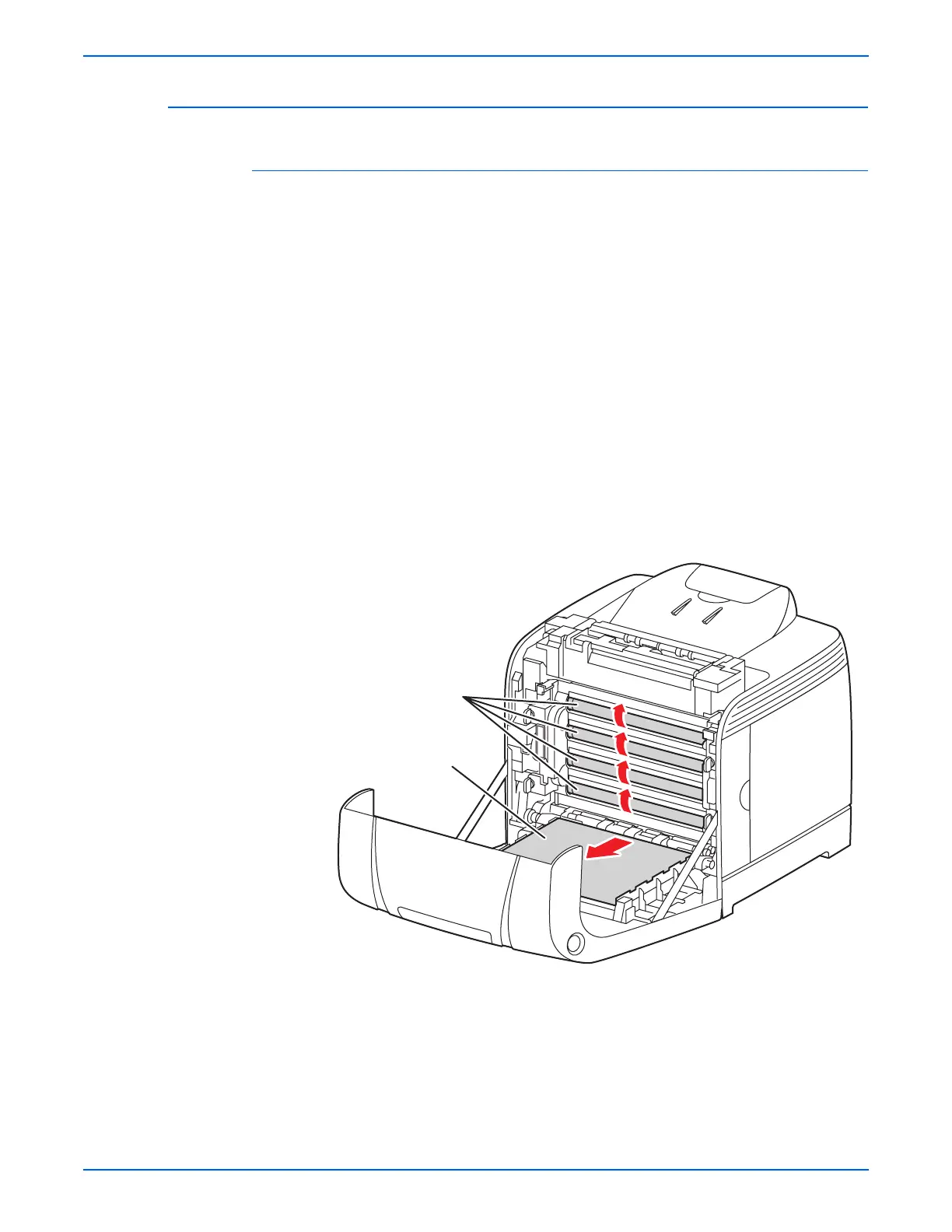

5. Verify that the Main Motor is running, the imaging unit drums are rotating,
and the Transfer Belt is moving.
6. Press the Cancel button to stop the Main Motor test.
7. Remove the cheater from the Interlock Switch.
s6130-191
Drums
Belt

Xerox PHASER 6130 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	25 s
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Maximum internal memory	1152 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Media weight (tray 1)	64 - 220 gsm
Multi-Purpose Tray media weight	64 - 164 g/m²
Functions	Print
I/O ports	10/100BaseTX Ethernet, USB 2.0
Device manager	Auto IP, BOOTP/RARP, DHCP, PrintingScout Alert Notification, SNMP v.2, Xerox CentreWare Internet Services Embedded Web Server, Email alerts
Package length	558.79 mm
Depth (imperial)	17.5 \
Width (imperial)	15.75 \
Height (imperial)	15.3 \
Security features	Secure Print
Power requirements	220–240 VAC, 50/60 Hz
Networking features	10/100 Base-TX Ethernet
Color space standard	ICM, ICC, PANTONE Color Approved
Enhanced scan resolution	600 x 600 DPI
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	280 W
Compatible operating systems	Windows 2000/2003 Server/XP/XP Home Edition (SP1 +)/ Vista, Mac OSX 10.2 +, Linux: SUSE 9.2 +/Turbo Linux 10/ Red Hat ES3 +/Fedora Core/Yellow Dog 3.X
Acoustic power emissions (standby)	43 dB
Non-operating relative humidity (non-condensing)	15 - 85 %
Acoustic power emissions (active, print, copy or scan)	64.6 dB
PCL fonts	81
Printer fonts	PCL, PostScript
Country of origin	China
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Number of PostScript fonts	136
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Certification	FCC 15 B, UL 60950-1/CSA 60950-1-03, CE Mark 73/23/EEC, 89/336, EEC, Section 508 ADA
Package width	533.39 mm
Package height	507.99 mm
Package weight	22226.4 g

Weight and Dimensions

Depth	445 mm
Width	400 mm
Height	389 mm
Dimensions (WxDxH)	400 x 394 x 389 mm
