Xerox PHASER 6130 - Skew

Phaser 6130 Color Laser Printer Service Manual 5-51
Print-Quality Troubleshooting
Skew
The printed image is not parallel with both sides of the paper.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
N
o
t
e
The Tray is recommended for paper feeding because paper fed via the
Manual Feed is prone to skew depending on how the sheet is placed on
Manual Feed.
Troubleshooting Reference Table

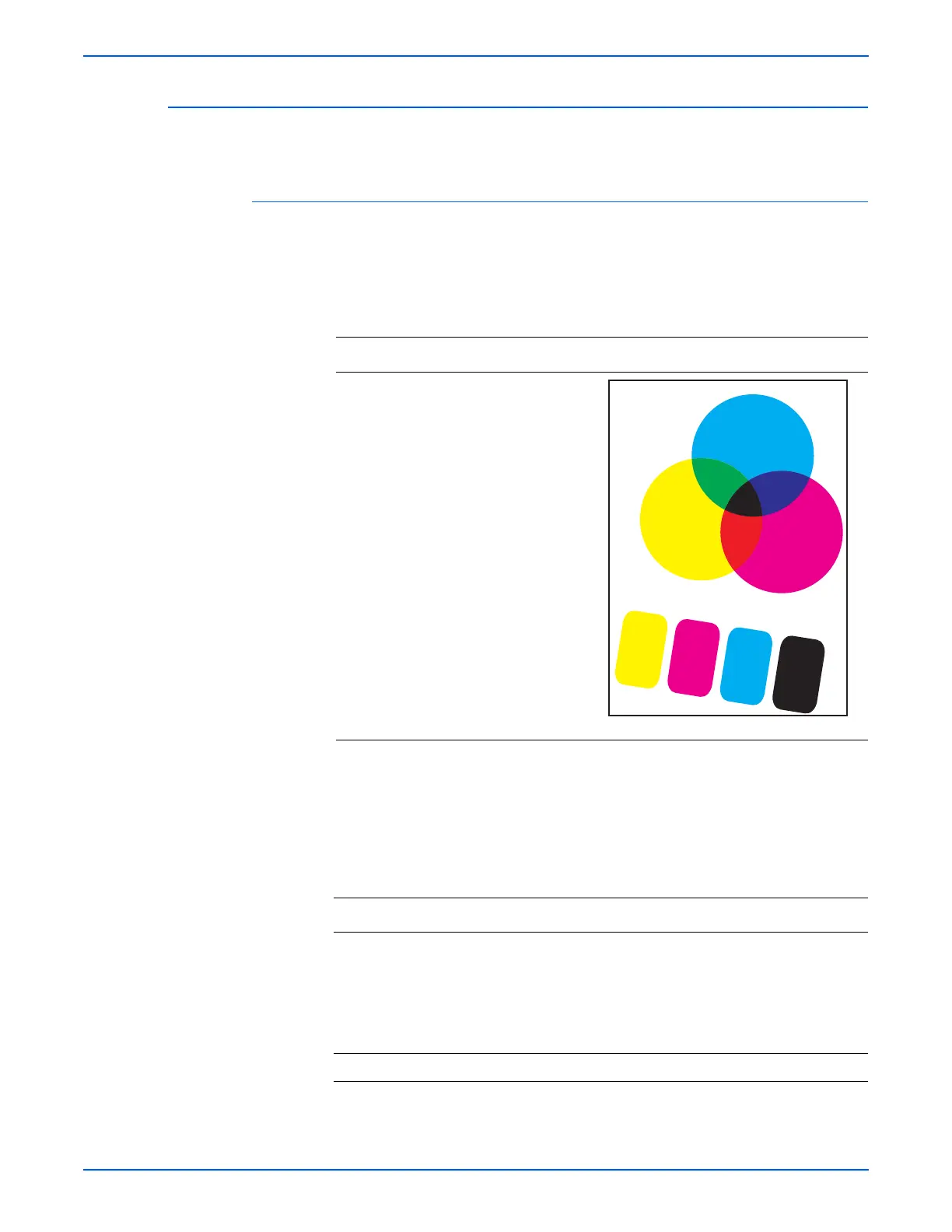

Applicable Notes Example Print
■ Separator Roller Assembly (PL2.1.5)
■ Feed Roller Assembly (PL3.2.4)
■ Registration Roller Assembly
(PL3.2.9)
■ Metal Registration Roller (PL3.2.10)
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Inspect the paper being used.
Is it approved paper?
Go to step 3. Use paper that is
on the list of
papers approved
for the printer,
then go to step
2.
2 Is the image printed correctly? Complete Go to step 3.
ABCDE abcde
12345
s6180-328
