Phaser 6130 Color Laser Printer Service Manual 5-59
Print-Quality Troubleshooting
Color Registration
A printed yellow or black image is not overlapped on a cyan or magenta image
correctly.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Troubleshooting Reference Table

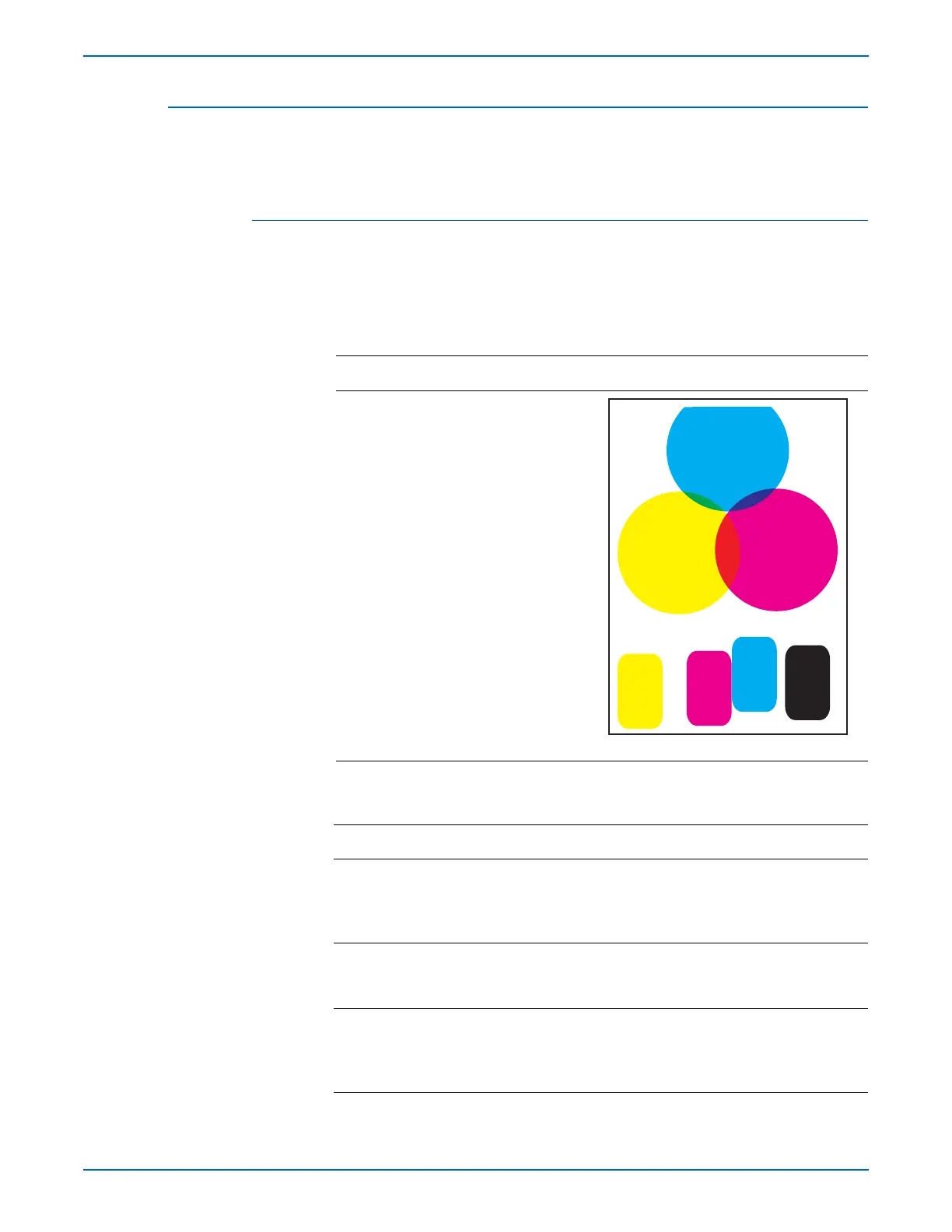

Applicable Notes Example Print
■ Imaging Unit (PL4.1.21)
■ Fuser (PL6.1.1)
■ Transfer Unit (PL6.1.7)
■ MCU Board (PL8.2.13)
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Cycle the printer power OFF, then ON.
Does the mis-registration (color shift)
appear on the printed material when
printing?
Go to step 2. Complete
2 Print the Windows test page.
Is the image printed correctly?
Check the
printing data for
errors.
Go to step 3.
3 Check the paper being used and its
condition.
Is the paper dry and recommended
paper?
Go to step 5. Replace with
dry, approved
paper, then go to
step 4.
ABCDE abcde 12345
s6180-331
