Phaser 6130 Color Laser Printer Service Manual 2-27
Theory of Operation
Toner Cartridge & Dispenser
The Toner Cartridge is a customer replaceable item that includes the following
components:
■ Customer Replaceable Unit Memory (CRUM) Connector
The CRUM Connector reads and writes the CRUM data. Printer specific
information is stored in the CRUM.
■ Dispenser Motor (C/M/Y/K)
The Dispenser Motor provides the drive for the Agitator and Auger in the
Toner Cartridge, and supplies toner to the Developer.

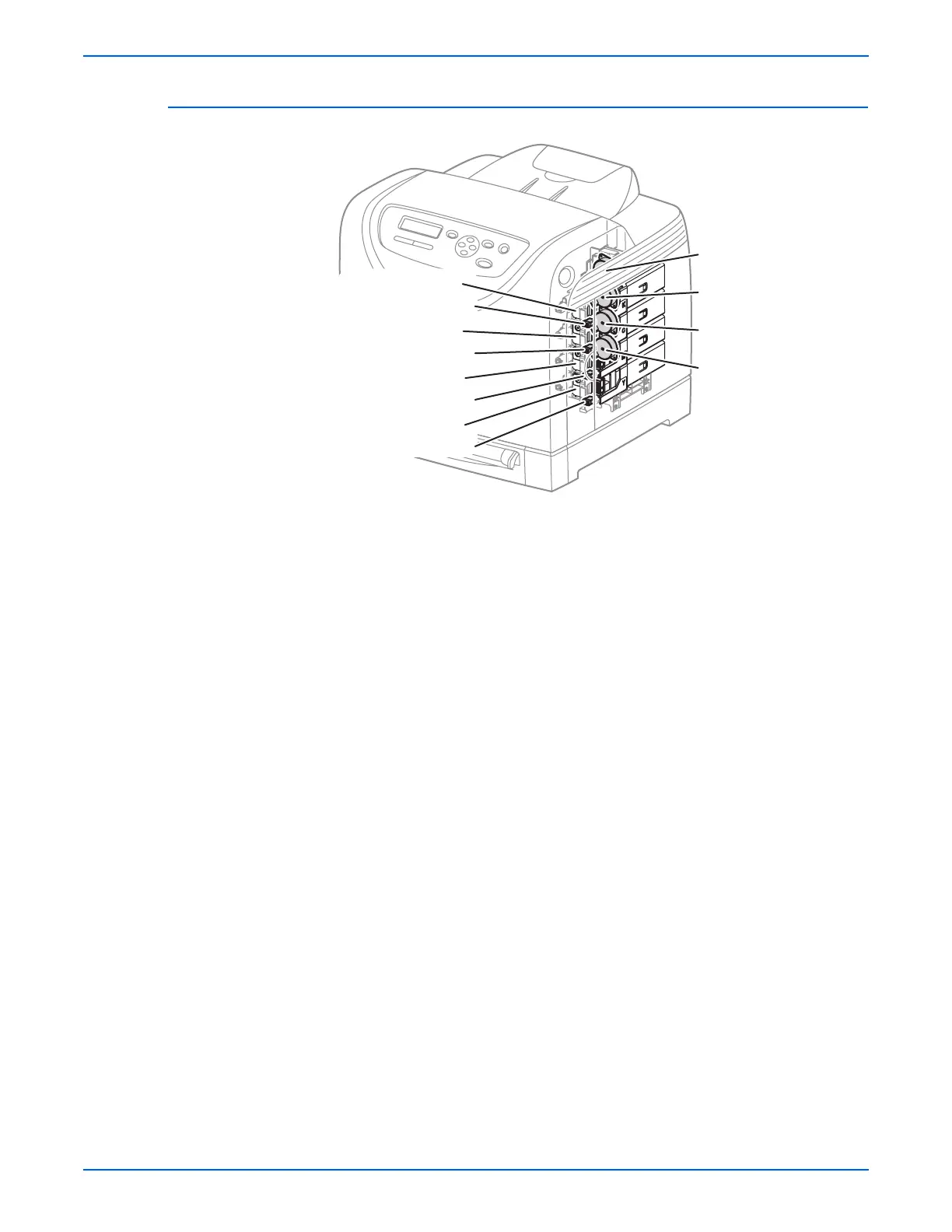

Dispenser Motor (K)
Dispenser Motor (C)
Dispenser Motor (M)
Dispenser Motor (Y)
Toner Cartridge (K)
Toner Cartridge (C)
Toner Cartridge (M)
Toner Cartridge (Y)
CRUM Connector (Y)
CRUM Connector (M)
CRUM Connector (C)
CRUM Connector (K)
s6130-021
