Xerox PHASER 6130 Service Manual

Phaser 6130 Color Laser Printer Service Manual 5-21
Print-Quality Troubleshooting

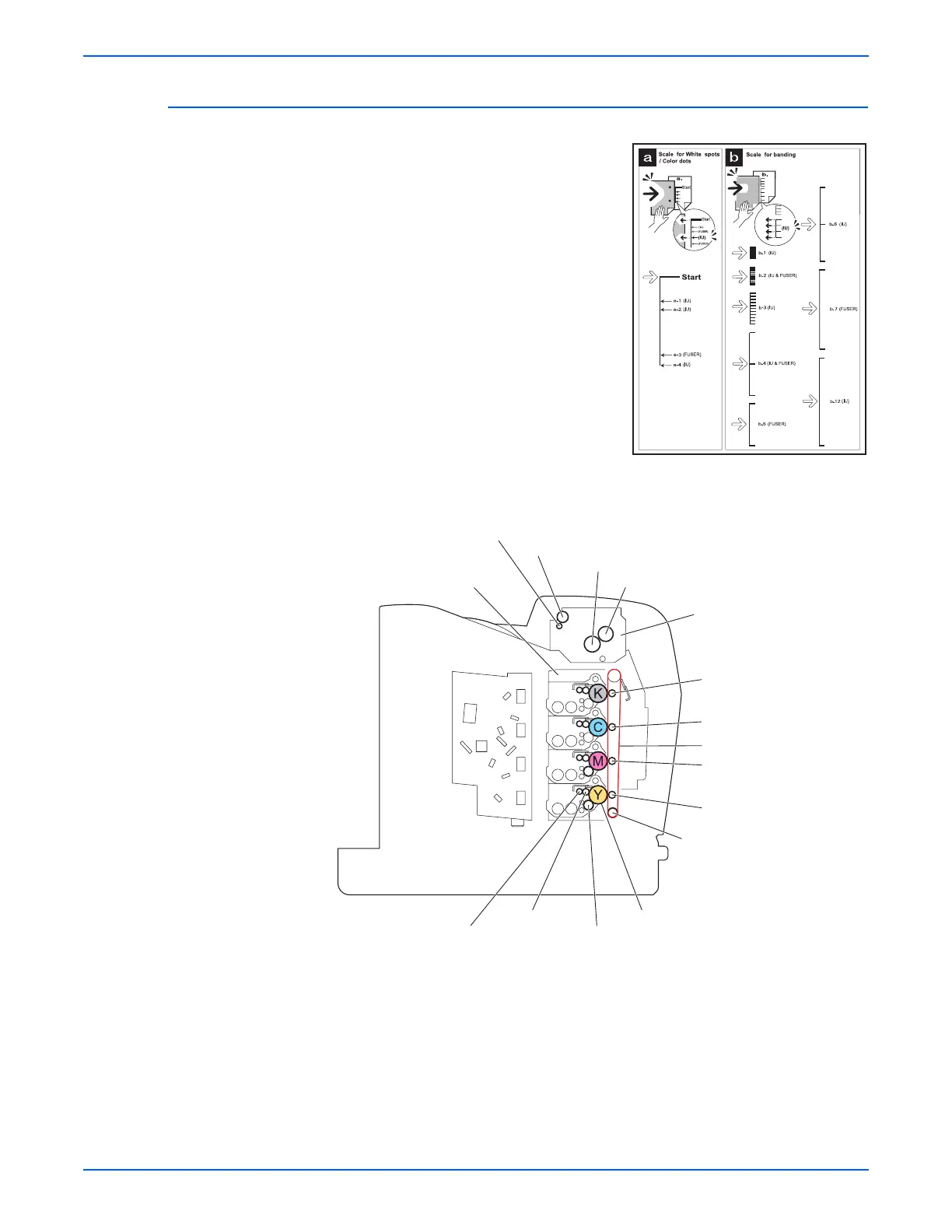

Repeating Defect Measurement
Horizontal lines and/or spots that occur
periodically are usually caused by one of
the printer’s many rollers. However, the
interval does not necessarily match the
circumference of the roller. Compare the
print defect intervals on the test print with
the gauges on the Pitch Chart that can be
printed from the diagnostics in Service
Mode. The problem may be solved easily
by the check.
To print the Pitch Chart, print the
Contamination Check test prints: Service
Mode > Test Print > Contamination
Check.
s6130-218

s6130-212
Exit Roller
Heat Roller
Exit Pinch Roller
Fuser Belt
BTR
Imaging Unit
Drive Roller
Fuser
BTR
BTR
BTR
Drum
BCR Cleaner Roller Magnet Roller
BCR
Transfer Unit
